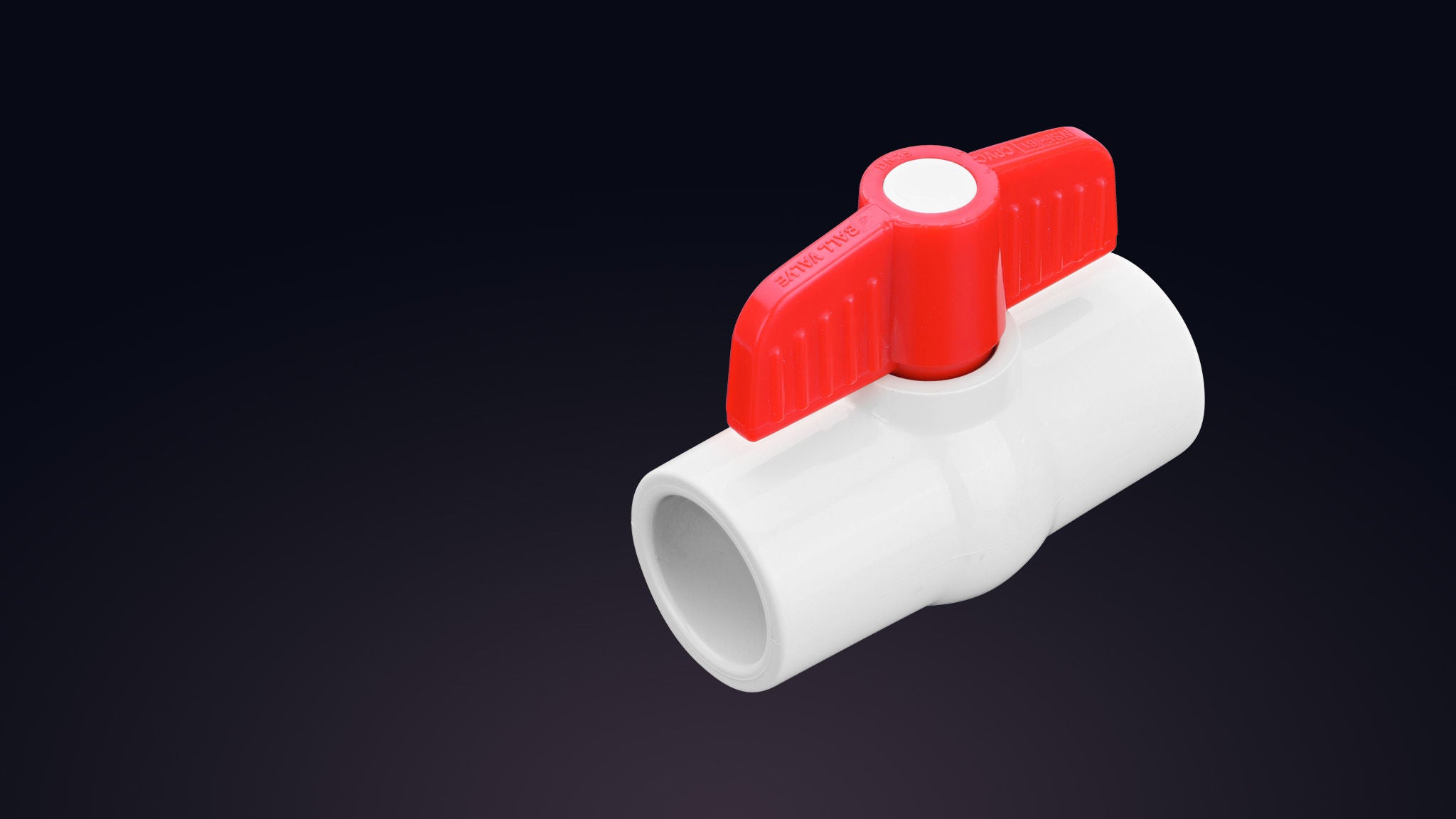

Ball Valves

Ball Valves

Include a shut off point in your pipeline with a ball valve. This leak-resistant valve connects two pipes in an irrigation or other pressurized system and prevents the backflow of water.

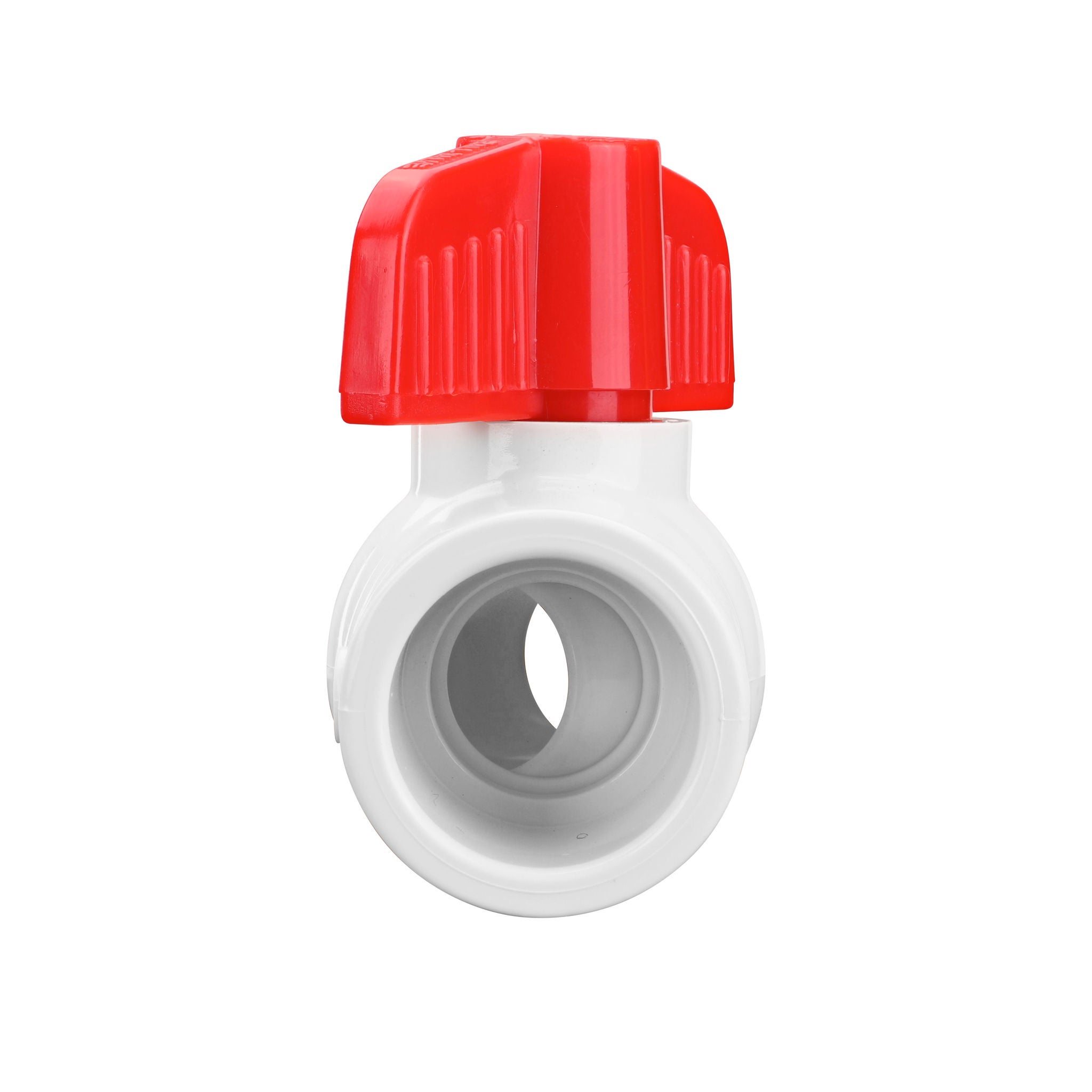

Ball Valve Front View

Key Features

  • Ball valve allows water to flow through while blocking debris; easy to turn handle rotates ball to close valve and prevent water flow
  • Ball valves are available in Molded-In-Place (MIP) and True Union versions
  • MIP ball valves are one-way valves installed in pipe systems to prevent backflow and provide a shut-off point to protect the pipe and other system components
  • True union ball valves form a shut off point in your pipeline that's serviceable; unscrew ends of true union ball valve to remove valve from pipeline for maintenance
  • MIP ball valves are made of chlorinated polyvinyl chloride (CPVC) or polyvinyl chloride (PVC)
  • True union ball valves are made of polyvinyl chloride (PVC)

Applications

  • Directs water flow one-way through pipe when ball valve opens, turn handle to rotate ball and close off pipeline; prevents costly property damage, pipe corrosion, and system issues

  • Use for pool and spa, irrigation, and plumbing installations; works with most PVC or CPVC pipe to transport water and prevent backflow of contaminated water in pressurized systems

  • The ball valve connects to pipe and other system components to allow water to flow through while blocking debris; allows a manual shut-off point in system

Installation & Maintenance

  • MIP ball valve connects to pipe ends; solvent weld with primer and glue

  • True union ball valve has two ends with both slip and threaded connectors; slip ends slide into pipe ends (solvent weld with primer and glue); twist to unscrew ends to reveal threaded ends

  • MIP ball valve performance issues can indicate damage; replace as needed

  • True union ball valve performance issues can indicate damage; valve ends can unscrew to remove valve from pipe line for maintenance

Materials & Sustainability

  • MIP ball valves are made of chlorinated polyvinyl chloride (CPVC) or polyvinyl chloride (PVC)

  • True union ball valves are made of polyvinyl chloride (PVC)

  • Teflon ball seat; EPDM O-ring; ABS handle

  • Onsite flow management protects pipe systems from backflow which can lead to corrosion of pipes, property damage, and issues with the flow system

Product Models

Part Number
Description
E1310-05PVC Ball Valve, 1/2 in. IPS S X S, White
E1410-05PVC Ball Valve, 1/2 in. IPS S X S, White
E1610-05PVC Ball Valve, 1/2 in. IPS S X S, Gray
E1320-05PVC Ball Valve, 1/2 in. IPS FPT X FPT, White
E1420-05PVC Ball Valve, 1/2 in. IPS FPT X FPT, White
E1620-05PVC Ball Valve, 1/2 in. IPS FPT X FPT, Gray
E1310-07PVC Ball Valve, 3/4 in. IPS S X S, White
E1410-07PVC Ball Valve, 3/4 in. IPS S X S, White
E1610-07PVC Ball Valve, 3/4 in. IPS S X S, Gray
E1320-07PVC Ball Valve, 3/4 in. IPS FPT X FPT, White
E1420-07PVC Ball Valve, 3/4 in. IPS FPT X FPT, White
E1620-07PVC Ball Valve, 3/4 in. IPS FPT X FPT, Gray
E1310-10PVC Ball Valve, 1 in. IPS S X S, White
E1410-10PVC Ball Valve, 1 in. IPS S X S, White
E1610-10PVC Ball Valve, 1 in. IPS S X S, Gray
E1320-10PVC Ball Valve, 1 in. IPS FPT X FPT, White
E1420-10PVC Ball Valve, 1 in. IPS FPT X FPT, White
E1620-10PVC Ball Valve, 1 in. IPS FPT X FPT, Gray
E1310-12PVC Ball Valve, 1-1/4 in. IPS S X S, White
E1410-12PVC Ball Valve, 1-1/4 in. IPS S X S, White
E1610-12PVC Ball Valve, 1-1/4 in. IPS S X S, Gray
E1320-12PVC Ball Valve, 1-1/4 in. IPS FPT X FPT, White
E1420-12PVC Ball Valve, 1-1/4 in. IPS FPT X FPT, White
E1620-12PVC Ball Valve, 1-1/4 in. IPS FPT X FPT, Gray
E1310-15PVC Ball Valve, 1-1/2 in. IPS S X S, White
E1410-15PVC Ball Valve, 1-1/2 in. IPS S X S, White
E1610-15PVC Ball Valve, 1-1/2 in. IPS S X S, Gray
E1320-15PVC Ball Valve, 1-1/2 in. IPS FPT X FPT, White
E1420-15PVC Ball Valve, 1-1/2 in. IPS FPT X FPT, White
E1620-15PVC Ball Valve, 1-1/2 in. IPS FPT X FPT, Gray
E1310-20PVC Ball Valve, 2 in. IPS S X S, White
E1410-20PVC Ball Valve, 2 in. IPS S X S, White
E1610-20PVC Ball Valve, 2 in. IPS S X S, Gray
E1320-20PVC Ball Valve, 2 in. IPS FPT X FPT, White
E1420-20PVC Ball Valve, 2 in. IPS FPT X FPT, White
E1620-20PVC Ball Valve, 2 in. IPS FPT X FPT, Gray
E1310-25PVC Ball Valve, 2-1/2 in. IPS S X S, White
E1410-25PVC Ball Valve, 2-1/2 in. IPS S X S, White
E1310-30PVC Ball Valve, 3 in. IPS S X S, White
E1410-30PVC Ball Valve, 3 in. IPS S X S, White
E1320-30PVC Ball Valve, 3 in. IPS FPT X FPT, White
E1310-40PVC Ball Valve, 4 in. IPS S X S, White
E1410-40PVC Ball Valve, 4 in. IPS S X S, White
E1320-40PVC Ball Valve, 4 in. IPS FPT X FPT, White
E1310-60PVC Ball Valve, 6 in. IPS S X S, White
E1610-60PVC Ball Valve, 6 in. IPS S X S, Gray

Part Number
Description
C1310-05CPVC Ball Valve, 1/2 in. CTS S X S, Tan
C1310-07CPVC  Ball Valve, 3/4 in. CTS S X S, Tan
C1310-10CPVC Ball Valve, 1 in. CTS S X S, Tan
C1310-12CPVC Ball Valve, 1-1/4 in. CTS S X S, Tan
C1310-15CPVC Ball Valve, 1-1/2 in. CTS S X S, Tan
C1310-20CPVC Ball Valve, 2 in. CTS S X S, Tan

Part Number
Description
BTU-0750-EPVC True Union Ball Valve, 3/4 in. IPS Slip & Threaded X Slip & Threaded
BTU-1000-EPVC True Union Ball Valve, 1 in. IPS Slip & Threaded X Slip & Threaded
BTU-1250-EPVC True Union Ball Valve, 1-1/4 in. IPS Slip & Threaded X Slip & Threaded
BTU-1500-EPVC True Union Ball Valve, 1-1/2 in. IPS Slip & Threaded X Slip & Threaded
BTU-2000-EPVC True Union Ball Valve, 2 in. IPS  Slip & Threaded X Slip & Threaded
BTU-2500-SEPVC True Union Ball Valve, 2-1/2 in. IPS S X S
BTU-2500-TEPVC True Union Ball Valve, 2-1/2 in. IPS FPT X FPT
BTU-3000-SEPVC True Union Ball Valve, 3 in. IPS S X S
