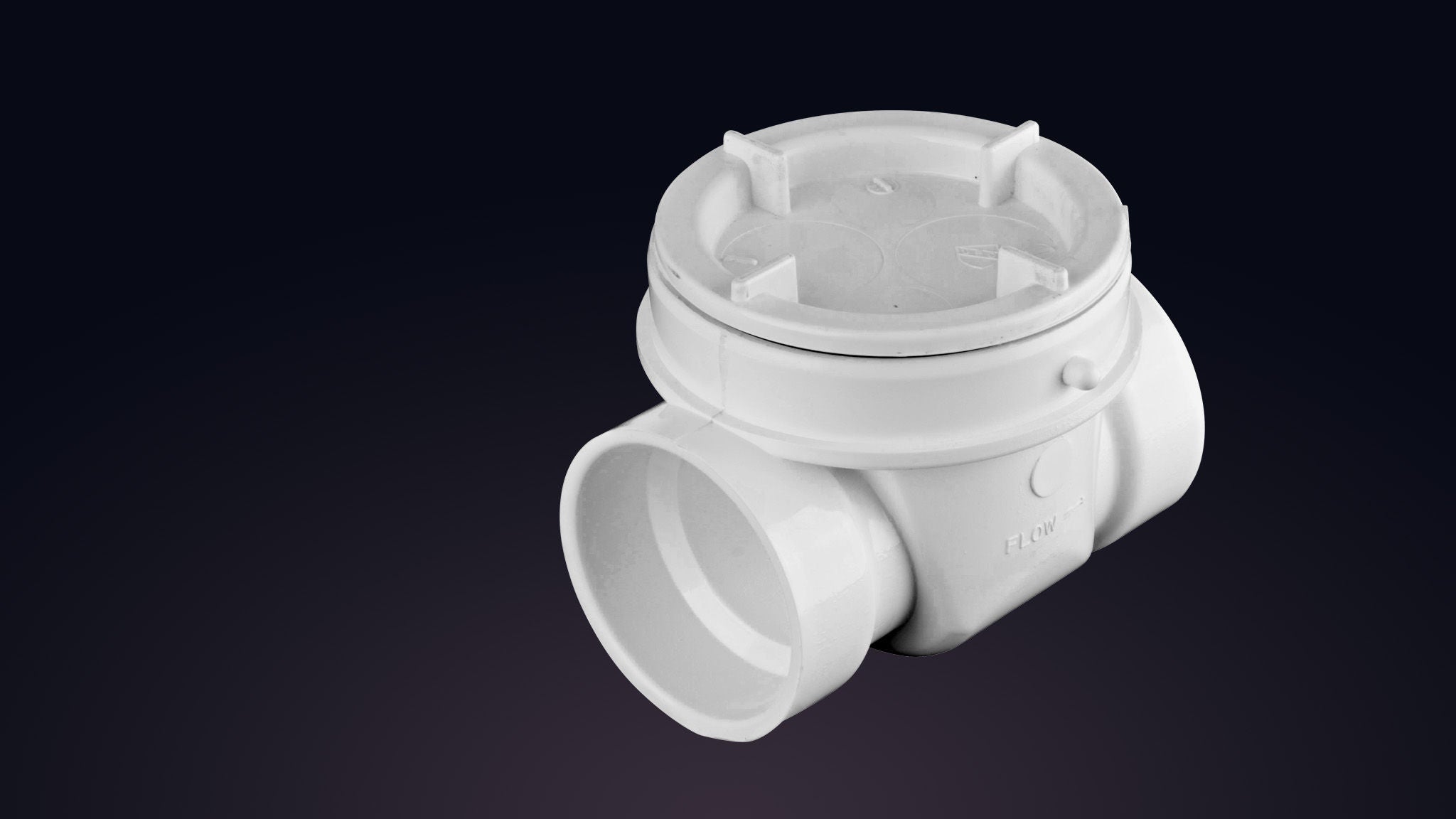

Backwater Valves

Backwater Valves

Prevent street sewer waste from backflowing into basements or low areas with the backwater valve. Valve is lightweight and easy to install. Horizontal installation required; arrows on valve hub point in the direction of water flow.
Alt Text Goes Here

Key Features

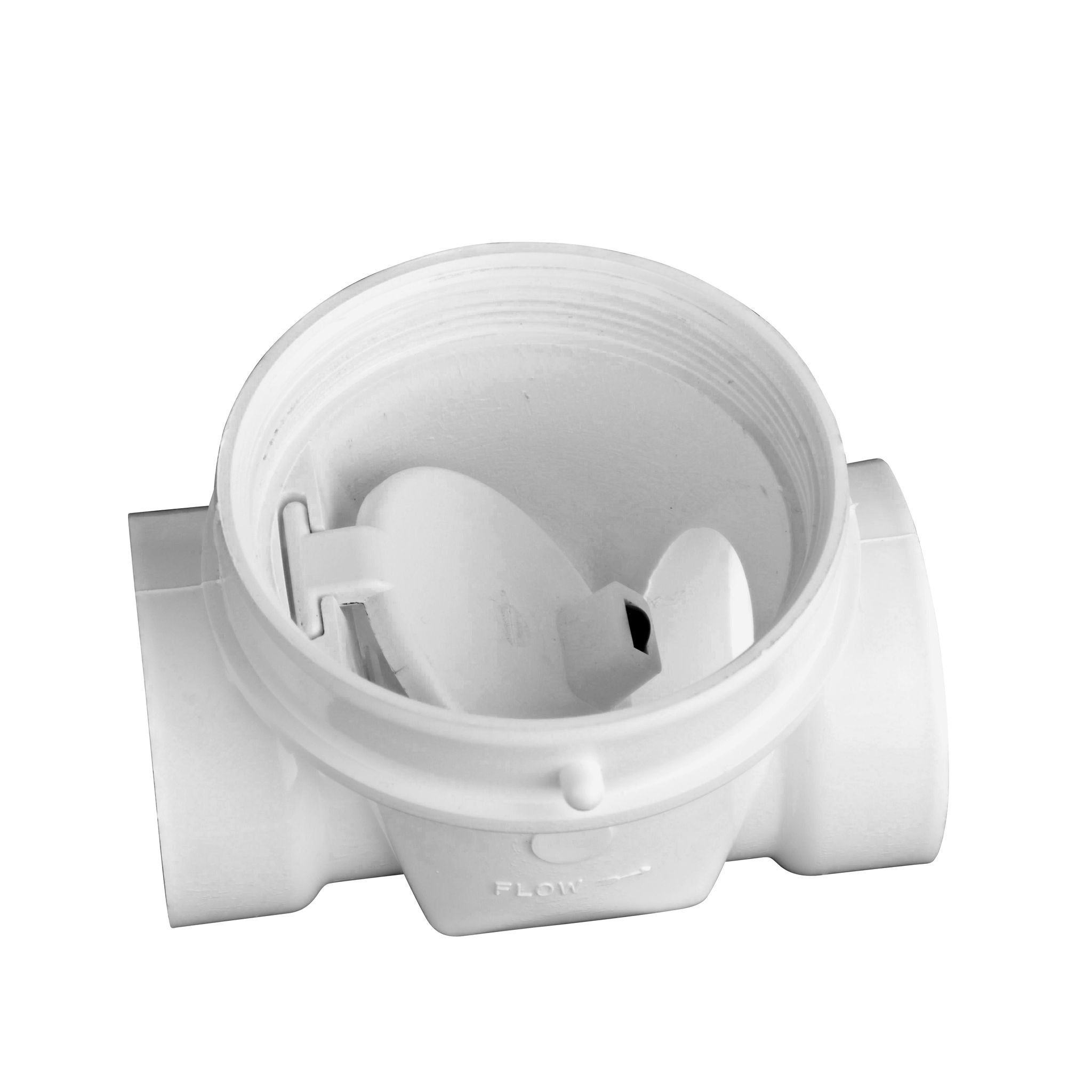

  • Backwater valves have a quick action flapper to allow unrestricted uni-directional flow
  • NDS offers 2 in. – 6 in. PVC or ABS backwater valves and 4 in. PVC or ABS diverter valves
  • Backwater valves are a chemically resistant alternative to cast iron valves
  • Diverter valves direct flow one-way to individual or multiple septic tank leach fields; valve stem is used to divert flow through limited outlets - remove stem to allow flow through all outlets
  • Both backwater and diverter valves are made of polyvinyl chloride (PVC) or acrylonitrile butadiene styrene (ABS)

Applications

  • Use backwater valves for low basement areas and sewage system installations; works with most DWV pipe to transport waste and prevent backflow in pressurized systems

  • Use diverter valves for septic tank leach fields and sewage system installations

Installation & Maintenance

  • Backwater valve has two ends that connect to DWV pipe; need solvent cement to keep in place

  • Diverter valve has four ends that connect to sewer and drain pipe; need solvent cement to keep in place

  • Valve performance issues can indicate damage or clogging; service or replace as needed

Materials & Sustainability

  • Both backwater and diverter valves are made of polyvinyl chloride (PVC) or acrylonitrile butadiene styrene (ABS)

  • Backwater valve flapper gasket is made of elastomeric material; access cap gasket is made of neoprene material

  • Onsite flow management protects pipe systems from backflow which can lead to corrosion of pipes, property damage, and issues with the flow system

Product Models

Part Number
Description
275ABS Backwater Valve, 2 in., Black
375ABS Backwater Valve, 3 in., Black
475ABS Backwater Valve, 4 in., Black
675ABS Backwater Valve, 6 in., Black
275PPVC Backwater Valve, 2 in., White
275PRPVC Backwater Valve with Riser and Cover, 2 in., White
375PPVC Backwater Valve, 3 in., White
375PRPVC Backwater Valve with Riser and Cover, 3 in., White
475PPVC Backwater Valve, 4 in., White
475PRPVC Backwater Valve with Riser and Cover, 4 in., White
475PSPVC Backwater Valve with Adapter, 4 in., White
675PPVC Backwater Valve, 6 in., White
1530603PVC Backwater Valve Flapper, 6 in., White

575ABS Diverter Valve, 4 in., Black
575PPVC Diverter Valve, 4 in., White
