NDS Standard Series Valve Boxes

Standard Series Valve Boxes

Standard series valve boxes are ideal for residential or commercial use. Boxes feature a double wall at the top cover seat area, with structural support ribs on the underside of the seat.

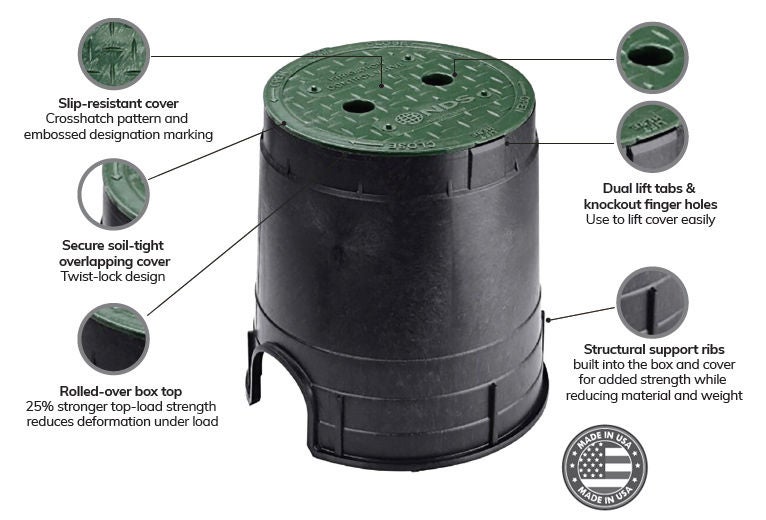

Key Features

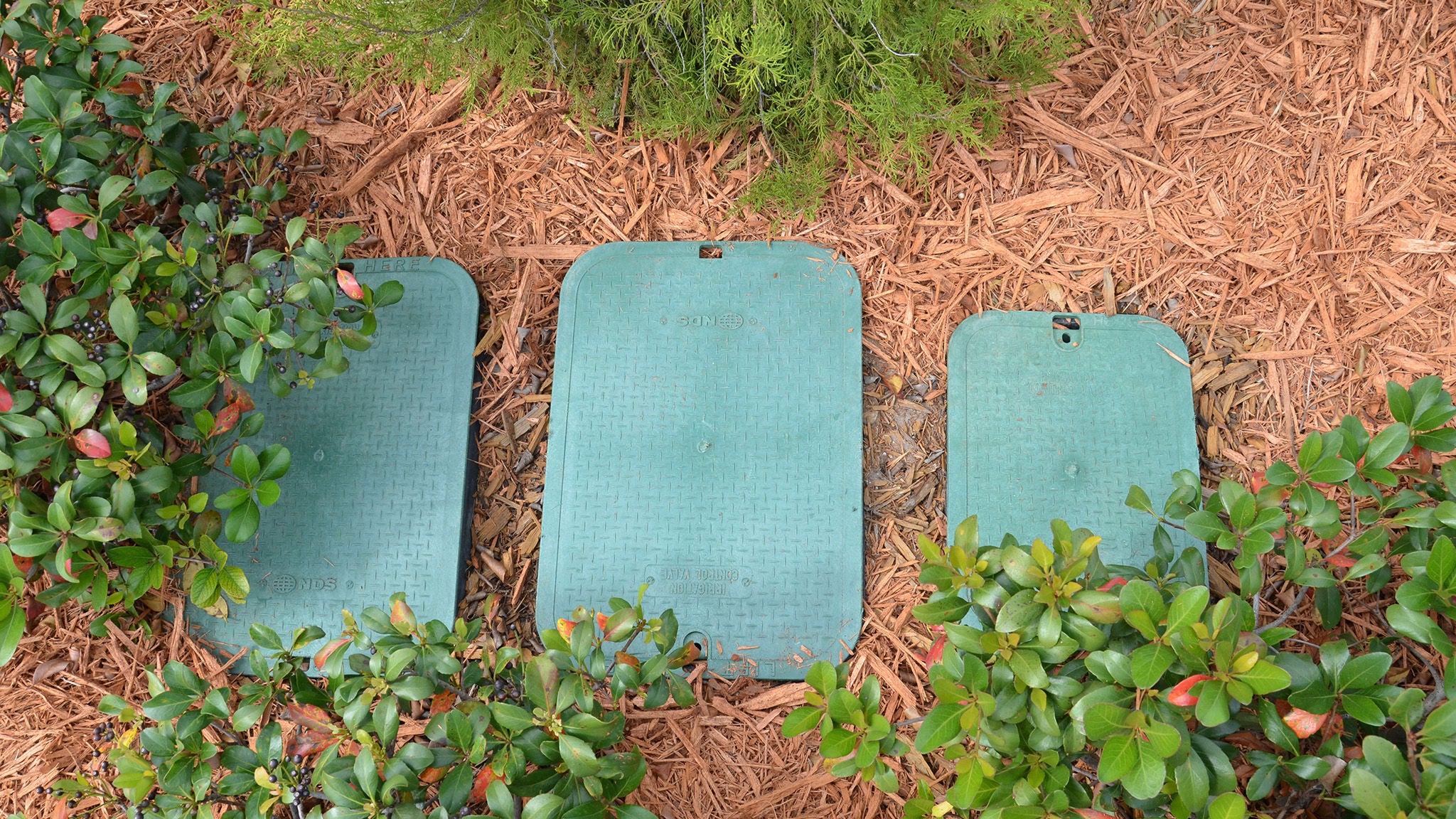

  • Conceal and protect irrigation components without cluttering the landscape
  • Built to last with structural reinforcing ribs for durability; load rated to withstand pedestrian traffic and the rigors of lawn care equipment
  • Overlapping cover prevents dirt and grass from settling in between body and cover; drop-in cover also available
  • Built-in pipe holes allow irrigation piping to pass through the wall of the box so that the box does not rest on the pipe.
  • Select models feature the patented Universal Locking Mechanism (ULM) which enables the valve box lid to be secured without requiring a traditional nut; works with a variety of bolts and screws

Applications

  • Protect irrigation system components from the elements, foot traffic, lawncare equipment, and potential vandalism, and keep them out of sight

  • Fits over valves, control zone kits, and other irrigation accessories

  • Use to protect irrigation system components

Installation & Maintenance

  • Dig to allow for enough depth so the cover is flush with the surface; connect valve(s) and piping; add gravel for drainage before placing the box and cover in place

  • Periodically check for damage and replace as needed

Materials & Sustainability

  • Box made of polypropylene (PP) or high-density polyethylene (HDPE) treated with UV inhibitors

  • Cover made of polypropylene (PP) or high-density polyethylene (HDPE) treated with UV inhibitors

  • Made in the USA

Product Models

Part Number
Description
106B6 in. Round Standard Series Valve Box for Snap-in Cover, 8-5/8 in. Height, Black
107B6 in. Round Standard Series Valve Box, 9 in. Height, Black
107BC6 in. Round Standard Series Valve Box and Cover, 9 in. Height, Black Box, Green ICV Cover
107BC CTN6 in. Round Standard Series Valve Box and Cover, 9 in. Height, Black Box, Green ICV Cover, 4-Pack
107BC BLK6 in. Round Standard Series Valve Box and Cover, 9 in. Height, Black Box, Black ICV Cover
107BC SAND AR6 in. Round Standard Series Valve Box and Cover, 9 in. Height, Sand Box, Sand ICV Cover, Arabic
107BC SLV6 in. Round Standard Series Valve Box and Cover, 9 in. Height, Black Box, Green ICV Cover, 20-Pack
107BCH6 in. Round Standard Series Valve Box and Snap-in Cover, 8-5/8 in. Height, Black Box, Green ICV Cover
107BCR6 in. Round Standard Series Valve Box and Cover, 9 in. Height, Black Box, Purple Reclaimed Water Cover
107BCR BLK6 in. Round Standard Series Valve Box and Cover, 9 in. Height, Black Box, Black Reclaimed Water Cover
107BCS6 in. Round Standard Series Valve Box and Cover, 9 in. Height, Black Box, Green Sewer Cover

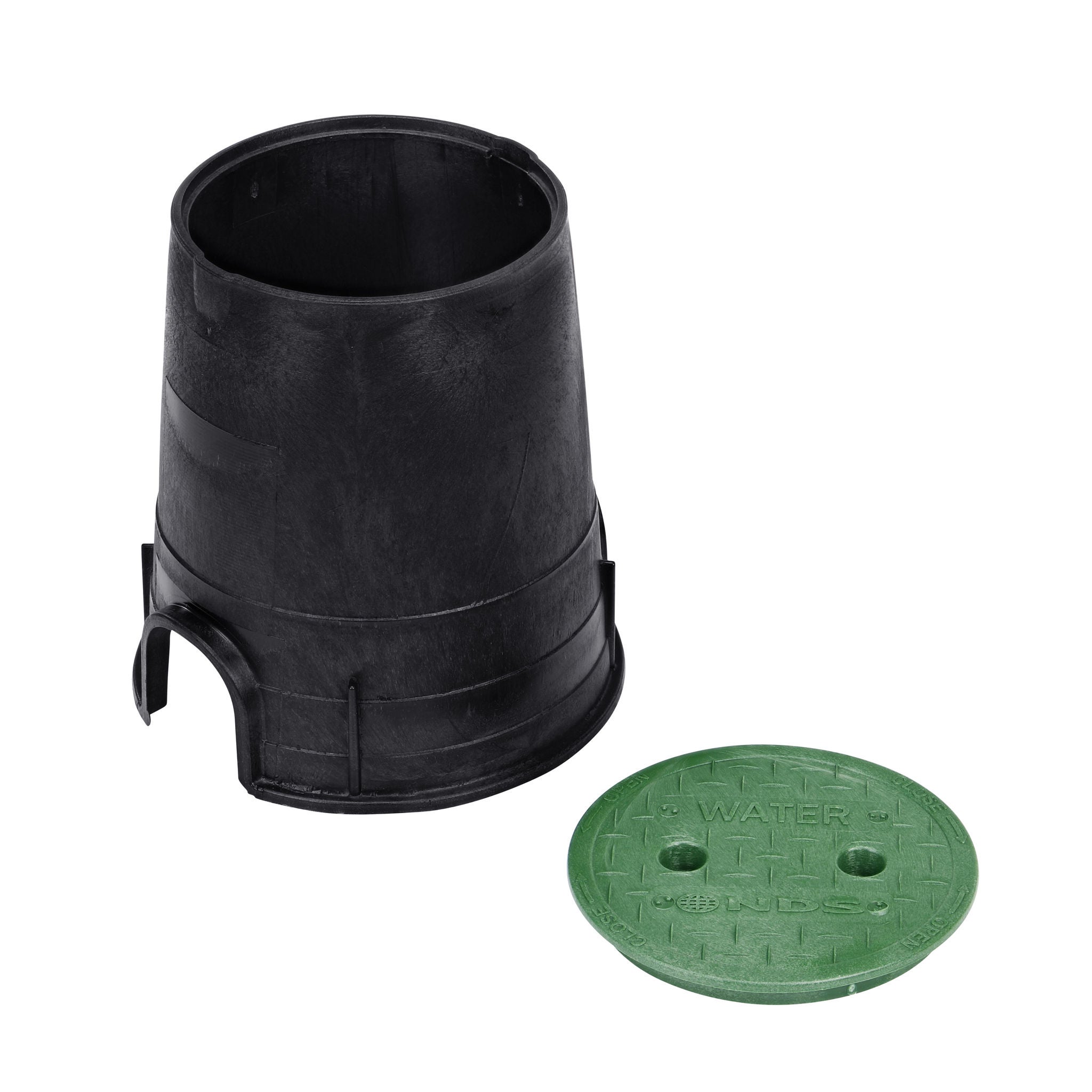

107BCW6 in. Round Standard Series Valve Box and Cover, 9 in. Height, Black Box, Green Water Cover
107CH6 in. Round Standard Series Valve Box Snap-in Cover, Green ICV
107C6 in. Round Standard Series Valve Box Cover, Green ICV
107C BLK6 in. Round Standard Series Valve Box Cover, Black ICV
107C BRN6 in. Round Standard Series Valve Box Cover, Brown ICV
107C SAND6 in. Round Standard Series Valve Box Cover, Sand ICV
107CR6 in. Round Standard Series Valve Box Cover, Purple Reclaimed Water
107CS6 in. Round Standard Series Valve Box Cover, Green Sewer
107CW6 in. Round Standard Series Valve Box Cover, Green Water
107PBCR6 in. Round Standard Series Valve Box and Cover, 9 in. Height, Purple Box, Purple Reclaimed Water Cover
108B6 in. Round Standard Series Valve Box, 9 in. Height, Green
108BC6 in. Round Standard Series Valve Box, 9 in. Height, Green Box, Green ICV Cover
108BCS6 in. Round Standard Series Valve Box, 9 in. Height, Green Box, Green Sewer Cover
108BCW6 in. Round Standard Series Valve Box, 9 in. Height, Green Box,  Green Water Cover
107BC SAND6 in. Round Standard Series Valve Box and Cover, 9 in. Height, Sand Box, Sand ICV Cover

Part Number
Description
111BBStainless Steel Bolt, 1-3/4 in. X 5/16 in.
111B10 in. Round Standard Series Valve Box, 10 in. Height, Black
111BC10 in. Round Standard Series Valve Box and Cover, 10 in. Height, Black Box, Green ICV Cover
111BC BLK10 in. Round Standard Series Valve Box and Cover, 10 in. Height, Black Box, Black ICV Cover
111BC SAND10 in. Round Standard Series Valve Box and Cover, 10 in. Height, Sand Box, Sand ICV Cover
111BCB10 in. Round Standard Series Valve Box and Cover, 10 in. Height, Black Box, Green ICV Cover, Includes Bolt
111BCBW10 in. Round Standard Series Valve Box and Cover, 10 in. Height, Black Box, Black Water Cover, Includes Bolt
111BCF10 in. Round Standard Series Valve Box and Cover, 10 in. Height, Black Box, Green Fiber Cover
111BCR10 in. Round Standard Series Valve Box and Cover, 10 in. Height, Black Box, Purple Reclaimed Water Cover
111BCR BLK10 in. Round Standard Series Valve Box and Cover, 10 in. Height, Black Box, Black Reclaimed Water Cover
111BCS10 in. Round Standard Series Valve Box and Cover, 10 in. Height, Black Box, Green Sewer Cover
111BCW10 in. Round Standard Series Valve Box and Cover, 10 in. Height, Black Box, Black Water Cover
111BC AR10 in. Round Standard Series Valve Box and Cover, 10 in. Height, Black Box, Green ICV Cover, Arabic
111BC CTN10 in. Round Standard Series Valve Box and Cover, 10 in. Height, Black Box, Green ICV Cover, 4-Pack
111BC SAND AR10 in. Round Standard Series Valve Box and Cover, 10 in. Height, Sand Box, Sand ICV Cover, Arabic
111PBCR10 in. Round Standard Series Valve Box and Cover, 10 in. Height, Purple Box, Purple Reclaimed Water Cover
111C10 in. Round Standard Series Valve Box Cover, Green ICV
111C BLK10 in. Round Standard Series Valve Box Cover, Black ICV
111C BRN10 in. Round Standard Series Valve Box Cover, Brown ICV
111C SAND10 in. Round Standard Series Valve Box Cover, Sand ICV
111CF10 in. Round Standard Series Valve Box Cover, Green Fiber
111CR10 in. Round Standard Series Valve Box Cover, Purple Reclaimed Water
111CS10 in. Round Standard Series Valve Box Cover, Green Sewer
111CW10 in. Round Standard Series Valve Box Cover, Green Water
111CW BLK10 in. Round Standard Series Valve Box Cover, Black Water
112B10 in. Round Standard Series Valve Box, 10 in. Height, Green
112BC10 in. Round Standard Series Valve Box and Cover, 10 in. Height, Green Box, Green ICV Cover
112BCB10 in. Round Standard Series Valve Box and Cover, 10 in. Height, Green Box, Green ICV Cover, Includes Bolt
112BCRG10 in. Round Standard Series Valve Box and Cover, 10 in. Height, Green Box, Green Reclaimed Water Cover
112BCS10 in. Round Standard Series Valve Box and Cover, 10 in. Height, Green Box, Green Sewer Cover
112BCE10 in. Round Standard Series Valve Box and Cover, 10 in. Height, Green Box, Green Electrical Cover

Part Number
Description
113BBStainless Steel Bolt, 2-1/2 in. X 3/8 in. (111BB is: Stainless Steel Bolt, 1-3/4 in. X 5/16 in.)
113B14 in. X 19 in. Rectangular Standard Series Box, 12 in. Height, Black
114B14 in. X 19 in. Rectangular Standard Series Box, 12 in. Height, Green
113C14 in. X 19 in. Rectangular Standard Series Valve Box Cover, Green Irrigation Control Valve
113C BRN14 in. X 19 in. Rectangular Standard Series Valve Box Cover, Brown Irrigation Control Valve
113C SAND14 in. X 19 in. Rectangular Standard Series Valve Box Cover, Sand Irrigation Control Valve
113CB14 in. X 19 in. Rectangular Standard Series Valve Box Cover, Black Irrigation Control Valve
113CE14 in. X 19 in. Rectangular Standard Series Valve Box Cover, Green Electrical
113CR14 in. X 19 in. Rectangular Standard Series Valve Box Cover, Purple Reclaimed Water
113CRG14 in. X 19 in. Rectangular Standard Series Valve Box Cover, Green Reclaimed Water
113CS14 in. X 19 in. Rectangular Standard Series Valve Box Cover, Green Sewer Water
113CW14 in. X 19 in. Rectangular Standard Series Valve Box Cover, Black Water
114CW14 in. X 19 in. Rectangular Standard Series Valve Box Cover, Green Water
113BCD14 in. X 19 in. Rectangular Standard Series Valve Box and Drop-in Cover, 12 in. Height, Black Box, Green ICV Cover
113BCDS14 in. X 19 in. Rectangular Standard Series Valve Box and Drop-in Cover, 12 in. Height, Black Box, Green Sewer Cover
113BCDW14 in. X 19 in. Rectangular Standard Series Valve Box and Drop-in Cover, 12 in. Height, Black Box, Black Water Cover
113BC14 in. X 19 in. Rectangular Standard Series Valve Box and Cover, 12 in. Height, Black Box, Green ICV Cover
113BCBLK14 in. X 19 in. Rectangular Standard Series Valve Box and Cover, 12 in. Height, Black Box, Black ICV Cover
113BC SAND14 in. X 19 in. Rectangular Standard Series Valve Box and Cover, 12 in. Height, Sand Box, Sand ICV Cover
113BC AR14 in. X 19 in. Rectangular Standard Series Valve Box and Cover, 12 in. Height, Black Box, Green Water Cover, Arabic
113BCE14 in. X 19 in. Rectangular Standard Series Valve Box and Cover, 12 in. Height, Black Box, Green Electrical Cover
113BCR14 in. X 19 in. Rectangular Standard Series Valve Box and Cover, 12 in. Height, Black Box, Purple Reclaimed Water Cover
113BCRBLK14 in. X 19 in. Rectangular Standard Series Valve Box and Cover, 12 in. Height, Black Box, Black Reclaimed Water Cover
113BCS14 in. X 19 in. Rectangular Standard Series Valve Box and Cover, 12 in. Height, Black Box, Green Sewer Cover
113BCW14 in. X 19 in. Rectangular Standard Series Valve Box and Cover, 12 in. Height, Black Box, Black Water Cover
113BCWG14 in. X 19 in. Rectangular Standard Series Valve Box and Cover, 12 in. Height, Black Box, Green Water Cover
113PBCR14 in. X 19 in. Rectangular Standard Series Valve Box and Cover, 12 in. Height, Purple Box, Purple Reclaimed Water Cover
114BC14 in. X 19 in. Rectangular Standard Series Valve Box and Cover, 12 in. Height, Green Box, Green ICV Cover
114BC AR14 in. X 19 in. Rectangular Standard Series Valve Box and Cover, 12 in. Height, Green Box, Green Water Cover, Arabic
114BCS14 in. X 19 in. Rectangular Standard Series Valve Box and Cover, 12 in. Height, Green Box, Green Sewer Cover
114BCW14 in. X 19 in. Rectangular Standard Series Valve Box and Cover, 12 in. Height, Green Box, Green Water Cover

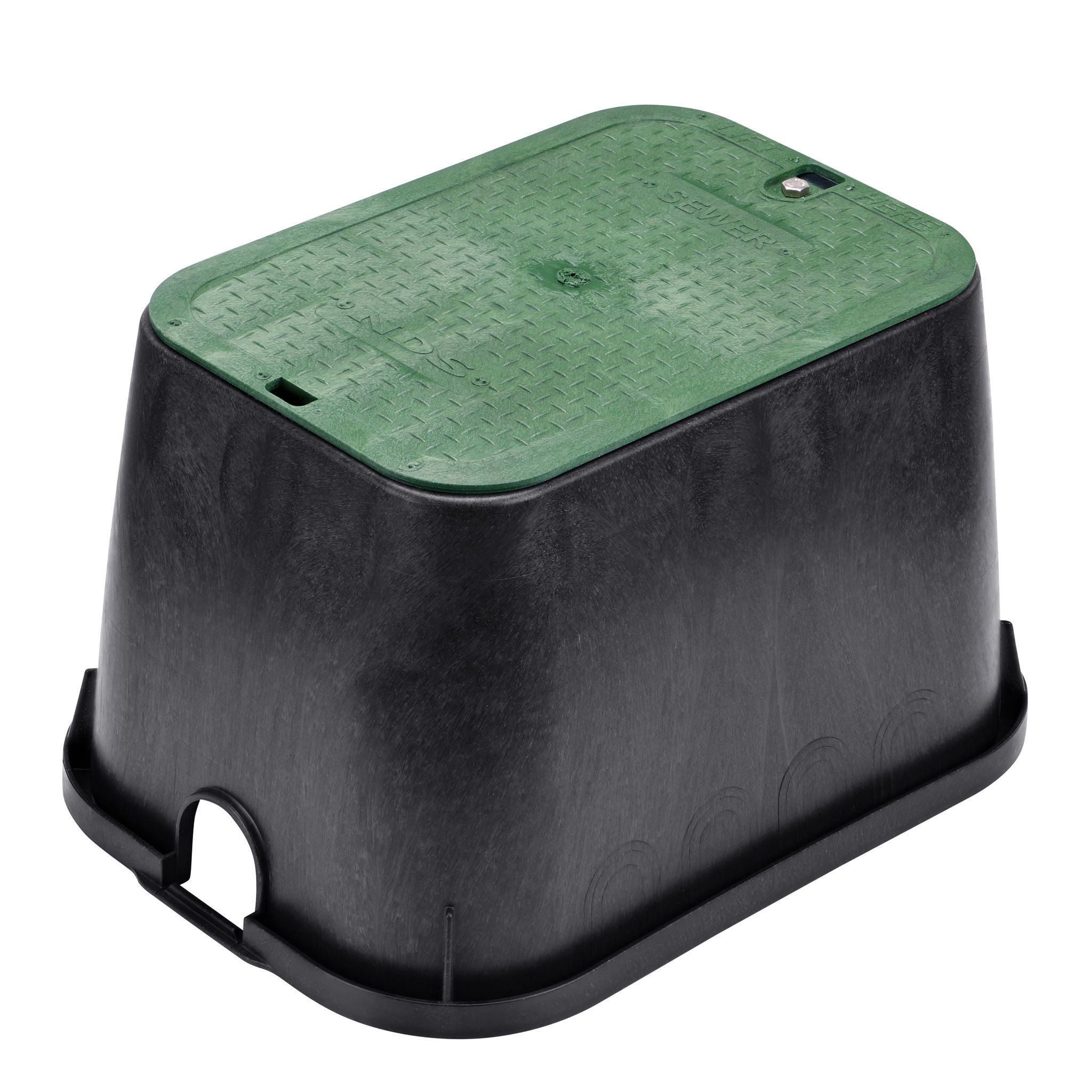

113BCBS14 in. X 19 in. Rectangular Standard Series Valve Box and Cover, 12 in. Height, Black Box, Green Sewer Cover, Includes Bolt
113BCBW14 in. X 19 in. Rectangular Standard Series Valve Box and Cover, 12 in. Height, Black Box, Black Water Cover, Includes Bolt
114BCB14 in. X 19 in. Rectangular Standard Series Valve Box and Cover, 12 in. Height, Green Box, Green ICV Cover, Includes Bolt
113-614 in. X 19 in. Rectangular Standard Series Extension Box, 6-3/4 in. Height, Black
114-614 in. X 19 in. Rectangular Standard Series Extension Box, 6-3/4 in. Height, Green
116-SAND14 in. X 19 in. Rectangular Standard Series Extension Box, 6-3/4 in. Height, Sand
11514 in. X 19 in. Rectangular Standard Series Valve Box Extension and Cover, 6-3/4 in. Height, Black Box, Green ICV Cover
115BCR14 in. X 19 in. Rectangular Standard Series Valve Box Extension and Cover, 6-3/4 in. Height, Black Box, Purple Reclaimed Water Cover
11614 in. X 19 in. Rectangular Standard Series Valve Box Extension and Cover, 6-3/4 in. Height, Green Box, Green ICV Cover
115TBC14 in. X 19 in. Rectangular Standard Series Valve Box Tapered Extension and Cover, 6-3/8 in. Height, Black Box, Green ICV Cover
115TBCB14 in. X 19 in. Rectangular Standard Series Valve Box Tapered Extension and Cover, 6-3/8 in. Height, Black Box, Green ICV Cover, Includes Bolt
115TBCR14 in. X 19 in. Rectangular Standard Series Valve Box Tapered Extension and Cover, 6-3/8 in. Height, Black Box, Purple Reclaimed Water Cover
116TBC14 in. X 19 in. Rectangular Standard Series Valve Box Tapered Extension and Cover, 6-3/8 in. Height, Green Box, Green ICV Cover
116TBC SAND14 in. X 19 in. Rectangular Standard Series Valve Box Tapered Extension and Cover, 6-3/8 in. Height, Sand Box, Sand ICV Cover

Part Number
Description
113BBStainless Steel Bolt, 2-1/2 in. X 3/8 in.
117B13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box, 12 in. Height, Black
117C13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box Cover, Green ICV
117C BRN13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box Cover, Brown ICV
117C SAND13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box Cover, Sand ICV
117CB13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box Cover, Black ICV
117CR13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box Cover, Purple Reclaimed Water
117CS13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box Cover, Green Sewer
117CW13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box Cover, Black Sewer
117BCD13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box and Drop-in Cover, 12 in. Height, Black Box, Green ICV Cover
117BC13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box and Cover, 12 in. Height, Black Box, Green ICV Cover
117BC AR13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box and Cover, 12 in. Height, Black Box, Green ICV Cover, Arabic
117BC BLK13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box and Cover, 12 in. Height, Black Box, Black ICV Cover
117BC SAND13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box and Cover, 12 in. Height, Sand Box, Sand ICV Cover
117BCR13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box and Cover, 12 in. Height, Black Box, Purple Reclaimed Water Cover
117BCS13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box and Cover, 12 in. Height, Black Box, Green Sewer Cover
117BCW13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box and Cover, 12 in. Height, Black Box, Black Water Cover
117PBCR13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box and Cover, 12 in. Height, Purple Box, Purple Reclaimed Water Cover
118BC13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box and Cover, 12 in. Height, Green Box, Green ICV Cover
118BCS13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box and Cover, 12 in. Height, Green Box, Green Sewer Cover
118BCW13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box and Cover, 12 in. Height, Green Box, Green Water Cover
117-613 in. X 20 in. Rectangular Standard Series Jumbo Valve Box Extension, 6-1/2 in. Height, Black
118-613 in. X 20 in. Rectangular Standard Series Jumbo Valve Box Extension, 6-1/2 in. Height, Green
11913 in. X 20 in. Rectangular Standard Series Jumbo Valve Box Extension and Cover, 6-1/2 in. Height, Black Box, Green ICV Cover
119 SAND13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box Extension and Cover, 6-1/2 in. Height, Sand Box, Sand ICV Cover
12013 in. X 20 in. Rectangular Standard Series Jumbo Valve Box Extension and Cover, 6-1/2 in. Height, Green Box, Green ICV Cover
119TBC13 in. X 20 in. Rectangular Standard Series Jumbo Tapered Valve Box Extension and Cover, 6-1/2 in. Height, Black Box, Green ICV Cover
119TBCR13 in. X 20 in. Rectangular Standard Series Jumbo Tapered Valve Box Extension and Cover, 6-1/2 in. Height, Black Box, Purple Reclaimed Water Cover

Part Number
Description
D108-G6 in. Round D109 Standard Series Valve Box and Cover, 8-7/8 in. Height, Green Box, Green ICV Cover
D109-G6 in. Round D109 Standard Series Valve Box and Cover, 8-7/8 in. Height, Black Box, Green ICV Cover
D109-G AR6 in. Round D109 Standard Series Valve Box and Cover, 8-7/8 in. Height, Black Box, Green ICV Cover, Arabic
D109-GBOX6 in. Round D109 Standard Series Valve Box and Cover, 8-7/8 in. Height, Black Box, Green ICV Cover, 36-Pack
D109-GL6 in. Round D109 Standard Series Valve Box Cover, Green ICV
D109-P6 in. Round D109 Standard Series Valve Box and Cover, 8-7/8 in. Height, Purple Box, Purple Reclaimed Water Cover
D109-PL6 in. Round D109 Standard Series Valve Box Cover, Purple Reclaimed Water

Part Number
Description
D1000-SG10 in. X 15 in. Rectangular Standard Series Valve Box and Drop-in Cover, 10 in. Height, Black Box, Green ICV Cover
D1000-SGL10 in. X 15 in. Rectangular Standard Series Valve Box Drop-in Cover, Green ICV
D1000-B/O10 in. X 15 in. Rectangular Standard Series Valve Box, 10 in. Height, Black Box, Green

Part Number
Description
M2-SG8 in. X 12 in. Oval Standard Series Valve Box and Drop-in Cover, 9-3/4 in. Height, Black Box, Green Control Valve Cover
M2-SG-LID8 in. X 12 in. Oval Standard Series Valve Box Drop-in Cover, Green Control Valve
M4-SG8 in. X 14 in. Oval Standard Series Valve Box and Drop-in Cover, 11-1/4 in. Height, Black Box, Green Control Valve Cover
M4-SGL8 in. X 14 in. Oval Standard Series Valve Box Drop-in Cover, Green Control Valve

Where to Get It

Where to Buy NDS Solutions

Find a Dealer or Distributor near you

NDS products are available at a variety of leading home & garden retailers and professional distributors.  Click below to find a store near you.

Get Started
Find a Contractor

Need More Help?

Find a Contractor

Enter your location and find professional drainage and irrigation contractors in your area that have completed NDS training and certification.

Get Started
