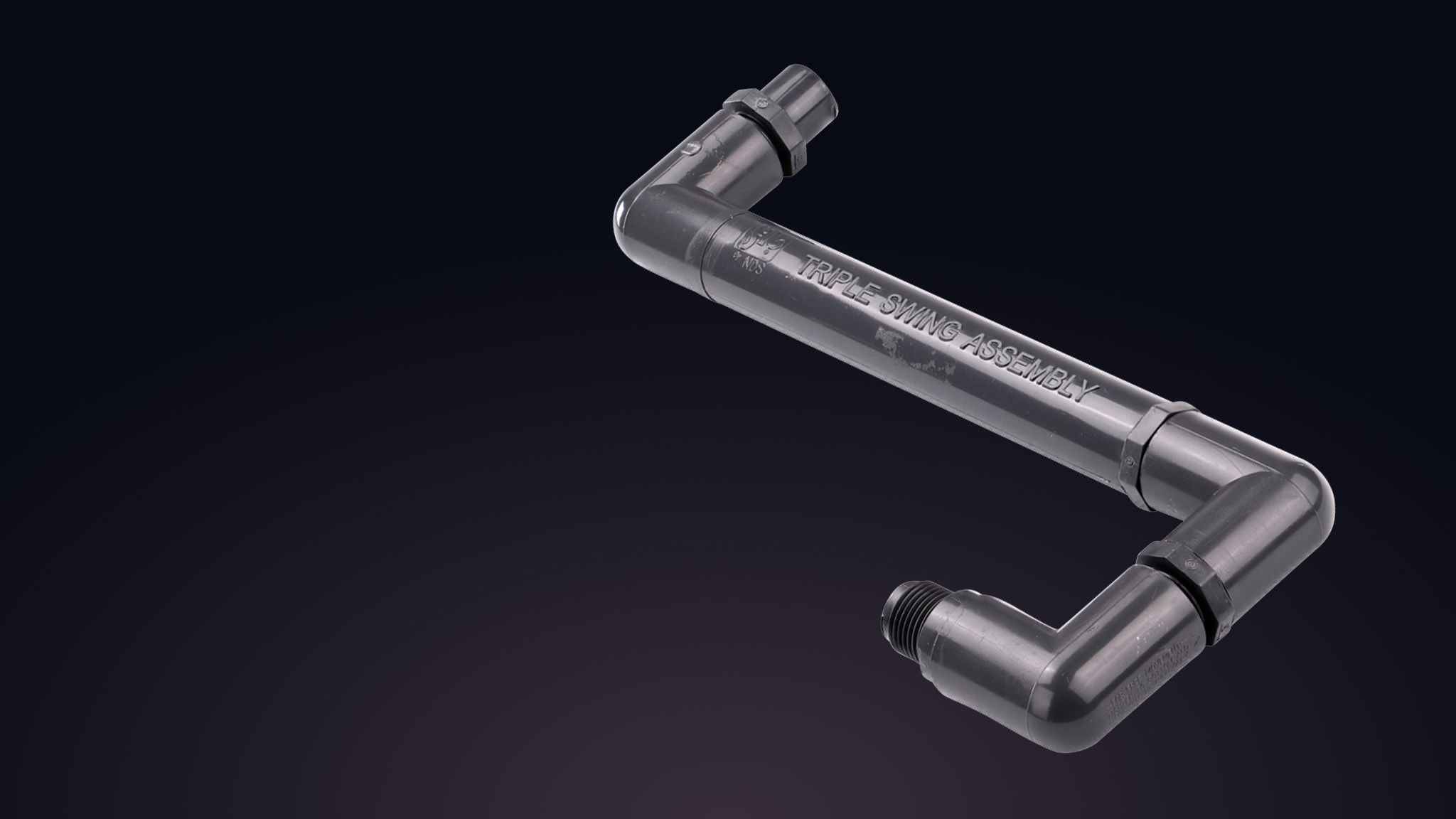

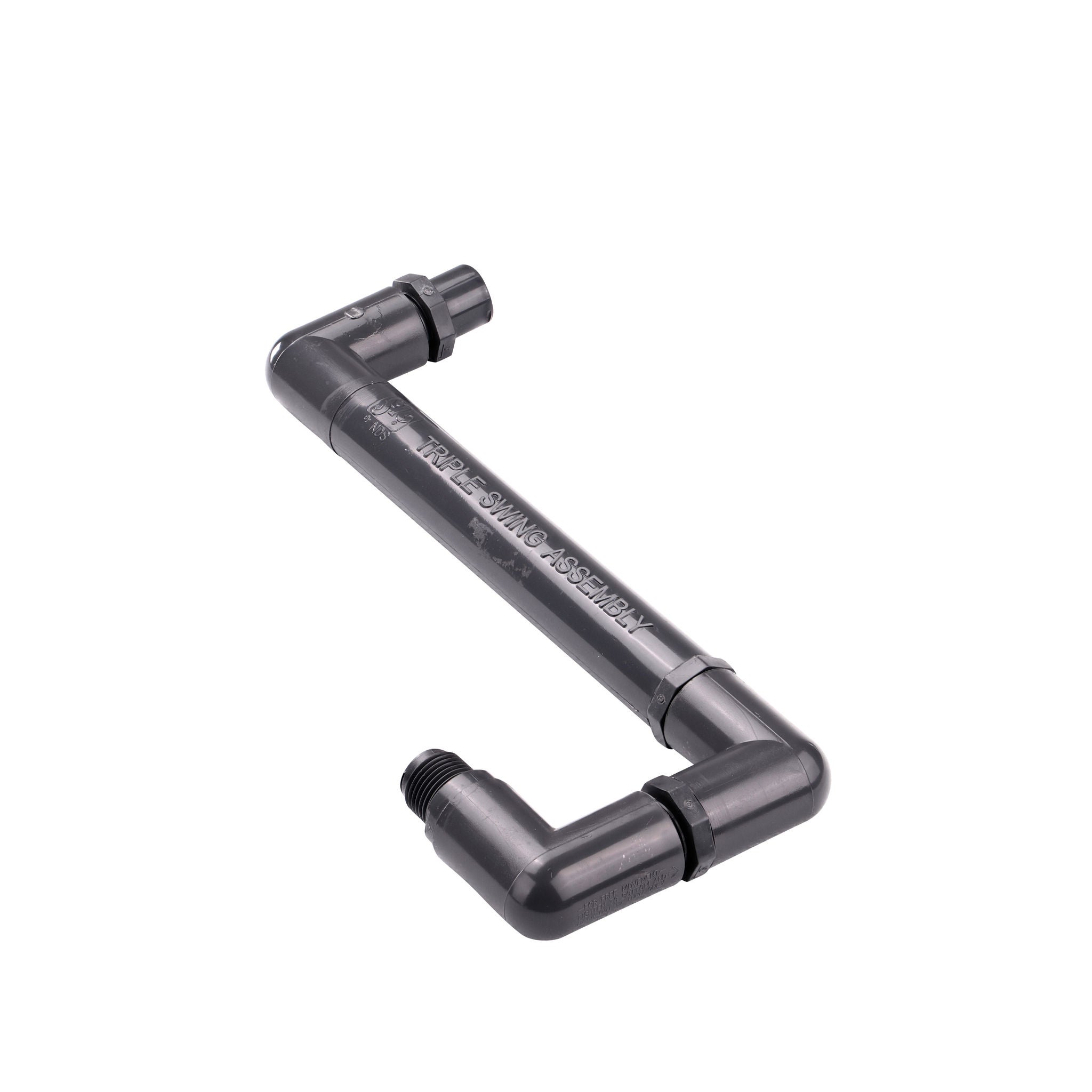

Triple Swing Joints

Triple Swing Joints

Connect a sprinkler to irrigation pipeline and easily position it where you need it with the triple swing joints assembly. Triple swing joints come preassembled for hassle-free installation.

Key Features

  • Triple swing joints come preassembled to provide flexible placement for sprinkler off pipeline path
  • Swing joint has two swivel joints to position sprinkler; one swivel joint on other end to connect to pipe
  • Flexibility protects pipeline from damage
  • Easily replace sprinklers connected to pipeline; can easily be repositioned after install if needed
  • Allows sprinkler to be installed in narrow or uneven areas

Applications

  • Connects sprinkler to underground irrigation pipeline; allows movement for easier sprinkler placement or relocation independently from pipe

  • Use for subsurface irrigation  and sprinkler applications; connects sprinkler to most sch. 80 pipe

  • As part of a complete flow management system, the swing joint connects sprinkler to irrigation pipeline

Installation & Maintenance

  • Swing joint has one spigot end that connects into sch. 80 pipe end and one MPT end that threads into FPT sprinkler connection point; can correct sprinkler depth and angle to be ground level after install

  • Swing joint performance issues can indicate damage; replace as needed

Materials & Sustainability

  • Swing joint is made of polyvinyl chloride (PVC)

  • Onsite flow management helps provide a leak-resistant and corrosion-free system

Product Models

Part Number
Description
TSA-0500-STPVC Triple Swing Joints Assembly, Sch. 80 1/2 in. Spigot X 1/2 in. MPT, Gray
TSA-0500-TTPVC Triple Swing Joints Assembly, Sch. 80 1/2 in. MPT X 1/2 in. MPT, Gray
TSA-0750-STPVC Triple Swing Joints Assembly, Sch. 80 3/4 in. Spigot X 3/4 in. MPT, Gray
TSA-0750-TTPVC Triple Swing Joints Assembly, Sch. 80 3/4 in. MPT X 3/4 in. MPT, Gray
TSA-1000-STPVC Triple Swing Joints Assembly, Sch. 80 1 in. Spigot X 1 in. MPT, Gray
TSA-1000-TTPVC Triple Swing Joints Assembly, Sch. 80 1 in. MPT X 1 in. MPT, Gray
TSA-1500-TTPVC Triple Swing Joints Assembly, Sch. 80 1-1/2 in. MPT X 1-1/2 in. MPT, Gray
