Flexible and Rigid Saddles

Flexible Saddles and Rigid Saddles

Use the flexible saddle to add a lateral sewer line at an angle. Use the Flo-Tap™ rigid saddle to add a line to PVC pipeline without needing to shut off water. Use the Clamp-It™ rigid saddle to install a sprinkler irrigation system to pipe.

Key Features

  • Elastomeric construction provides strength and flexibility to allow saddle to securely fit 6 in. sewer main pipe diameters and up
  • Self-piercing Flo-Tap™ saddle has a unique cutter that captures debris as it cuts so there's no need for cleaning up, and prevents debris from entering the water supply
  • Clamp-It™ rigid saddle features a patented wedge design eliminates the need for bolts, washers, or nuts to connect to pipe; requires less space to install compared to a traditional saddle
  • Clamp-It™ rigid saddle has proven success in copper and gold mines for heap leach mining
  • Flexible saddle body made of flexible elastomeric PVC
  • Rigid saddle body made of polyvinyl chloride (PVC)

Applications

  • Flexible saddle adds a lateral sewer line at an angle to a sewer main line; flexible elastomeric material enables saddle to securely fit around a range of sewer main pipe diameters

  • Flo-Tap™ rigid saddle provides a fast and easy way to add a branch connection to an existing pipeline without the need to shut off water or bolt saddle onto pipe

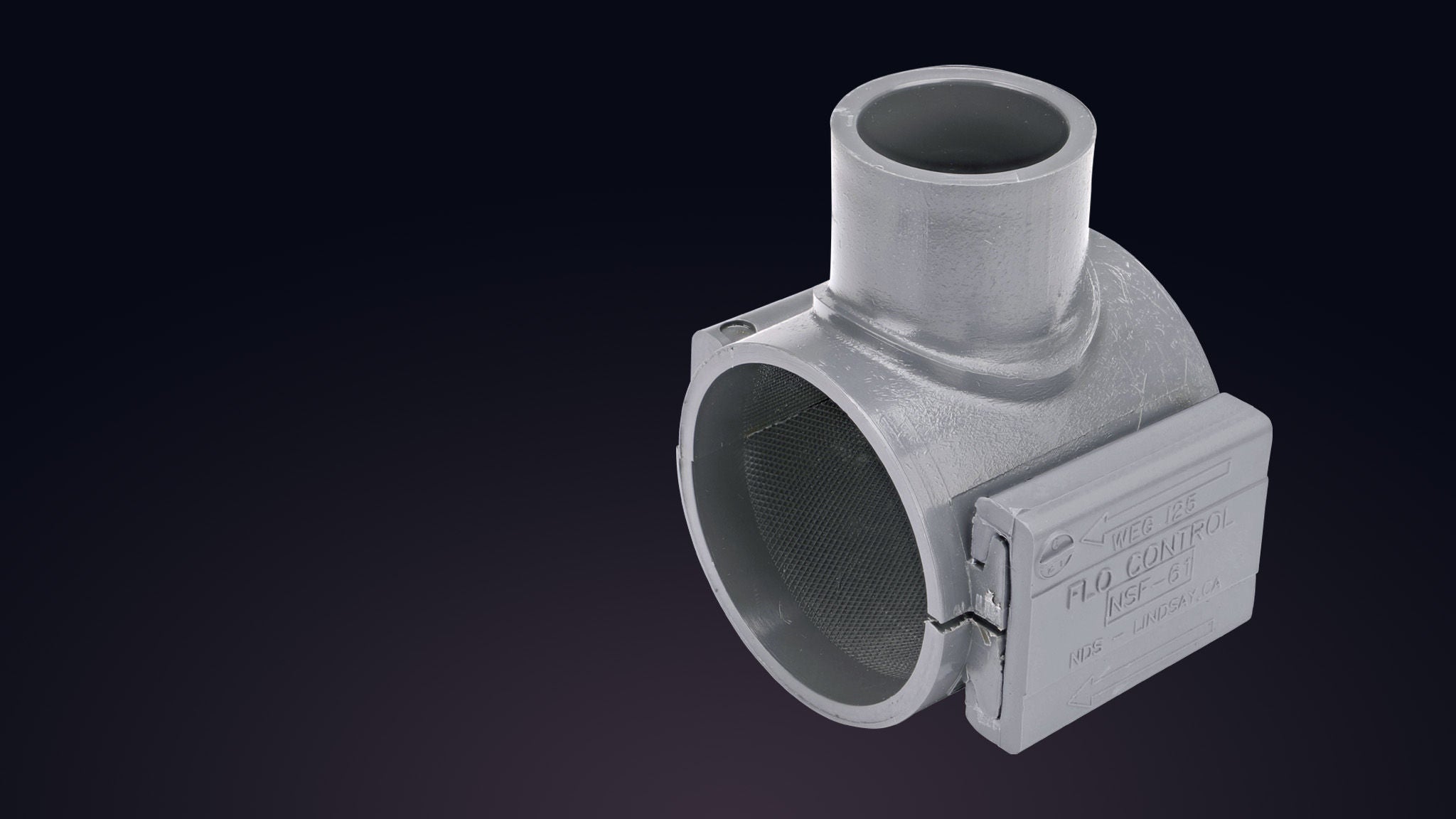

  • Clamp-It™ rigid saddle makes it quick and easy to add a sprinkler or riser to an existing pipeline with its bolt-free patented wedge design

Installation & Maintenance

  • To install the flexible saddle: drill hole in pipe wall with a hole saw; place saddle on pipe; tighten clamps around the saddle with torque wrench; position pipe into saddle inlet and tighten the clamp around inlet to secure

  • To install the Flo-Tap™ rigid saddle: clamp saddle over pipe and tap in wedge; remove cap and turn internal cutter to cut pipe opening; solvent-weld new line; remove cutter and debris; replace cap to prevent leaking

  • To install the Clamp-It™ rigid saddle: drill hole in pipe; place saddle over hole and attach clamping hinge around pipe; apply wedge and secure in place with a tap of a rubber mallet

  • If water is leaking out, tighten clamp on flexible saddle to ensure a firm seal.  Saddle performance issues can indicate damage; replace as needed

Materials & Sustainability

  • Flexible saddle body made of flexible elastomeric PVC

  • Rigid saddle body made of polyvinyl chloride (PVC)

  • Flexible saddle clamps made of stainless steel

  • Flo-Tap saddle O-ring made of EPDM; cutter made of stainless steel

  • Clamp-It saddle O-ring made of EPDM

  • Onsite flow management protects pipe systems from backflow which can lead to corrosion of pipes, property damage, and issues with the flow system

Product Models

Part Number
Description
3115Flo-Tap™ Rigid Hot/Wet Tap PVC Saddle for 1-1/2 in. PVC Pipe, 3/4 in. Socket or 1 in. Spigot, Gray
3120Flo-Tap™ Rigid Hot/Wet Tap PVC Saddle for 2 in. PVC Pipe, 3/4 in. Socket or 1 in. Spigot, Gray
3220Flo-Tap™ Rigid Hot/Wet Tap PVC Saddle for 2 in. PVC Pipe, 1-1/2 in. Socket or 2 in. Spigot, Gray
3125Flo-Tap™ Rigid Hot/Wet Tap PVC Saddle for 2-1/2 in. PVC Pipe, 3/4 in. Socket or 1 in. Spigot, Gray
3225Flo-Tap™ Rigid Hot/Wet Tap PVC Saddle for 2-1/2 in. PVC Pipe, 1-1/2 in. Socket or 2 in. Spigot, Gray
3130Flo-Tap™ Rigid Hot/Wet Tap PVC Saddle for 3 in. PVC Pipe, 3/4 in. Socket or 1 in. Spigot, Gray
3230Flo-Tap™ Rigid Hot/Wet Tap Saddle for 3 in. PVC Pipe, 1-1/2 in. Socket or 2 in. Spigot, Gray
3140Flo-Tap™ Rigid Hot/Wet Tap PVC Saddle for 4 in. PVC Pipe, 3/4 in. Socket or 1 in. Spigot, Gray
3240Flo-Tap™ Rigid Hot/Wet Tap PVC Saddle for 4 in. PVC Pipe, 1-1/2 in. Socket or 2 in. Spigot, Gray
3160Flo-Tap™ Rigid Hot/Wet Tap PVC Saddle for 6 in. PVC Pipe, 3/4 in. Socket or 1 in. Spigot, Gray
3260Flo-Tap™ Rigid Hot/Wet Tap PVC Saddle for 6 in. PVC Pipe, 1-1/2 in. Socket or 2 in. Spigot, Gray
3280Flo-Tap™ Rigid Hot/Wet Tap PVC Saddle for 8 in. PVC Pipe, 1-1/2 in. Socket or 2 in. Spigot, Gray

Part Number
Description
421507Clamp-It™ Rigid PVC Saddle for 1-1/2 in. PVC Pipe, 3/4 in. FPT, Gray
421510Clamp-It™ Rigid PVC Saddle for 1-1/2 in. PVC Pipe, 1 in. FPT, Gray
432007Clamp-It™ Rigid PVC Saddle for 2 in. PVC Pipe, 3/4 in. S, Gray
422007Clamp-It™ Rigid PVC Saddle for 2 in. PVC Pipe, 3/4 in. FPT, Gray
432010Clamp-It™ Rigid PVC Saddle for 2 in. PVC Pipe, 1 in. S, Gray
422010Clamp-It™ Rigid PVC Saddle for 2 in. PVC Pipe, 1 in. FPT, Gray
432012Clamp-It™ Rigid PVC Saddle for 2 in. PVC Pipe, 1-1/4 in. S, Gray
422012Clamp-It™ Rigid PVC Saddle for 2 in. PVC Pipe, 1-1/4 in. FPT, Gray
432015Clamp-It™ Rigid PVC Saddle for 2 in. PVC Pipe, 1-1/2 in. S, Gray
422015Clamp-It™ Rigid PVC Saddle for 2 in. PVC Pipe, 1-1/2 in. FPT, Gray
432510Clamp-It™ Rigid PVC Saddle for 2-1/2 in. PVC Pipe, 1 in. S, Gray
432515Clamp-It™ Rigid PVC Saddle for 2-1/2 in. PVC Pipe, 1-1/2 in. S, Gray
432520Clamp-It™ Rigid PVC Saddle for 2-1/2 in. PVC Pipe, 2 in. S, Gray
453007Clamp-It™ Rigid PVC Saddle for 3 in. PVC Pipe, 3/4 in. S, Gray
443007Clamp-It™ Rigid PVC Saddle for 3 in. PVC Pipe, 3/4 in. FPT, Gray
453010Clamp-It™ Rigid PVC Saddle for 3 in. PVC Pipe, 1 in. S, Gray
443010Clamp-It™ Rigid PVC Saddle for 3 in. PVC Pipe, 1 in. FPT, Gray
443012Clamp-It™ Rigid PVC Saddle for 3 in. PVC Pipe, 1-1/4 in. FPT, Gray
453015Clamp-It™ Rigid PVC Saddle for 3 in. PVC Pipe, 1-1/2 in. S, Gray
443015Clamp-It™ Rigid PVC Saddle for 3 in. PVC Pipe, 1-1/2 in. FPT, Gray
453020Clamp-It™ Rigid PVC Saddle for 3 in. PVC Pipe, 2 in. S, Gray
443020Clamp-It™ Rigid PVC Saddle for 3 in. PVC Pipe, 2 in. FPT, Gray
444007Clamp-It™ Rigid PVC Saddle for 4 in. PVC Pipe, 3/4 in. FPT, Gray
454010Clamp-It™ Rigid PVC Saddle for 4 in. PVC Pipe, 1 in. S, Gray
444010Clamp-It™ Rigid PVC Saddle for 4 in. PVC Pipe, 1 in. FPT, Gray
444012Clamp-It™ Rigid PVC Saddle for 4 in. PVC Pipe, 1-1/4 in. FPT, Gray
454015Clamp-It™ Rigid PVC Saddle for 4 in. PVC Pipe, 1-1/2 in. S, Gray
444015Clamp-It™ Rigid PVC Saddle for 4 in. PVC Pipe, 1-1/2 in. FPT, Gray
454020Clamp-It™ Rigid PVC Saddle for 4 in. PVC Pipe, 2 in. S, Gray
444020Clamp-It™ Rigid PVC Saddle for 4 in. PVC Pipe, 2 in. FPT, Gray
446007Clamp-It™ Rigid PVC Saddle for 6 in. PVC Pipe, 3/4 in. FPT, Gray
456010Clamp-It™ Rigid PVC Saddle for 6 in. PVC Pipe, 1 in. S, Gray
446010Clamp-It™ Rigid PVC Saddle for 6 in. PVC Pipe, 1 in. FPT, Gray
446012Clamp-It™ Rigid PVC Saddle for 6 in. PVC Pipe, 1-1/4 in. FPT, Gray
456015Clamp-It™ Rigid PVC Saddle for 6 in. PVC Pipe, 1-1/2 in. S, Gray
446015Clamp-It™ Rigid PVC Saddle for 6 in. PVC Pipe, 1-1/2 in. FPT, Gray
456020Clamp-It™ Rigid PVC Saddle for 6 in. PVC Pipe, 2 in. S, Gray
446020Clamp-It™ Rigid PVC Saddle for 6 in. PVC Pipe, 2 in. FPT, Gray
458015Clamp-It™ Rigid PVC Saddle for 8 in. PVC Pipe, 1-1/2 in. S, Gray
448015Clamp-It™ Rigid PVC Saddle for 8 in. PVC Pipe, 1-1/2 in. FPT, Gray
448010Clamp-It™ Rigid PVC Saddle for 8 in. PVC Pipe, 1 in. FPT, Gray
458020Clamp-It™ Rigid PVC Saddle for 8 in. PVC Pipe, 2 in. S, Gray
448020Clamp-It™ Rigid PVC Saddle for 8 in. PVC Pipe, 2 in. FPT, Gray

331510PClamp-It™ Rigid PVC Saddle for 1-1/2 in. PE Pipe, 1 in. S, Gray

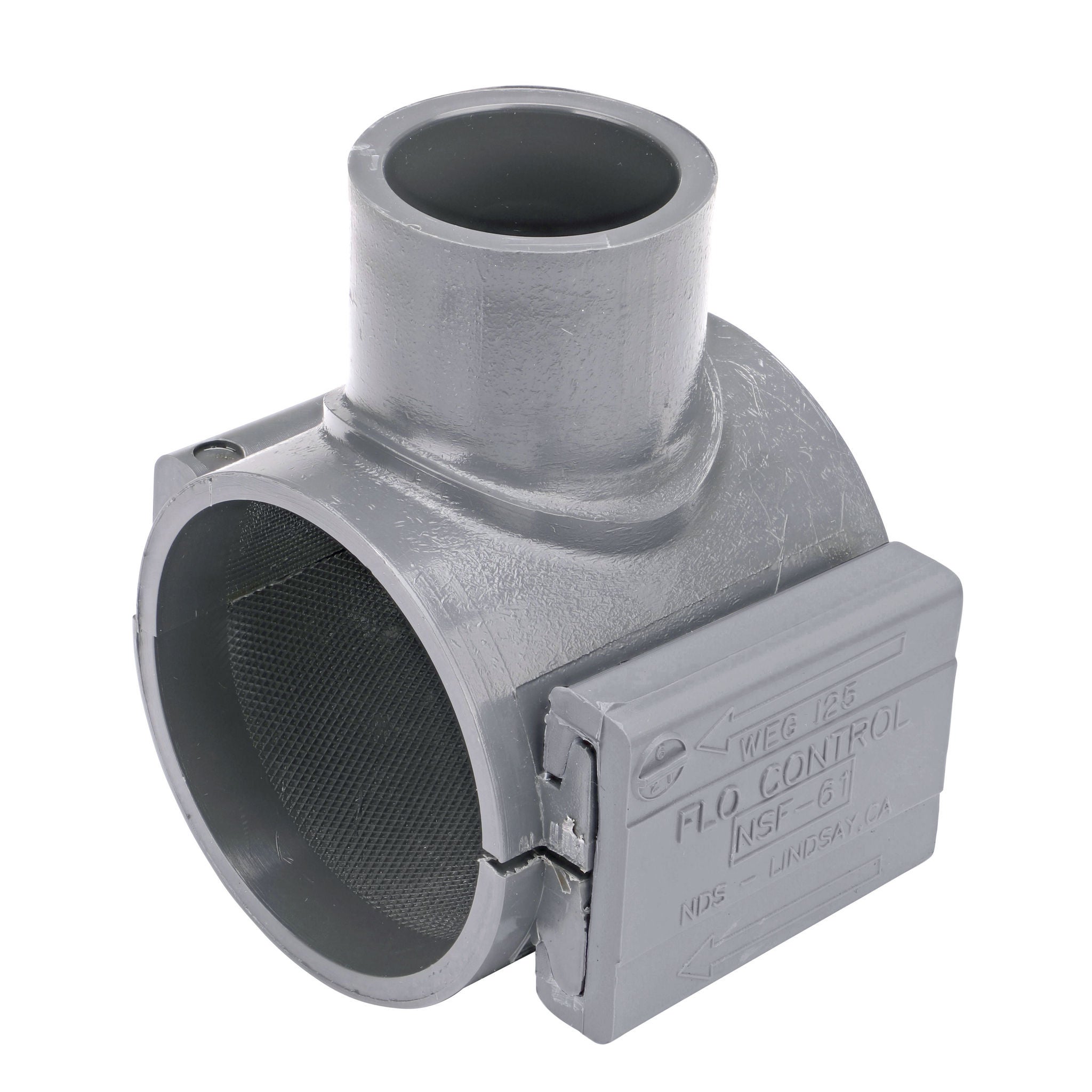

332010PClamp-It™ Rigid PVC Saddle for 2 in. PE Pipe, 1 in. S, Gray
322010PClamp-It™ Rigid PVC Saddle for 2 in. PE Pipe, 1 in. FPT, Gray
344007PClamp-It™ Rigid PVC Saddle for 4 in. PE Pipe, 3/4 in. FPT, Gray

Part Number
Description
4T/WOCFlexible Elastomeric PVC Saddle Tee without Clamp, 4 in. Inlet, Black
6T/WOCFlexible Elastomeric PVC Saddle Tee without Clamp, 6 in. Inlet, Black
4T/CFlexible Elastomeric PVC Saddle Tee with Clamps, 4 in. Inlet, Black
6T/CFlexible Elastomeric PVC Saddle Tee with Clamps, 6 in. Inlet, Black

4Y/WOCFlexible Elastomeric PVC Saddle Wye without Clamp, 4 in. Inlet, Black
6Y/WOCFlexible Elastomeric PVC Saddle Wye without Clamp, 6 in. Inlet, Black
4Y/CFlexible Elastomeric PVC Saddle Wye with Clamps, 4 in. Inlet, Black
6Y/CFlexible Elastomeric PVC Saddle Wye with Clamps, 6 in. Inlet, Black
