Tufftrack® Grass Pavers

Regarded as the strongest grass paver on the market. These rigid paver panels feature an unfilled compressive strength of 86,563 psf and are capable of supporting H20 and H25 loads.
NDS Tufftrack Grass Paver supporting a firetruck

Key Features

  • Unfilled compressive strength of 86,563 psf; supports H-20 and H-25 loads; built for durability with a life expectancy of 25 years when well maintained.
  • Tongue-and-groove locking system provides exceptional stability, longevity, and ease of assembly; secure locking clips prevent paver displacement; no tools required.

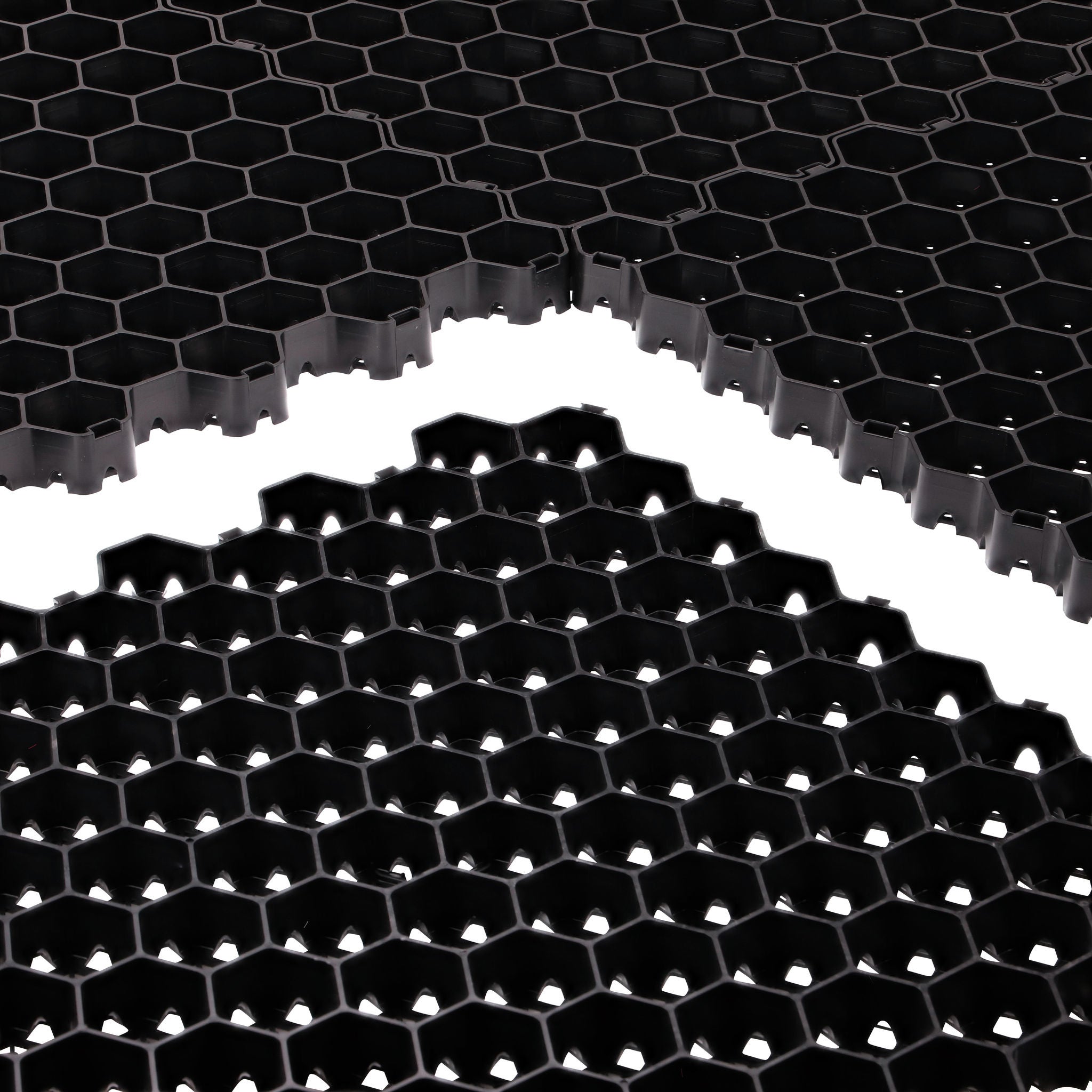

  • Each 2 ft. X 2 ft. panel features 120 nested honeycomb cells and 22 connection points; support ribs keep soil in place; cell wall height protects turf root systems.
  • Interconnected hexagonal cells with shared walls for higher strength, and domed drainage holes at the base to promote a greater flow of water, oxygen, and nutrients.
  • May contribute to points for LEED certification.

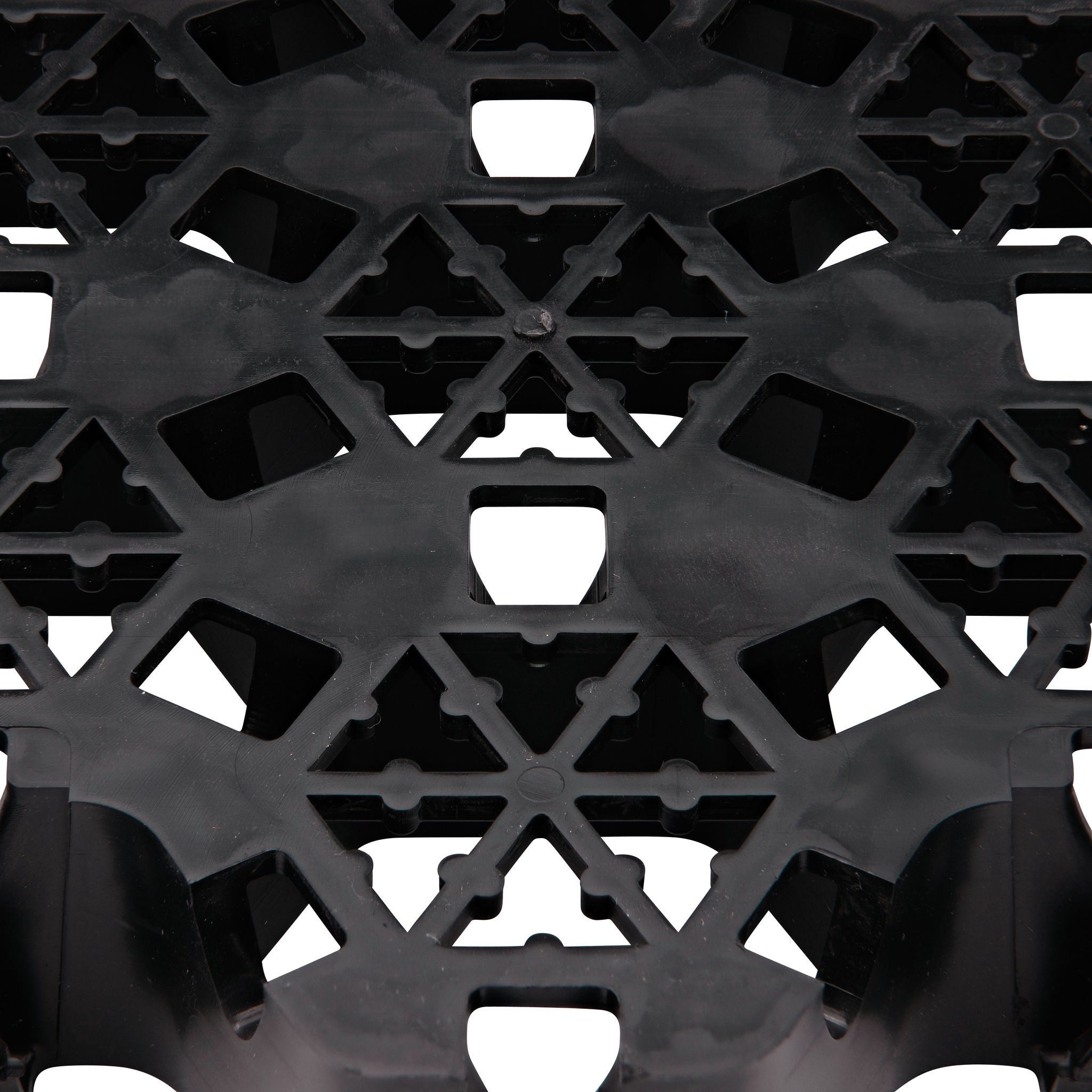

Closeup View of the drainage holes and support on the bottom of the NDS Tufftrack Grass Pavers (NDS TT-24)

Compressive Strength (Native soil-filled pavers): 400,000 lbs.

Compressive Strength (Empty cells): 86,563 lbs.

120 nested hexagonal cells per paver.

Easy to install
10 unique tongue & groove clips per panel are easy to install and provide maximum stability.
Product ships in 24 inch squares for easy layout.
Tufftrack pavers
100% recyclable.
Superior chemical resistance.
Contributes to LEED® credits.
Design increases water runoff capabilities in areas where drainage is critical.

Applications

  • An alternative to traditional paving methods such as concrete and asphalt, Tufftrack® Grass Pavers create a durable and drivable grass surface that can support heavy vehicles while blending into the surroundings.

  • Ideal for emergency vehicle access roads, parking lots, golf cart paths, jogging tracks, bike paths, ATV paths, equestrian parks, trail reinforcements, and runoff areas.

  • Best used in areas where subsoil infiltrates the water; poor draining soil may require an underdrain.

Installation & Maintenance

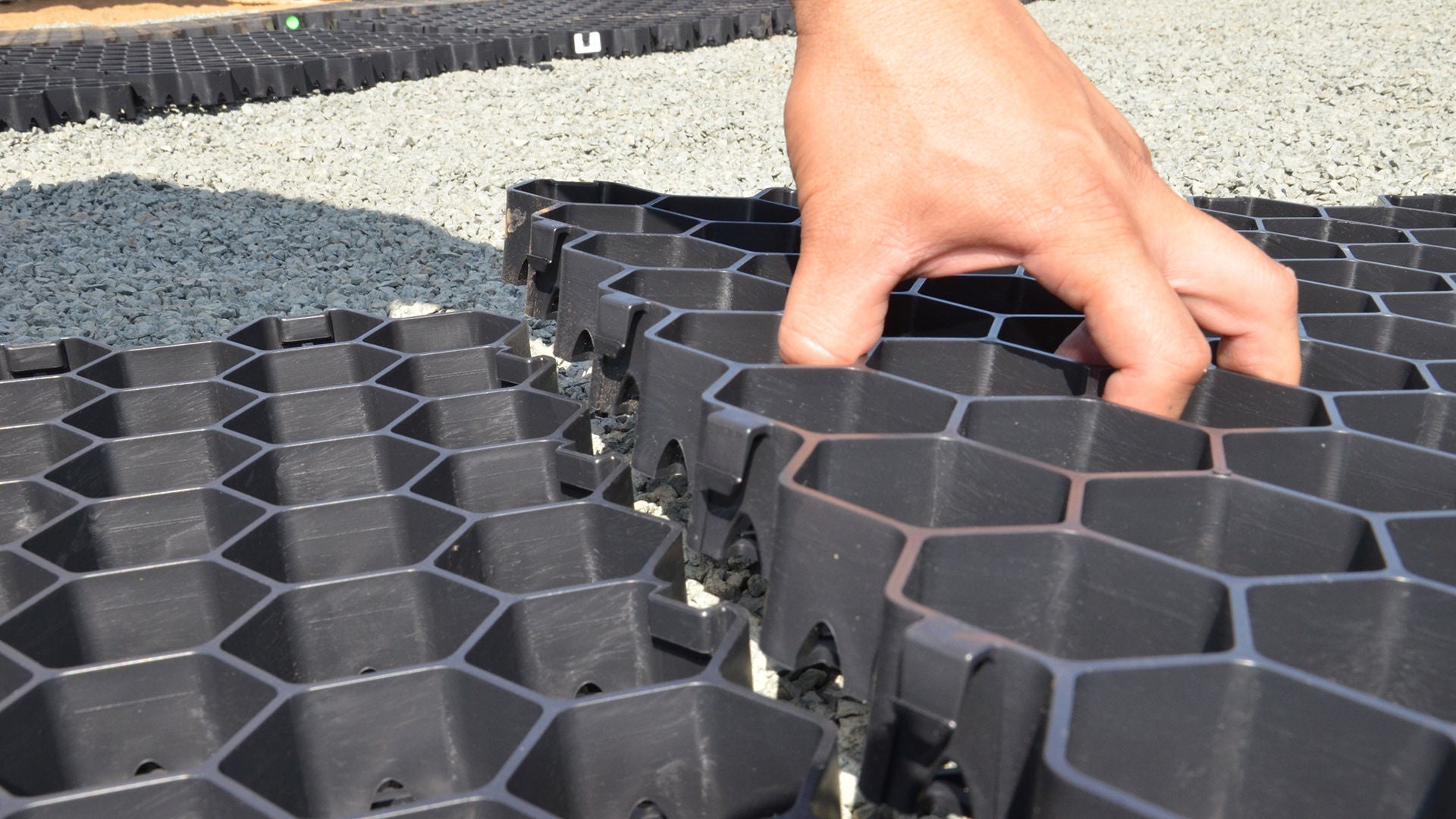

  1. Lay pavers out over prepared base.
  2. Clip panels together with tongue-and-groove locking system to create an integral paver mat.
  3. Add soil infill; top with sod or seed; see technical guide for details.
  4. Periodically check for damage and replace panel as needed; see maintenance and operation guide for details.

Materials & Sustainability

  • Paver cells made with polypropylene (PP) containing recycled content; treated with UV inhibitors to prevent cracking.

  • Pavers are responsibly constructed using recycled materials; pavers reduce stormwater runoff; slow down erosion; recharge groundwater by allowing water to absorb into the ground.

  • Made in USA.

Product Models

Part NumberDescription
TT-242 ft. X 2 ft. Tufftrack® Grass Pavers, 4 sq. ft. per panel, Black
