EZ-Roll Gravel Pavers

EZ Roll® Gravel Pavers

Maintain the look and functionality of a gravel road. Engineered with a web of hexagonal cells and geotextile fabric, these paver rolls have an unfilled compressive strength of 53,683 psf and can support H20 and H25 loads.
Alt Text Goes Here

Key Features

  • Unfilled compressive strength of 53,683 psf; supports H-20 and H-25 loads; built for durability with a life expectancy of 25 years when well maintained; may be plowed to remove snow
  • Panels come preassembled in easy-to-install rolls with thermally welded, puncture-resistant geotextile fabric; fabric prevents gravel from migrating downward and lifting the paver, and is also porous to allow for filtration of stormwater runoff

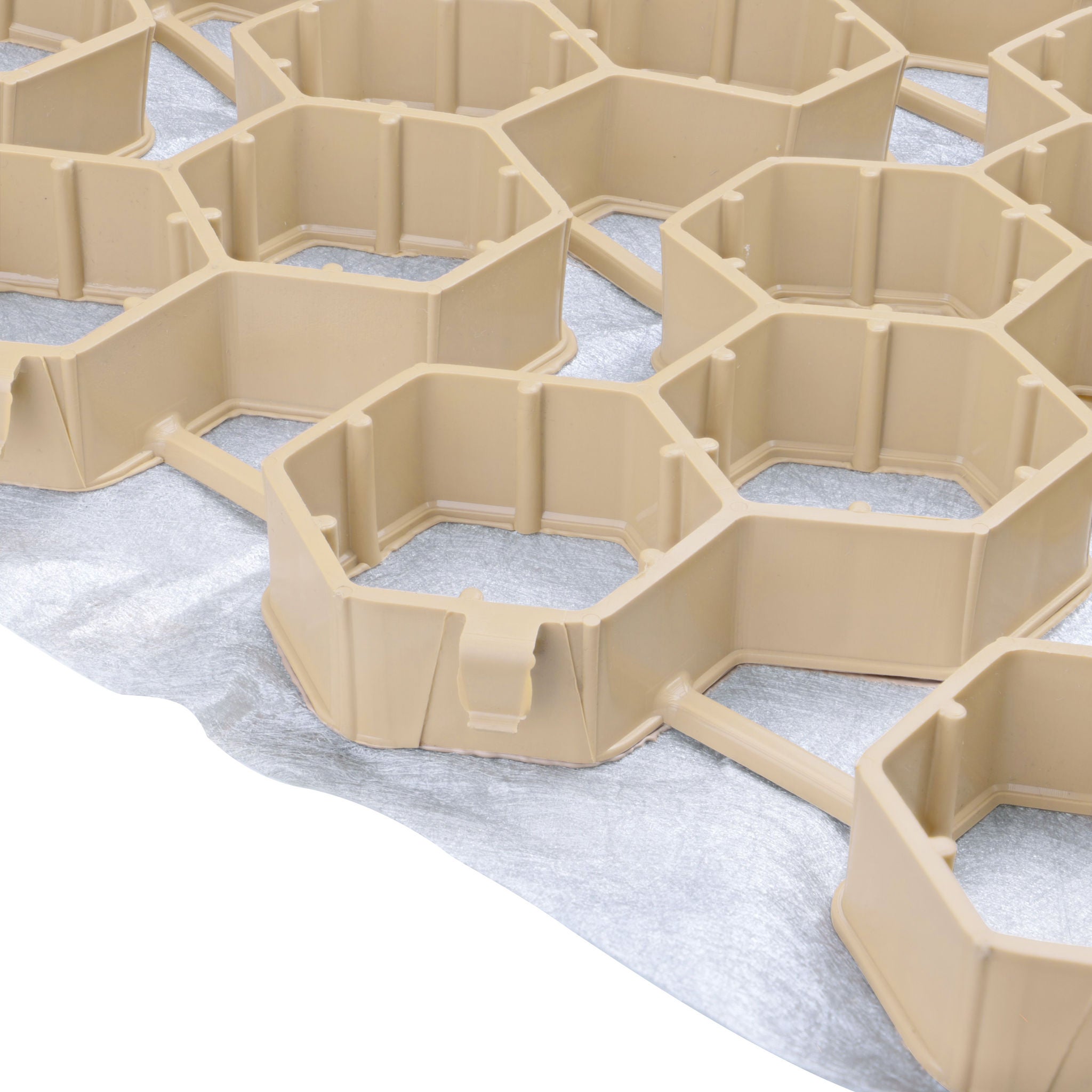

  • Each 2 ft. X 2 ft. section features 72 nested honeycomb cells
  • Interconnected hexagonal cells with shared walls provide strength; available in four colors: black, gray, brick red, and tan
  • May contribute to points for LEED certification

Applications

  • An alternative to traditional paving methods such as concrete and asphalt, EZ Roll® Gravel Pavers create a durable and drivable gravel surface that can support heavy vehicles while maintaining the look and functionality of a gravel road

  • Designed for continuous use in locations such as driveways, parking lots, golf cart paths, jogging tracks, bike paths, ATV paths, equestrian parks, trail reinforcements, and runoff areas

  • Best used in areas where subsoil infiltrates the water; poor draining soil may require an underdrain

Installation & Maintenance

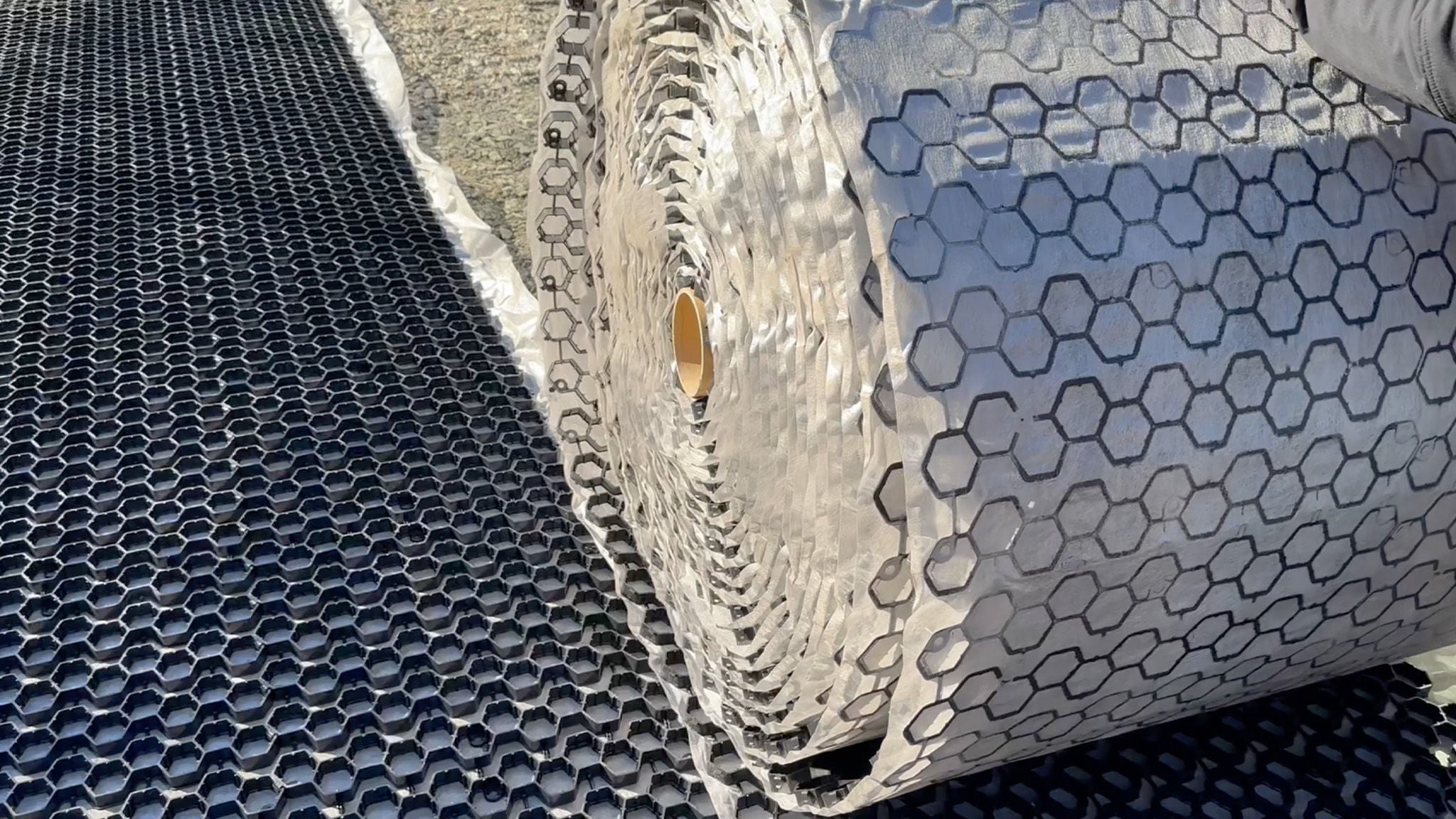

  1. Prepare base; roll pavers out with fabric side down
  2. Align rolls by laying one roll down first, then pulling edge of adjacent roll snug against it
  3. Apply stakes; fill with gravel as specified
  4. Periodically check for damage and replace panel as needed; see maintenance and operation guide for details

Materials & Sustainability

  • Paver cells made of high-density polyethylene (HDPE) containing recycled content; treated with UV inhibitors to prevent cracking

  • Geotextile Typar® fabric made of polypropylene (PP) treated with UV inhibitors

  • Pavers are responsibly constructed using recycled materials; pavers reduce stormwater runoff; slow down erosion; recharge groundwater by allowing water to absorb into the ground

  • Made in the USA

Product Models

Part Number
Description
GP4X1503.87 ft. X 149  ft. EZ Roll® Gravel Pavers, 577 sq. ft. per roll, Black
GP4X150G3.87 ft. X 149  ft. EZ Roll® Gravel Pavers, 577 sq. ft. per roll, Gray
GP4X150R3.87 ft. X 149  ft. EZ Roll® Gravel Pavers, 577 sq. ft. per roll, Brick Red
GP4X150T3.87 ft. X 149 ft. EZ Roll® Gravel Pavers, 577 sq. ft. per roll, Tan
GPSTAKEEZ Roll® Gravel Paver Stake, 40-Pack
