EZ-Roll Grass Pavers

EZ Roll® Grass Pavers

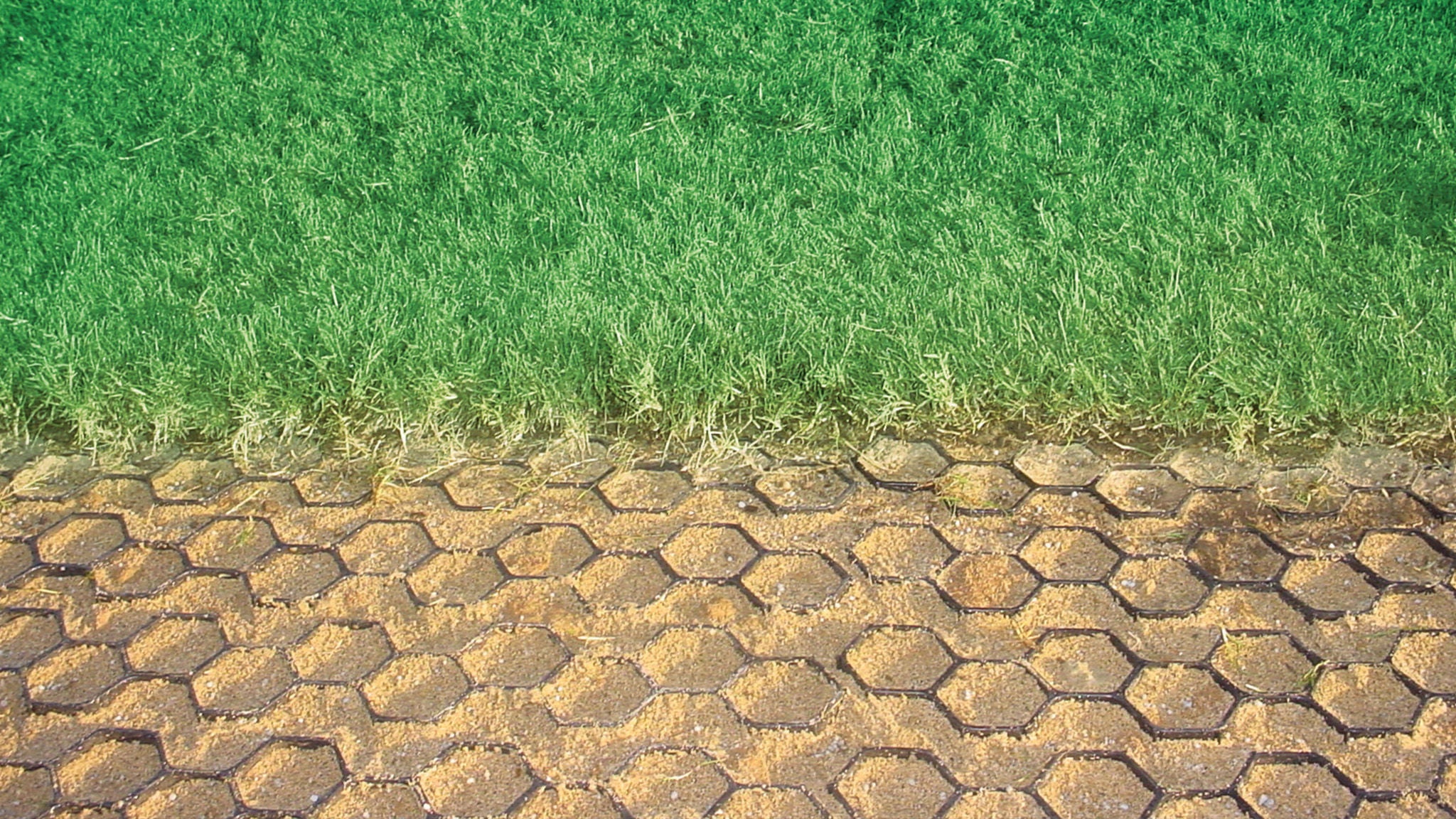

Create a drivable grass surface as a reinforced turf system that can support heavy vehicles with EZ Roll® Grass Pavers. Maintains permeable conditions on grass or meadows, unlike impervious surfaces which do not reduce runoff.
Alt Text Goes Here

Key Features

  • Unfilled compressive strength of 53,683 psf; supports H-20 and H-25 loads; built for durability with a life expectancy of 25 years when well maintained.
  • Panels come preassembled in easy-to-install rolls; top-down locking tabs snap together for a quicker, easier installation; no tools required.

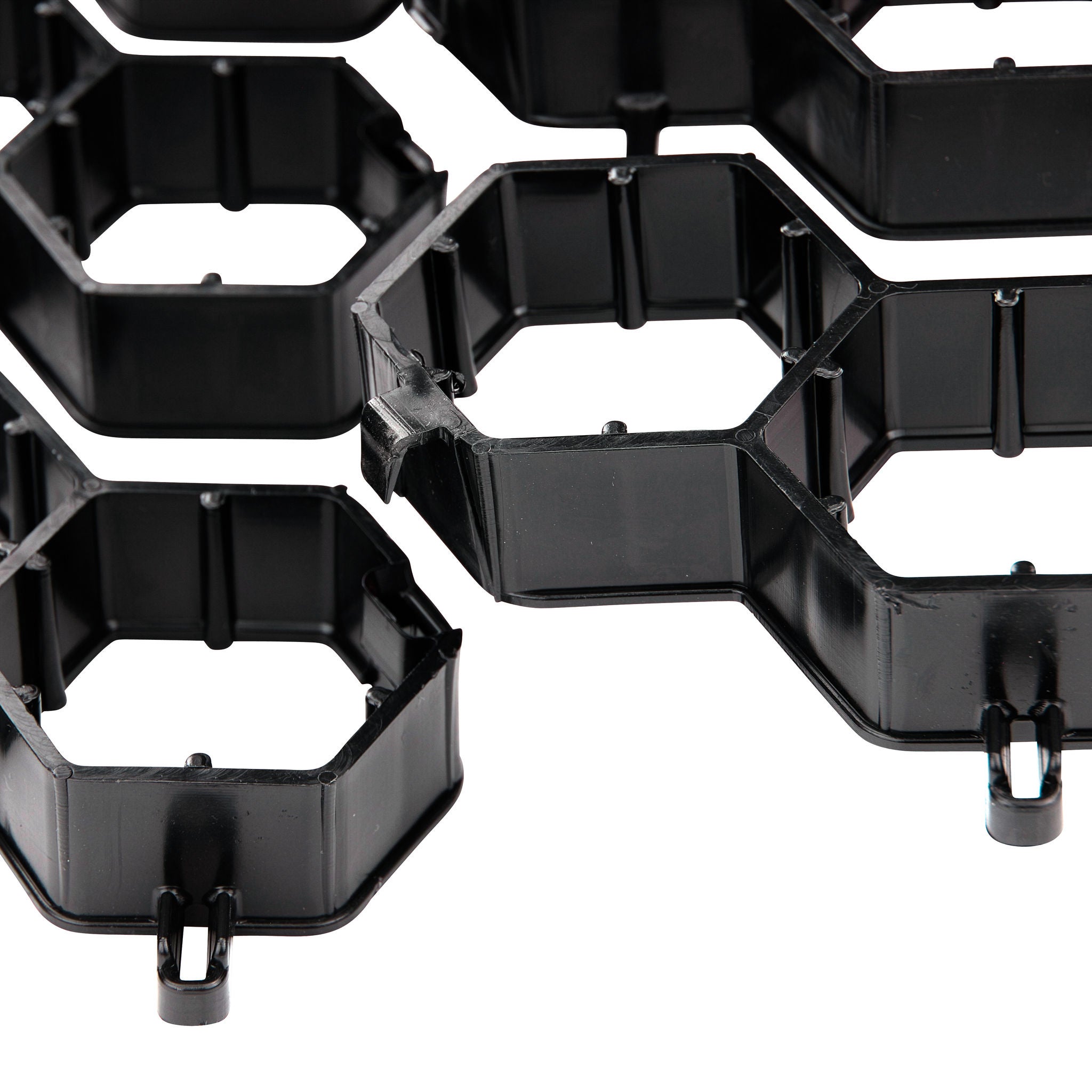

  • Each 2 ft. X 2 ft. section features 72 nested honeycomb cells with lateral connection points
  • Interconnected hexagonal cells with shared walls protect the root zone and prevent soil compaction that would inhibit healthy root growth
  • May contribute points for LEED certification

Applications

  • An alternative to traditional paving methods such as concrete and asphalt, EZ Roll® Grass Pavers create a durable and drivable grass surface that can support heavy vehicles while blending into the surroundings.

  • Ideal for emergency vehicle access roads, parking lots, golf cart paths, jogging tracks, bike paths, ATV paths, equestrian parks, trail reinforcements, and runoff areas.

  • Best used in areas where subsoil infiltrates the water; poor draining soil may require an underdrain.

Installation & Maintenance

  1. Prepare subbase as instructed; Roll pavers out.
  2. Snap pavers together with lateral locking tab system.
  3. Add soil infill; top with sod or seed; see technical guide for details.
  4. Periodically check for damage and replace panel as needed; see maintenance and operation guide for details.

Materials & Sustainability

  • Paver cells made of high-density polyethylene (HDPE) containing recycled content; treated with UV inhibitors to prevent cracking

  • Pavers are responsibly constructed using recycled materials; pavers reduce stormwater runoff; slow down erosion; recharge groundwater by allowing water to absorb into the ground

  • Made in the USA

Product Models

Part Number
Description
EZ4X243.96 ft. x 24 ft. EZ Roll®Grass Pavers, 96 sq. ft. per roll, Black
EZ4X1503.96 ft. x 152 ft. EZ Roll®Grass Pavers, 602 sq. ft. per roll, Black
