Swing Riser Pipe & IPS Flex Pipe

Swing Riser Pipe & IPS Flex Pipe

Swing riser pipe transitions from a PVC main water line to sprinklers. IPS flex pipe transitions from a PVC supply line to any low-flow, drip-watering device
Alt Text Goes Here

Key Features

  • Swing riser pipe is tubing made of polyethylene using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking
  • IPS flex pipe is made of flexible polyvinyl chloride and constructed with 100% virgin content for durability
  • Tubing coil comes shrink-wrapped for convenience and is easy to access as needed

Applications

  • Swing riser pipe: use to transition from a 1/2 in. PVC main line in Swing Pipe Assembly to sprinkler
    • Use for subsurface or on grade installation; works to transport water to trees shrubs, flower beds, groundcover, vegetable gardens, plants in pots, planter boxes, and hanging baskets

  • IPS flex pipe: use to transport water from rigid PVC supply line to any low-flow, drip-watering device
    • Use for subsurface or on grade installation; works to transport water to trees, shrubs, flower beds, groundcover, vegetable gardens, and vineyards

  • As part of a complete drip irrigation system, the Swing Riser Pipe and IPS flex pipe transport water to the area to be irrigated

Installation & Maintenance

  • To connect the swing riser pipe: connect to the main line with a slip fitting; connect (1/2) riser to sprinkler system

  • To connect the IPS flex pipe: connect to the main line with a slip fitting; connect other end directly to emitter to deliver water to plants

  • Periodically check for damage or leaks and replace as needed

Materials & Sustainability

  • Swing Riser Pipe is made of polyethylene using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking

  • IPS Flex Pipe is made of flexible polyvinyl chloride (PVC) tubing constructed with 100% virgin content for durability

  • Made in the USA

  • Drip irrigation can reduce water usage by up to 70% compared to conventional sprinkler irrigation when used properly; for most drip irrigation products, water is applied precisely and at the rate the soil can accept it to prevent runoff and erosion

Product Models

Part Number
Description
SRP FLEX/201/2 in. Super Flexee™ Swing Riser Pipe (0.490 in. ID X 0.690 in. OD), Black Polyethylene, 20 ft.
SRP FLEX/100SH1/2 in. Super Flexee™ Swing Riser Pipe (0.490 in. ID X 0.690 in. OD), Black Polyethylene, 100 ft., Shrinkwrapped

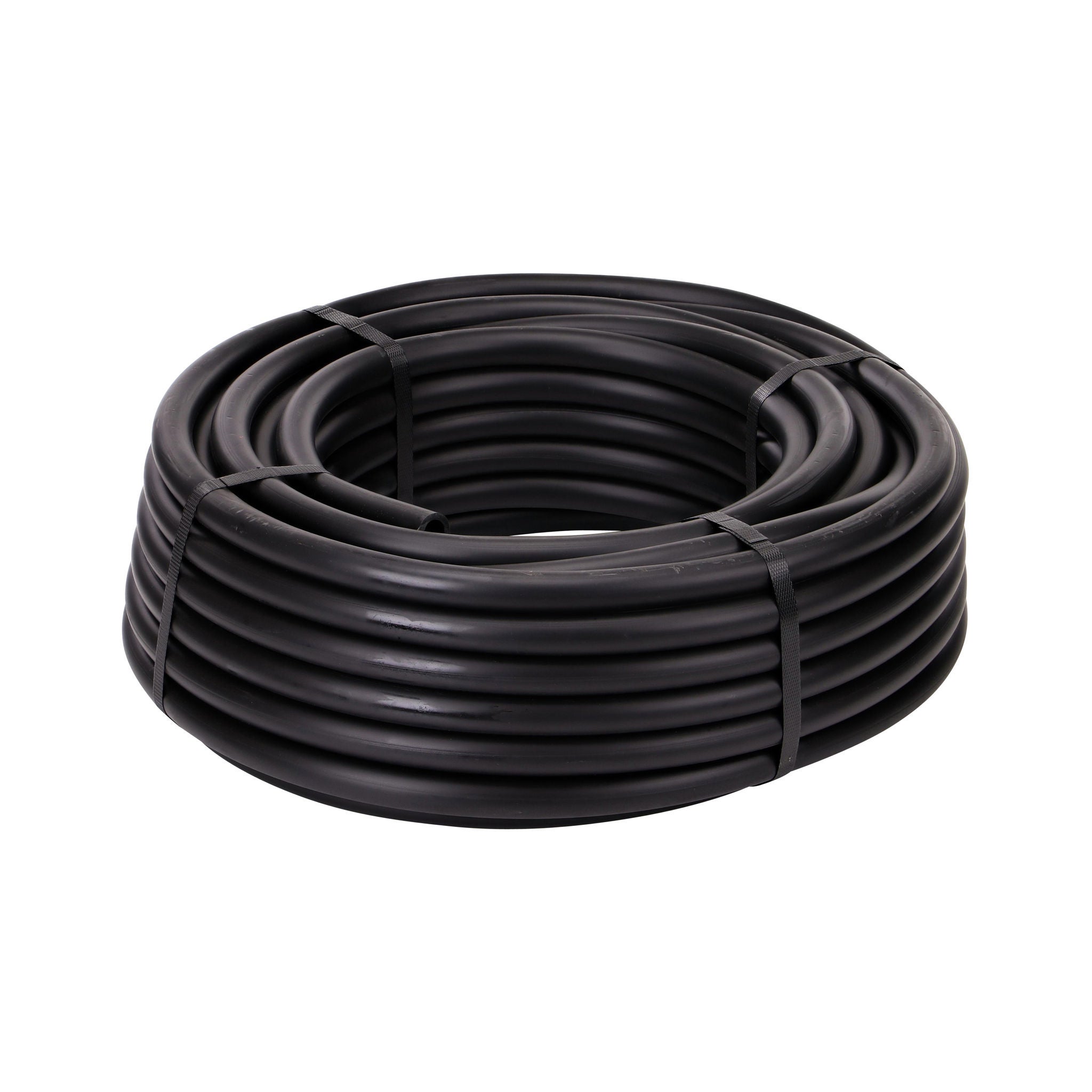

IPS 50/1001/2 in. IPS Flex Pipe (0.546 in. ID X 0.840 in. OD, 0.147 in. Wall), Black Vinyl, 100 ft.
IPS 75/1003/4 in. IPS Flex Pipe (0.742 in. ID X 1.050 in. OD, 0.154 in. Wall), Black Vinyl, 100 ft.
