NDS Poly Tubing

Polyethylene Tubing

NDS poly tubing is constructed using a layering method for durability: the outer layer, which is exposed to the sun, and the inner layer, which is exposed to water, is made of 100% virgin content; the middle layer is composed of recycled content
Alt Text Goes Here

Key Features

  • Tubing is made of polyethylene using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking

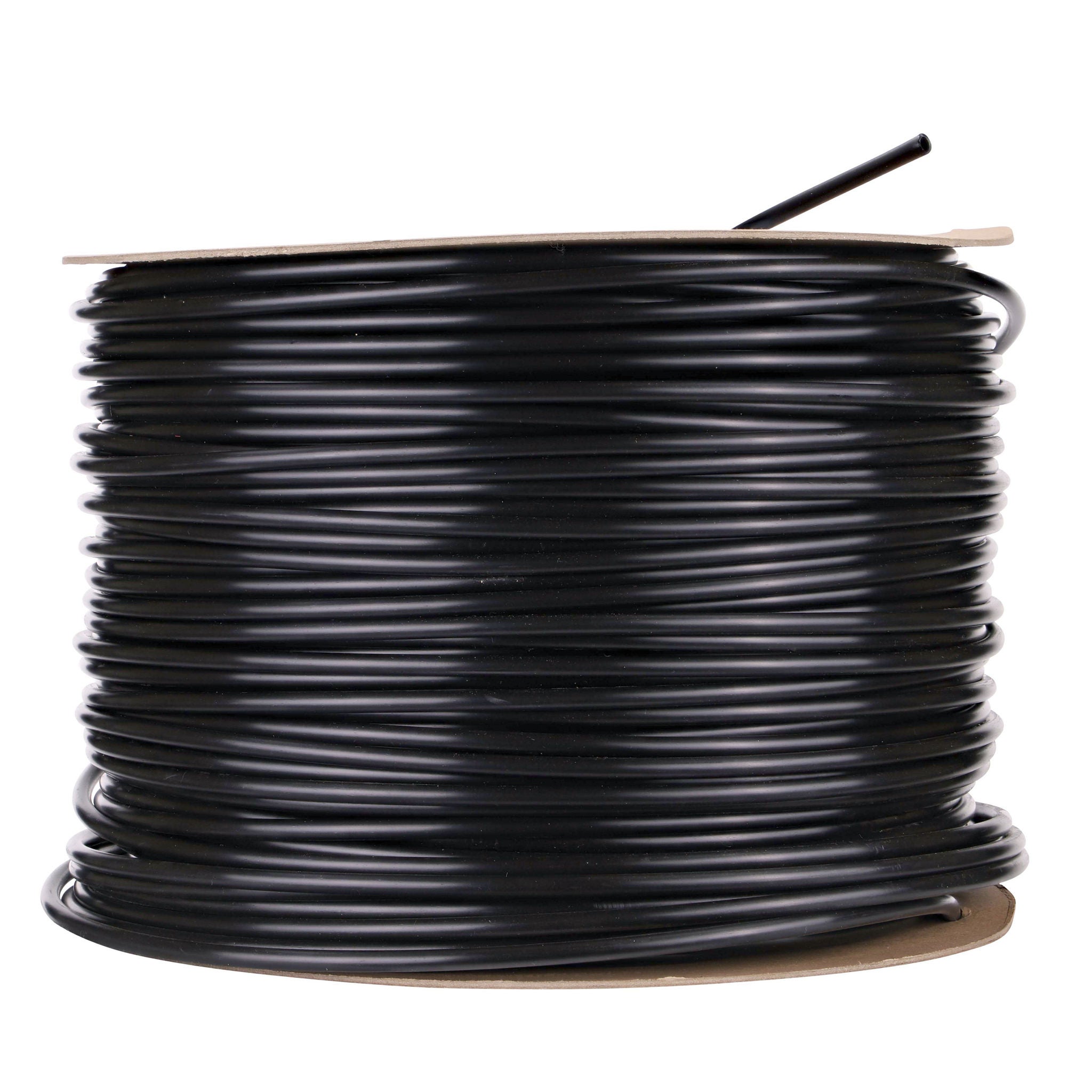

  • Tubing coil comes shrink-wrapped for convenience and is easy to access as needed

Applications

  • Use 1/8 in. tubing to water nursery plants; 1/4 in. tubing to create feeder lines or directly deliver water to plants; 1/2 in. and larger tubing to create a main supply line to transport water to the area to be irrigated

  • Use for subsurface or on grade installation; works to transport water to trees, shrubs, flower beds, groundcover, vegetable gardens, plants in pots, planter boxes, and hanging baskets

  • As part of a complete drip irrigation system, tubing transports water to the area to be irrigated

Installation & Maintenance

  • Connect sections of tubing with irrigation fittings to create  layout

  • Periodically check for damage or leaks and replace as needed

Materials & Sustainability

  • Tubing is made of polyethylene using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking

  • Made in the USA

  • Drip irrigation can reduce water usage by up to 70% compared to conventional sprinkler irrigation when used properly; for most drip irrigation products, water is applied precisely and at the rate the soil can accept it to prevent runoff and erosion

Product Models

Part Number
Description
A 185/1001/8 in. Distribution Tubing (0.125 in. ID X 0.185 in. OD), Black Polyethylene, 100 ft.
A 185/10001/8 in. Distribution Tubing (0.125 in. ID X 0.185 in. OD), Black Polyethylene, 1,000 ft.
A 2201/4 in. Distribution Tubing (0.160 in. ID X 0.220 in. OD), Black Polyethylene, 1,500 ft.
A 220/1001/4 in. Distribution Tubing (0.160 in. ID X 0.220 in. OD), Black Polyethylene, 100 ft.
A 220/5001/4 in. Distribution Tubing (0.160 in. ID X 0.220 in. OD), Black Polyethylene, 500 ft.
A 220/10001/4 in. Distribution Tubing (0.160 in. ID X 0.220 in. OD), Black Polyethylene, 1,000 ft.
A 220/25001/4 in. Distribution Tubing (0.160 in. ID X 0.220 in. OD), Black Polyethylene, 2,500 ft.
A 2501/4 in. Distribution Tubing (0.170 in. ID X 0.250 in. OD), Black Polyethylene, 1,250 ft.
A 250/151/4 in. Distribution Tubing (0.170 in. ID X 0.250 in. OD), Black Polyethylene, 15 ft.
A 250/1001/4 in. Distribution Tubing (0.170 in. ID X 0.250 in. OD), Black Polyethylene, 100 ft.
A 250/5001/4 in. Distribution Tubing (0.170 in. ID X 0.250 in. OD), Black Polyethylene, 500 ft.
A 250/10001/4 in. Distribution Tubing (0.170 in. ID X 0.250 in. OD), Black Polyethylene, 1,000 ft.
A 250/1000B1/4 in. Distribution Tubing (0.170 in. ID X 0.250 in. OD), Black Polyethylene, 1,000 ft. in Bucket
A 250/25001/4 in. Distribution Tubing (0.170 in. ID X 0.250 in. OD), Black Polyethylene, 2,500 ft.
A 250BR/1001/4 in. Distribution Tubing (0.170 in. ID X 0.250 in. OD), Brown Polyethylene, 100 ft.

Part Number
Description
A 620/5001/2 in. Supply Tubing (0.520 in. ID X 0.620 in. OD), Black Polyethylene, 500 ft.
A 620BR/1001/2 in. Supply Tubing (0.520 in. ID X 0.620 in. OD), Brown Polyethylene, 100 ft.
A 620BR/5001/2 in. Supply Tubing (0.520 in. ID X 0.620 in. OD), Brown Polyethylene, 500 ft.
A 7001/2 in. Supply Tubing (0.600 in. ID X 0.700 in. OD), Black Polyethylene, 500 ft.
A 700SH1/2 in. Supply Tubing (0.600 in. ID X 0.700 in. OD), Black Polyethylene, 500 ft., Shrinkwrapped
A 700/151/2 in. Supply Tubing (0.600 in. ID X 0.700 in. OD), Black Polyethylene, 15 ft.
A 700/1001/2 in. Supply Tubing (0.600 in. ID X 0.700 in. OD), Black Polyethylene, 100 ft.
A 700/100SH1/2 in. Supply Tubing (0.600 in. ID X 0.700 in. OD), Black Polyethylene, 100 ft., Shrinkwrapped
A 700/2501/2 in. Supply Tubing (0.600 in. ID X 0.700 in. OD), Black Polyethylene, 250 ft.
A 700/10001/2 in. Supply Tubing (0.600 in. ID X 0.700 in. OD), Black Polyethylene, 1,000 ft.
A 7101/2 in. Supply Tubing (0.620 in. ID X 0.710 in. OD), Black Polyethylene, 500 ft.
A 710/1001/2 in. Supply Tubing (0.620 in. ID X 0.710 in. OD), Black Polyethylene, 100 ft.
A 710/100SH1/2 in. Supply Tubing (0.620 in. ID X 0.710 in. OD), Black Polyethylene, 100 ft., Shrinkwrapped
A 710SH1/2 in. Supply Tubing (0.620 in. ID X 0.710 in. OD), Black Polyethylene, 500 ft., Shrinkwrapped
A 710/10001/2 in. Supply Tubing (0.620 in. ID X 0.710 in. OD), Black Polyethylene, 1,000 ft.
A 710GRS1/2 in. Supply Tubing (0.620 in. ID X 0.710 in. OD), Black with Green Stripe Polyethylene, 500 ft.
A 710PS1/2 in. Supply Tubing (0.620 in. ID X 0.710 in. OD), Black with Purple Stripe Polyethylene, 500 ft.
A 710RDS1/2 in. Supply Tubing (0.620 in. ID X 0.710 in. OD), Black with Red Stripe Polyethylene, 500 ft.
A 710WHS1/2 in. Supply Tubing (0.620 in. ID X 0.710 in. OD), Black with White Stripe Polyethylene, 500 ft.
A 710YS1/2 in. Supply Tubing (0.620 in. ID X 0.710 in. OD), Black with Yellow Stripe Polyethylene, 500 ft.
A 660BR/100S17mm Supply Tubing (0.560 in. ID X 0.660 in. OD), Brown Polyethylene, 100 ft.
A 660BR/250S17mm Supply Tubing (0.560 in. ID X 0.660 in. OD), Brown Polyethylene, 250 ft.
A 660BR/500S17mm Supply Tubing (0.560 in. ID X 0.660 in. OD), Brown Polyethylene, 500 ft.
A 9403/4 in. Supply Tubing (0.830 in. ID X 0.940 in. OD), Black Polyethylene, 500 ft.
A 940/503/4 in. Supply Tubing (0.830 in. ID X 0.940 in. OD), Black Polyethylene, 50 ft.
A 940/1003/4 in. Supply Tubing (0.830 in. ID X 0.940 in. OD), Black Polyethylene, 100 ft.
A 940/100DW3/4 in. Supply Tubing (0.830 in. ID X 0.940 in. OD), Black Polyethylene, 100 ft. (Made to Order)
A 940/2503/4 in. Supply Tubing (0.830 in. ID X 0.940 in. OD), Black Polyethylene, 250 ft.
A 940/10003/4 in. Supply Tubing (0.830 in. ID X 0.940 in. OD), Black Polyethylene, 1,000 ft.
A 940GRS3/4 in. Supply Tubing (0.830 in. ID X 0.940 in. OD), Black with Green Stripe Polyethylene, 500 ft.
A 940HT3/4 in. Supply Tubing (0.830 in. ID X 0.940 in. OD), Black Polyethylene with Heavy Wall, 500 ft. (Made to Order)
A 940PS3/4 in. Supply Tubing (0.830 in. ID X 0.940 in. OD), Black with Purple Stripe Polyethylene, 500 ft.
A 940RDS3/4 in. Supply Tubing (0.830 in. ID X 0.940 in. OD), Black with Red Stripe Polyethylene, 500 ft.
A 940WHS3/4 in. Supply Tubing (0.830 in. ID X 0.940 in. OD), Black with White Stripe Polyethylene, 500 ft.
A 940YS3/4 in. Supply Tubing (0.830 in. ID X 0.940 in. OD), Black with Yellow Stripe Polyethylene, 500 ft.
A 12001 in. Supply Tubing (1.060 in. ID X 1.200 in. OD), Black Polyethylene, 500 ft.
