Hydro-Flo™ Jets and Assemblies

Hydro-Flo™ Jets and Assemblies

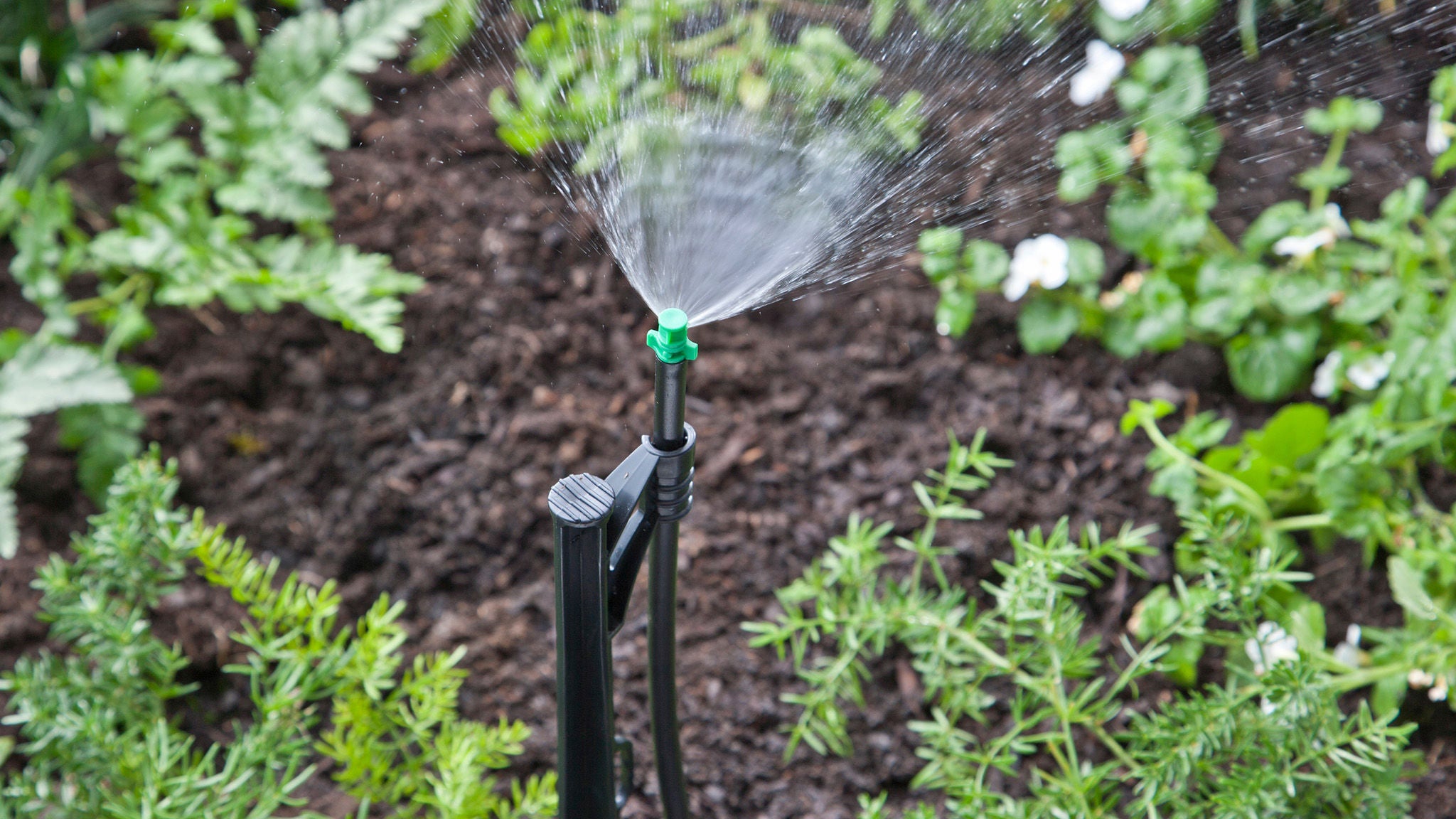

Get low-volume, overhead irrigation with the Hydro-Flo™ micro spray jet. Available with 90°, 180° and 360° fan spray
Alt Text Goes Here

Key Features

  • Available with 10-32 threaded inlet or 1/4 in. barbed inlet
  • Jet assemblies include spray jet with 1/4 in. barbed inlet, nozzle, 24 in. vinyl tubing, and 12 in. stake
  • Choose from 90°, 180°, 360° fan spray or 360° stream spray
  • Nozzle sizes: 0.03, 0.04, 0.05, and 0.06; larger nozzle sizes discharge water at a higher GPH with a longer radius
  • Designed to work with standard drip irrigation water pressures up to 35 PSI

Applications

  • Releases water with a fan or stream spray for low-volume, overhead irrigation

  • Ideal for watering groundcover, flower beds, planting beds, vegetable gardens, and plants which prefer some humidity

  • As part of a complete drip irrigation system, the jet-spray delivers water gradually; with a non-pressure compensating emitter, expect varying water flow based on length of tubing or elevation, with higher flow closer to the water source

Installation & Maintenance

  • For barbed inlets: attach 1/4 in. barbed inlet found at end of 1/4 in. tubing into a punched hole in supply tubing, and insert stake into desired location in the ground

  • For 10-32 threaded inlets: attach inlet onto a riser; connect 1/4 in. distribution tubing (A220 and A250) or 1/4 in. Dura Flo™ JR dripline to inlet barb on riser; lift riser and emitter with stake

  • Periodically check for damage or leaks and repair as needed; recommended operation pressure is up to 35 PSI

Materials & Sustainability

  • Emitter made of polyethylene treated with UV inhibitors to prevent fading and cracking

  • Drip irrigation can reduce water usage by up to 70% compared to conventional sprinkler irrigation when used properly; for most drip irrigation products, water is applied precisely and at the rate the soil can accept it to prevent runoff and erosion

Product Models

Part Number
Description
TF 418Hydro-Flo™ Micro Spray Jet, 180-Degree Fan Spray, 0.04 in. Nozzle, 10-32 Threaded Inlet, 100-Pack
TF 436Hydro-Flo™ Micro Spray Jet, 360-Degree Fan Spray, 0.04 in. Nozzle, 10-32 Threaded Inlet, 100-Pack
TF 518Hydro-Flo™ Micro Spray Jet, 180-Degree Fan Spray, 0.05 in. Nozzle, 10-32 Threaded Inlet, 100-Pack
TF 618Hydro-Flo™ Micro Spray Jet, 180-Degree Fan Spray, 0.06 in. Nozzle, 10-32 Threaded Inlet, 100-Pack
TF 636Hydro-Flo™ Micro Spray Jet, 360-Degree Fan Spray, 0.06 in. Nozzle, 10-32 Threaded Inlet, 100-Pack
VF 90Hydro-Flo™ Adjustable Jet, 90-Degree Fan Spray, 0 to 25 GPH, 10-32 Threaded Inlet, 100-Pack
VF 180Hydro-Flo™ Adjustable Jet, 180-Degree Fan Spray, 0 to 26 GPH, 10-32 Threaded Inlet, 100-Pack

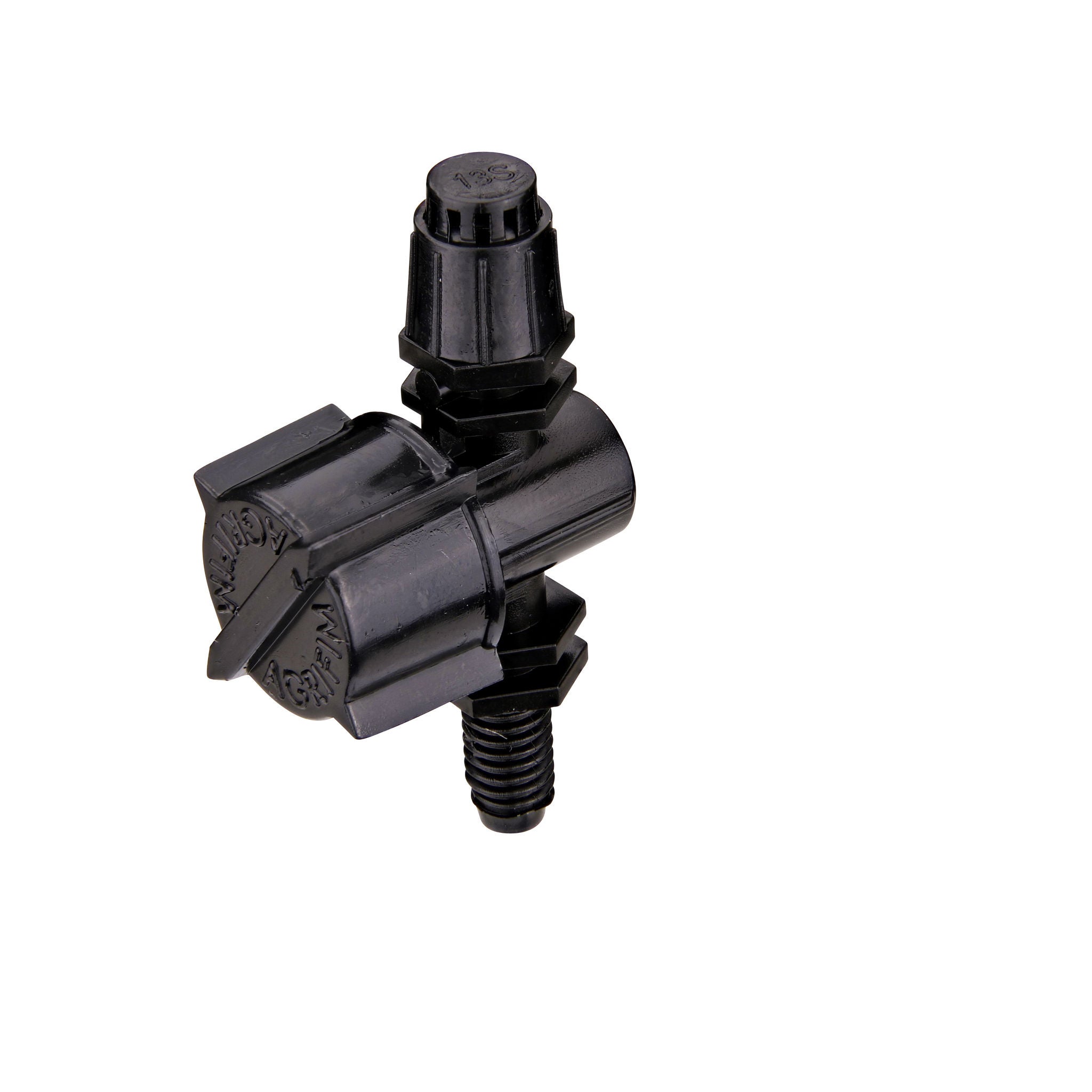

VF 360Hydro-Flo™ Adjustable Jet, 360-Degree Stream Spray, 0 to 21 GPH, 10-32 Threaded Inlet, 100-Pack
TA 24-1F6Hydro-Flo™ Jet Assembly with 2-Piece Jet, 360-Degree Fan Spray, 0.06 in. Nozzle, 24 in. Vinyl Tubing with 1/4 in. Barbed Inlet on 12 in. Stake, 100-Pack
TA 24-1H3Hydro-Flo™ Jet Assembly with 2-Piece Jet, 180-Degree Fan Spray, 0.03 in. Nozzle, 24 in. Vinyl Tubing with 1/4 in. Barbed Inlet on 12 in. Stake, 100-Pack
TA 24-1H4Hydro-Flo™ Jet Assembly with 2-Piece Jet, 180-Degree Fan Spray, 0.04 in. Nozzle, 24 in. Vinyl Tubing with 1/4 in. Barbed Inlet on 12 in. Stake, 100-Pack
TA 24-1H5Hydro-Flo™ Jet Assembly with 2-Piece Jet, 180-Degree Fan Spray, 0.05 in. Nozzle, 24 in. Vinyl Tubing with 1/4 in. Barbed Inlet on 12 in. Stake, 100-Pack
TA 24-1H6Hydro-Flo™ Jet Assembly with 2-Piece Jet, 180-Degree Fan Spray, 0.06 in. Nozzle, 24 in. Vinyl Tubing with 1/4 in. Barbed Inlet on 12 in. Stake, 100-Pack
TA 24-1Q6Hydro-Flo™ Jet Assembly with 2-Piece Jet, 90-Degree Fan Spray, 0.06 in. Nozzle, 24 in. Vinyl Tubing with 1/4 in. Barbed Inlet on 12 in. Stake, 100-Pack
TA 24-2H3Hydro-Flo™ Jet Assembly with 1-Piece Jet, 180-Degree Fan Spray, 0.03 in. Nozzle, 24 in. Vinyl Tubing, 1/4 in. Barbed Inlet on 12 in. Stake, 100-Pack
TA 24-3H/01Hydro-Flo™ Jet Assembly with Adjustable Jet, 180-Degree Fan Spray, 0.03 in. Nozzle, 24 in. Vinyl Tubing, 1/4 in. Barbed Inlet on 12 in. Stake
TA 24-3HHydro-Flo™ Jet Assembly with Adjustable Jet, 180-Degree Fan Spray, 0.03 in. Nozzle, 24 in. Vinyl Tubing, 1/4 in. Barbed Inlet on 12 in. Stake, 100-Pack
TA 24-4Assembly (No Jet), 24 in. Vinyl Tubing with 1/4 in. Barbed Inlet on 12 in. Stake, 100-Pack
TA 24-7Valve Assembly (No Jet), 24 in. Vinyl Tubing with 1/4 in. Barbed Inlet, on 12 in. Stake, 100-Pack
