Insert Fittings

NDS insert fittings are made to fit 17mm tubing or dripline. They feature barbed ends that fit into the tubing or dripline and anchor into place. Selection includes the ball valve, coupling, cross, elbow, tee, and wye.
Alt Text Goes Here

Key Features

  • Insert coupling, cross, elbow, tee, and wye connect sections of 17mm supply tubing or dripline
  • Insert barb ball valve manages water flow with a control dial
  • The barbed ends insert into drip tubing and anchor into place
  • Insert fittings are designed to work with standard drip irrigation water pressures up to 50 PSI
  • Works with 17mm tubing or dripline and other products with compatible connection type

Applications

  • Use fittings to set up a new drip irrigation system, expand an existing system, or make repairs

  • Use for subsurface or on grade installation; works with tubing or dripline to transport water to trees shrubs, flower beds, groundcover, vegetable gardens, plants in pots, planter boxes, and hanging baskets

  • As part of a complete drip irrigation system, the 17mm fitting fits 17mm tubing or 17mm dripline or to other drip irrigation parts to transport water to the area to be irrigated

Installation & Maintenance

  • For the connectors, insert barbed fitting into 17mm tubing as far as it will go; barb will hold the product in place

  • For the ball valve, install between two lengths of 17mm tubing where the flow of water needs to be controlled; insert barbed ends into tubing

  • Periodically check for leaks or damage and repair as needed; recommended operating pressure for most fittings is up to 50 PSI

Materials & Sustainability

  • Ball valve is made of Acrylonitrile Butadiene Styrene (ABS) treated with UV inhibitors to prevent fading and cracking

  • Connectors are made of polyoxymethylene (POM), also known as acetal, treated with UV inhibitors to prevent fading and cracking

  • Ball valve is made in Austria

  • Connectors are made in the USA

  • Drip irrigation can reduce water usage by up to 70% compared to conventional sprinkler irrigation when used properly; for most drip irrigation products, water is applied precisely and at the rate the soil can accept it to prevent runoff and erosion

Product Models

Part Number
Description

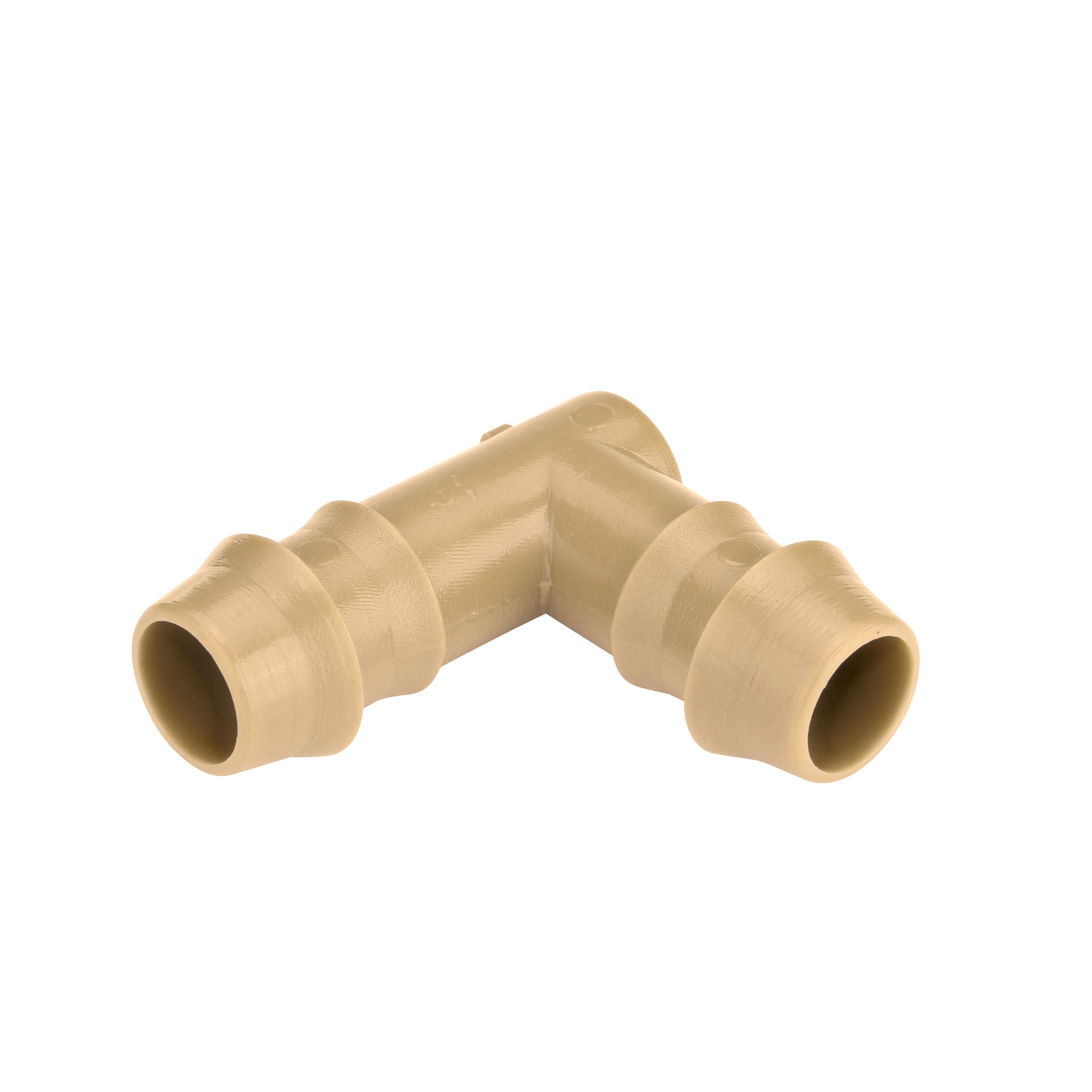

BV 1717mm Insert Barb Ball Valve, 5-Pack
BV 17-PK117mm Insert Barb Ball Valve
C 1717mm Insert Barb Coupling, 25-Pack
C 17-PK1017mm Insert Barb Coupling, 10-Pack
CX 1717mm Insert Barb Cross, 10-Pack
EL 1717mm Insert Barb Elbow, 25-Pack
EL 17-PK1017mm Insert Barb Elbow, 10-Pack
T 1717mm Insert Barb Tee, 25-Pack
T 17-PK1017mm Insert Barb Tee, 10-Pack
YMA 177517mm Insert Barb Wye X 1/2 in. MPT, 10-Pack
YMA 1775-PK1017mm Insert Barb Wye X 1/2 in. MPT, 10-Pack
TMA 175017mm Insert Barb Tee X 1/2 in. MPT Adapter, 10-Pack
