Compression Fittings

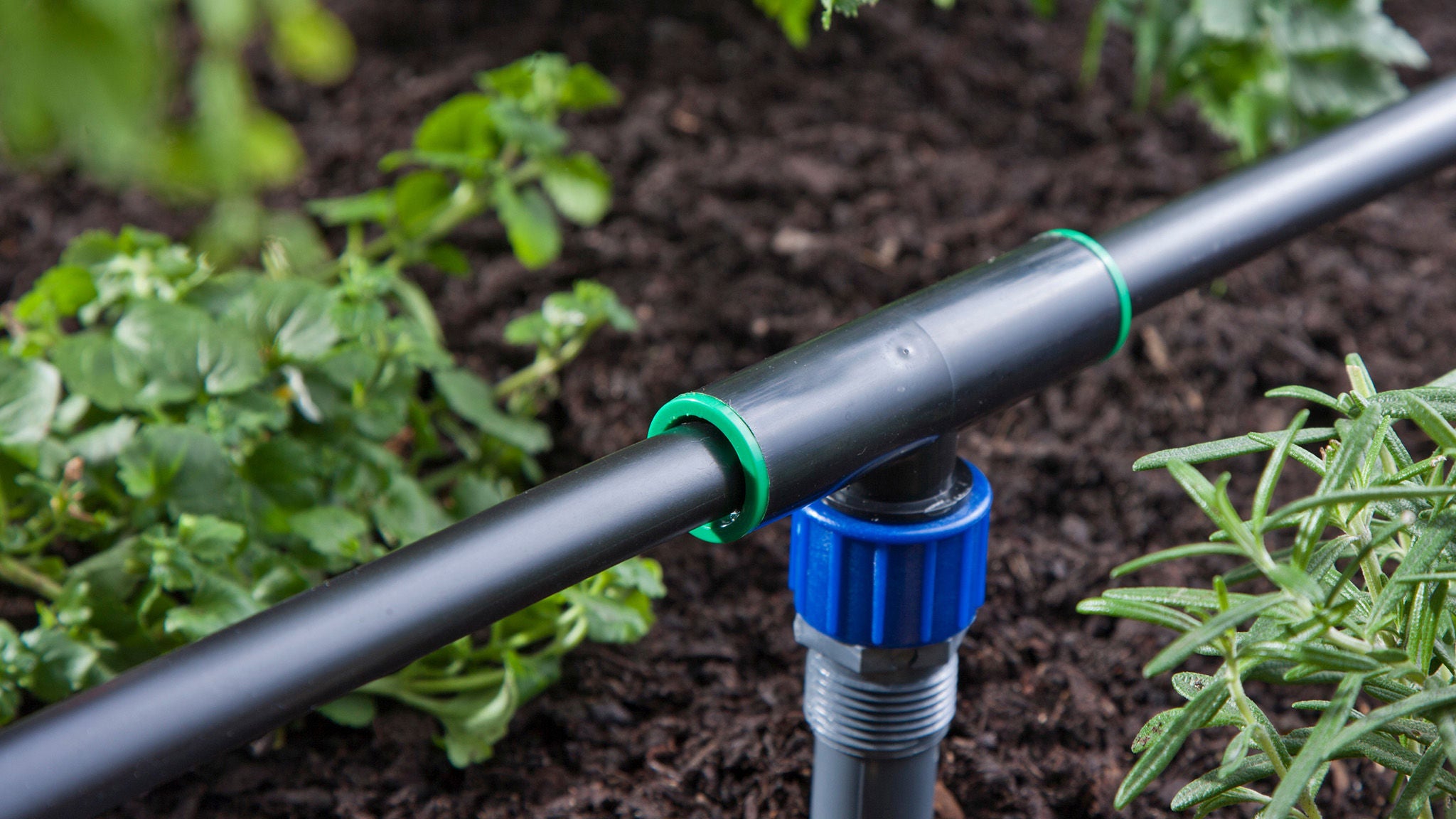

Compression fittings connect sections of tubing or dripline with a compression ring, where an internal barb compresses the inserted tube and holds it in place. Swivel compression fittings have an end that rotates to prevent tubing from kinking.
Alt Text Goes Here

Key Features

  • Creates a watertight connection
  • Internal barb compresses the inserted tubing to hold it in place
  • Unlike a barbed fitting, the tubing is not stretched out to connect to the fitting
  • For compression fittings with swivel: built-in swivel allows part to be screwed or unscrewed without kinking or twisting the tubing
  • Compression fittings are designed to work with standard drip irrigation water pressures up to 50 PSI

Applications

  • Use fittings to set up a new drip irrigation system, expand an existing system, or make repairs

  • Use for subsurface or on grade installation; works with tubing or dripline to transport water to trees shrubs, flower beds, groundcover, vegetable gardens, plants in pots, planter boxes, and hanging baskets

  • As part of a complete drip irrigation system, the compression coupling connects sections of tubing to transport water to the area to be irrigated; cap closes off the end of the line to stop the flow of water

Installation & Maintenance

  • Cut drip tubing straight for tight fit; rock end of tubing back and forth while pushing into compression fitting, where an internal barb will compress tube to hold in place

  • For easier tubing insertion, soak rigid tubing end in hot water or leave out in sun

  • Periodically check for leaks or damage and repair as needed; recommended operating pressure for most fittings is up to 50 PSI

Materials & Sustainability

  • Fitting made of Acrylonitrile Butadiene Styrene (ABS) treated with UV inhibitors to prevent fading and cracking

  • Drip irrigation can reduce water usage by up to 70% compared to conventional sprinkler irrigation when used properly; for most drip irrigation products, water is applied precisely and at the rate the soil can accept it to prevent runoff and erosion

Product Models

Part Number
Description
CEP 600Compression End Cap 600 Series, 25-Pack
CEP 700Compression End Cap 700 Series, 25-Pack
CEP 710Compression End Cap 710 Series, 25-Pack
CEP 710-PK10Compression End Cap 710 Series, 10-Pack
CEP 900Compression End Cap 900 Series, 25-Pack
CEP 900-PK10Compression End Cap 900 Series, 10-Pack
CC 600Compression Coupling, 600 Series, 25-Pack
CC 700Compression Coupling, 700 Series, 25-Pack
CC 710Compression Coupling, 710 Series, 25-Pack
CC 710-PK10Compression Coupling, 710 Series, 10-Pack
CC 900Compression Coupling, 900 Series, 25-Pack
CC 900-PK10Compression Coupling, 900 Series, 10-Pack
CC 900-71Compression Coupling, 900 Legacy Series, 25-Pack

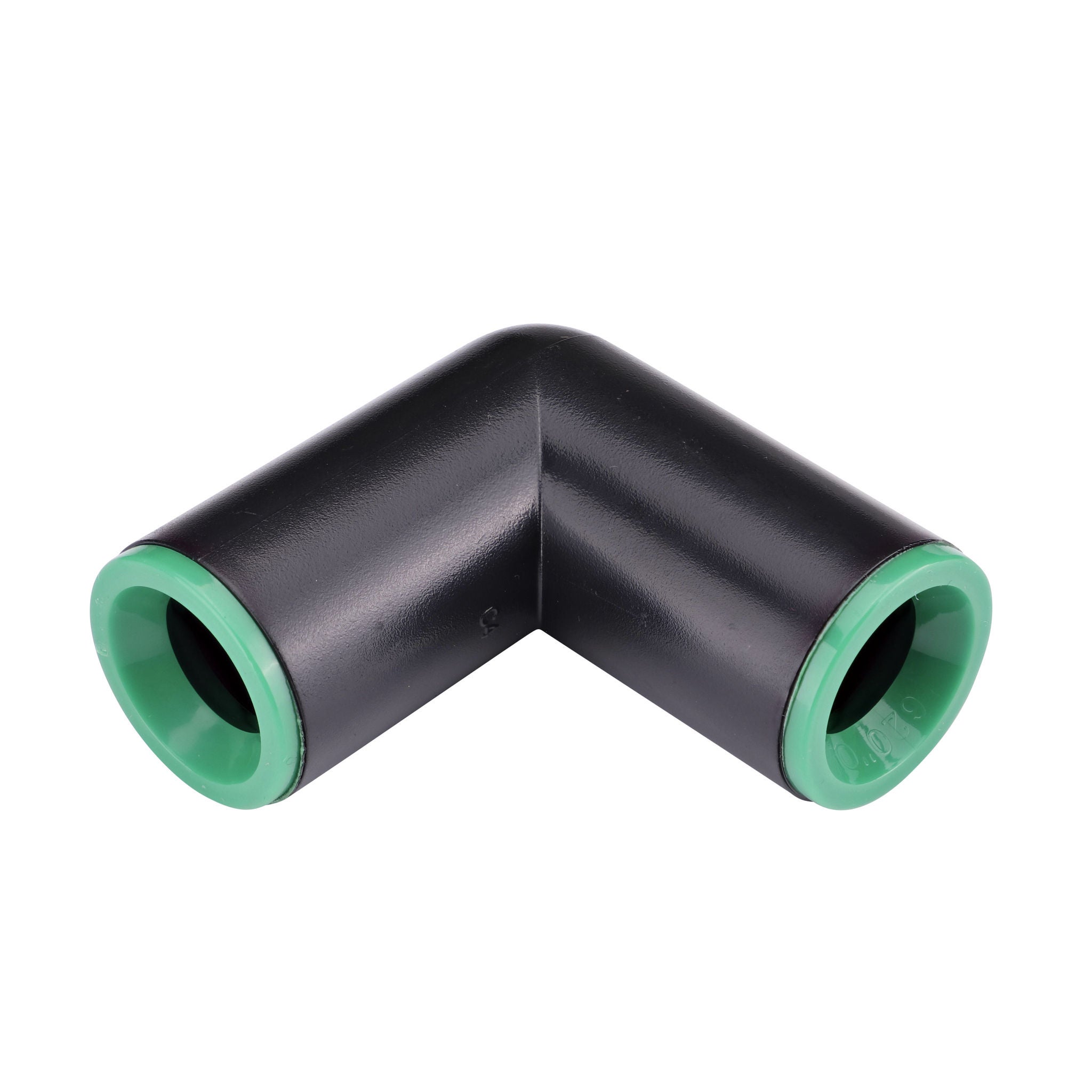

CEL 600Compression Elbow, 600 Series, 25-Pack
CEL 700Compression Elbow, 700 Series, 25-Pack
CEL 700/02Compression Elbow, 700 Series, 2-Pack
CEL 710Compression Elbow, 710 Series, 25-Pack
CEL 710-PK10Compression Elbow, 710 Series, 10-Pack
CEL 900Compression Elbow, 900 Series, 25-Pack
CEL 900-PK10Compression Elbow, 900 Series, 10-Pack
CEL 900LGCompression Elbow, 900 Legacy Series, 25-Pack
CT 500Compression Tee, 500 Series, 2-Pack
CT 600Compression Tee, 600 Series, 15-Pack
CT 700Compression Tee, 700 Series, 15-Pack
CT 700/02Compression Tee, 700 Series, 2-Pack
CT 710Compression Tee, 710 Series, 15-Pack
CT 710-PK10Compression Tee, 710 Series, 10-Pack
CT 800Compression Tee, 800 Series, 25-Pack
CT 900-PK10Compression Tee, 900 Series, 10-Pack
CT 900Compression Tee, 900 Series, 25-Pack
CT 900LGCompression Tee, 900 Legacy Series, 25-Pack
RSELW 5001/2 in. FPT Swivel Riser Elbow 500 Series Compression Adapter with Washer, 50-Pack
RSELW 7001/2 in. FPT Swivel Riser Elbow 700 Series Compression Adapter with Washer, 50-Pack
RSELW 7101/2 in. FPT Swivel Riser Elbow 710 Series Compression Adapter with Washer, 50-Pack
RSTW 7001/2 in. FPT Swivel Riser Tee 700 Series Compression Adapter with Washer, 40-Pack
RSTW 7101/2 in. FPT Swivel Riser Tee 710 Series Compression Adapter with Washer, 40-Pack
CSA 7003/4 in. FHT Swivel 700 Series Compression Adapter with 100-Mesh Filter Washer, 25-Pack
CSA 9003/4 in. FHT Swivel 900 Series Compression Adapter with 100-Mesh Filter Washer, 25-Pack
CSAW 7003/4 in. FHT Swivel 700 Series Compression Adapter with Washer, 25-Pack
CSAW 700/023/4 in. FHT Swivel 700 Series Compression Adapter with Washer, 2-Pack
CSAW 7103/4 in. FHT Swivel 710 Series Compression Adapter with Washer, 25-Pack
CSAW 9003/4 in. FHT Swivel 900 Series Compression Adapter with Washer, 25-Pack
CSEL 7003/4 in. FHT Swivel 700 Series Compression Elbow with 100-Mesh Filter Washer, 25-Pack
CSEL 7103/4 in. FHT Swivel 710 Series Compression Elbow with 100-Mesh Filter Washer, 25-Pack
CSELW 7003/4 in. FHT Swivel 700 Series Compression Elbow with Washer, 25-Pack
CSELW 7103/4 in. FHT Swivel 710 Series Compression Elbow with Washer, 25-Pack
CST 6003/4 in. FHT Swivel 600 Series Compression Tee with 100-Mesh Filter Washer, 15-Pack
CST 7003/4 in. FHT Swivel 700 Series Compression Tee with 100-Mesh Filter Washer, 15-Pack
CST 8003/4 in. FHT Swivel 800 Series Compression Tee with 100-Mesh Filter Washer, 25-Pack
CST 9003/4 in. FHT Swivel 900 Series Compression Tee with 100-Mesh Filter Washer, 25-Pack
CSTW 6003/4 in. FHT Swivel 600 Series Compression Tee with Washer, 15-Pack
CSTW 9003/4 in. FHT Swivel 900 Series Compression Tee with Washer, 25-Pack
RCC 7090Reducing Compression Coupling, 900 Series to 700 Series, 25-Pack
RCC 8090Reducing Compression Coupling, 900 Series to 800 Series, 25-Pack
RCT 997Reducing Compression Tee, 700 Series to Dual 600 Series, 25-Pack
CMAH 7003/4 in. MHT 700 Series Compression Adapter, 50-Pack
CMAP 5-6001/2 in. MPT 600 Series Compression Adapter, 50-Pack
CMAP 5-7001/2 in. MPT 700 Series Compression Adapter, 50-Pack
CMAP 5-7101/2 in. MPT 710 Series Compression Adapter, 50-Pack
CMAP 7003/4 in. MPT 700 Series Compression Adapter, 50-Pack
CMAP 7103/4 in. MPT 710 Series Compression Adapter, 50-Pack
CMAP 710-PK103/4 in. MPT 710 Series Compression Adapter, 10-Pack
CMAP 8003/4 in. MPT 800 Series Compression Adapter, 25-Pack
CMAP 900-PK103/4 in. MPT 900 Series Compression Adapter, 10-Pack
CMAP 9003/4 in. MPT 900 Series Compression Adapter, 25-Pack
CA 250PVC Compression Ring, 1/2 in. Slip X 250 Series Adapter, 100-Pack
CA 600PVC Compression Ring, 1/2 in. Slip X 600 Series Adapter, 100-Pack
CA 700PVC Compression Ring, 1/2 in. Slip X 700 Series Adapter, 100-Pack
CA 710PVC Compression Ring, 1/2 in. Slip X 710 Series Adapter, 100-Pack
CA 710-PK10PVC Compression Ring, 1/2 in. Slip X 710 Series Adapter, 10-Pack
CA 900PVC Compression Ring, 3/4 in. Slip X 900 Series Adapter, 100-Pack
CA 900-PK10PVC Compression Ring, 1/2 in. Slip X 900 Series Adapter, 10-Pack
