Dura Flo JR Dripline

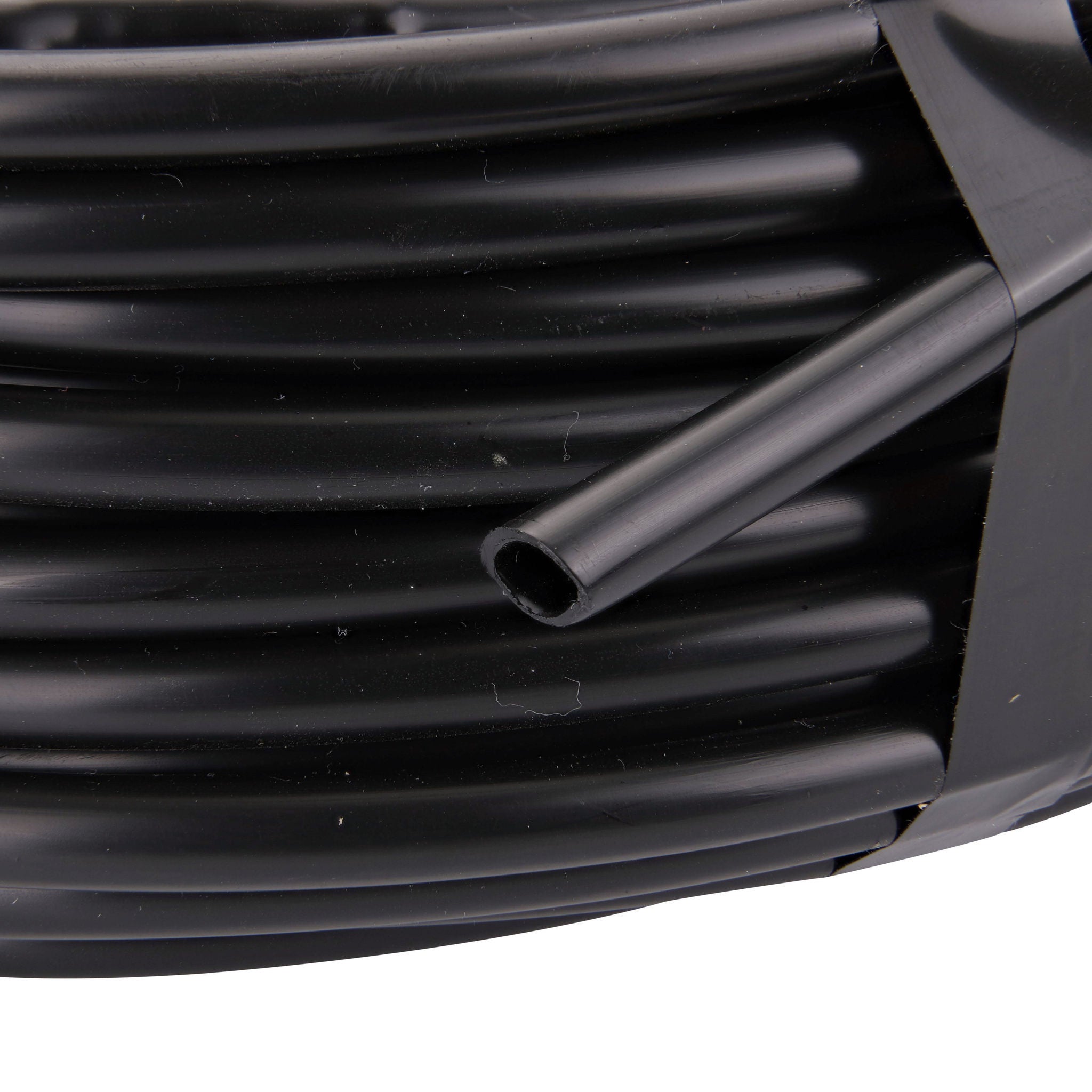

Dura Flo™ JR Dripline with Non-PC Emitters

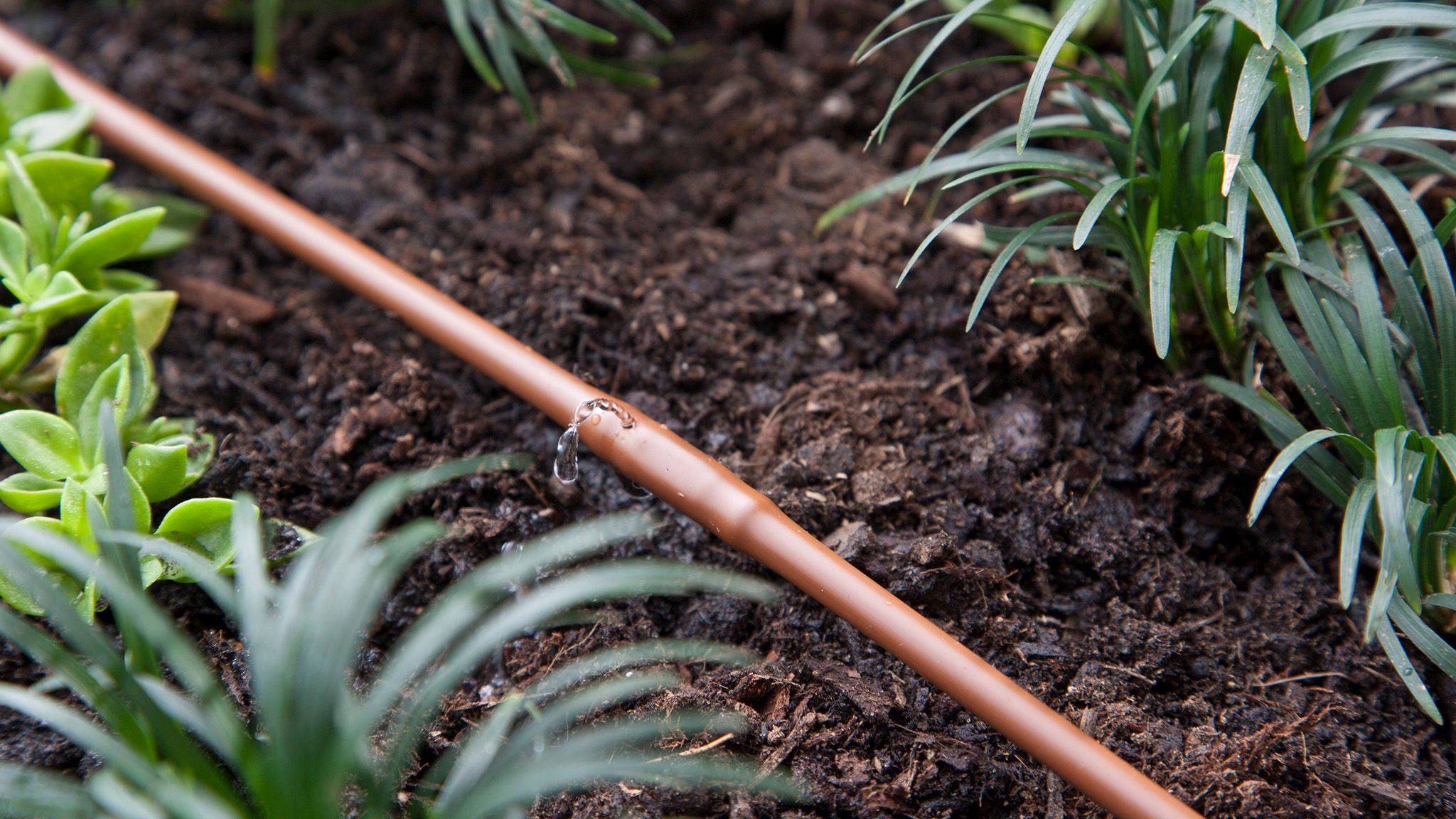

Hydrate plants along the entire line with the 1/4 in. Dura Flo™ JR Dripline. The 0.5 GPH non-pressure compensating (Non-PC) emitters are encased in the dripperline and spaced 12 in. apart.
Alt Text Goes Here

Key Features

  • Emitters feature a labyrinth design to flush out sediments that can lead to clogging
  • Emitters are spaced evenly apart along the length of dripline
  • Poly tubing is constructed using a layering method for durability: the outer and inner layers are made of 100% virgin content; the middle layer is composed of recycled content

Applications

  • Delivers water along the entire line to keep the soil moist and hydrate the plants' root zones

  • Ideal for watering closely spaced plants, hedges, vegetable gardens, planter boxes, and new plantings of ground cover; its flexibility also works as a watering ring for large pots and containers, and makes loops around large trees

  • As part of a complete drip irrigation system, the dripline delivers water along the entire line; with non-pressure compensating emitters, expect varying water flow based on length of tubing or elevation, with higher flow closer to the water source

Installation & Maintenance

  • Use a micro fitting to connect sections together or attach a section to the supply line to create a feeder line

  • Periodically check for leaks or damage and replace or repair as needed; recommended operating pressure is up to 50 PSI; for areas with freezing temperatures, winterize by using an air compressor to evacuate lines with air to remove water

Materials & Sustainability

  • Tubing made of polyethylene

  • Emitters made of polyethylene and silicone

  • Made of domestic and imported materials

  • Drip irrigation can reduce water usage by up to 70% compared to conventional sprinkler irrigation when used properly; for most drip irrigation products, water is applied precisely and at the rate the soil can accept it to prevent runoff and erosion

Product Models

Part Number
Description
SFJR-BL-06-011/4 in. Dura Flo™ JR Dripline, 0.5 GPH Non-Pressure Compensating Emitters, 6 in. Spacing, Black Polyethylene, 100 ft.
SFJR-BL-06-101/4 in. Dura Flo™ JR Dripline, 0.5 GPH Non-Pressure Compensating Emitters, 6 in. Spacing, Black Polyethylene, 1,000 ft.
SFJR-BL-12-011/4 in. Dura Flo™ JR Dripline, 0.5 GPH Non-Pressure Compensating Emitters, 12 in. Spacing, Black Polyethylene, 100 ft.
SFJR-BR-06-011/4 in. Dura Flo™ JR Dripline, 0.5 GPH Non-Pressure Compensating Emitters, 6 in. Spacing, Brown Polyethylene, 100 ft.
SFJR-BR-12-011/4 in. Dura Flo™ JR Dripline, 0.5 GPH Non-Pressure Compensating Emitters, 12 in. Spacing, Brown Polyethylene, 100 ft.
