Flo-Well Dry Well

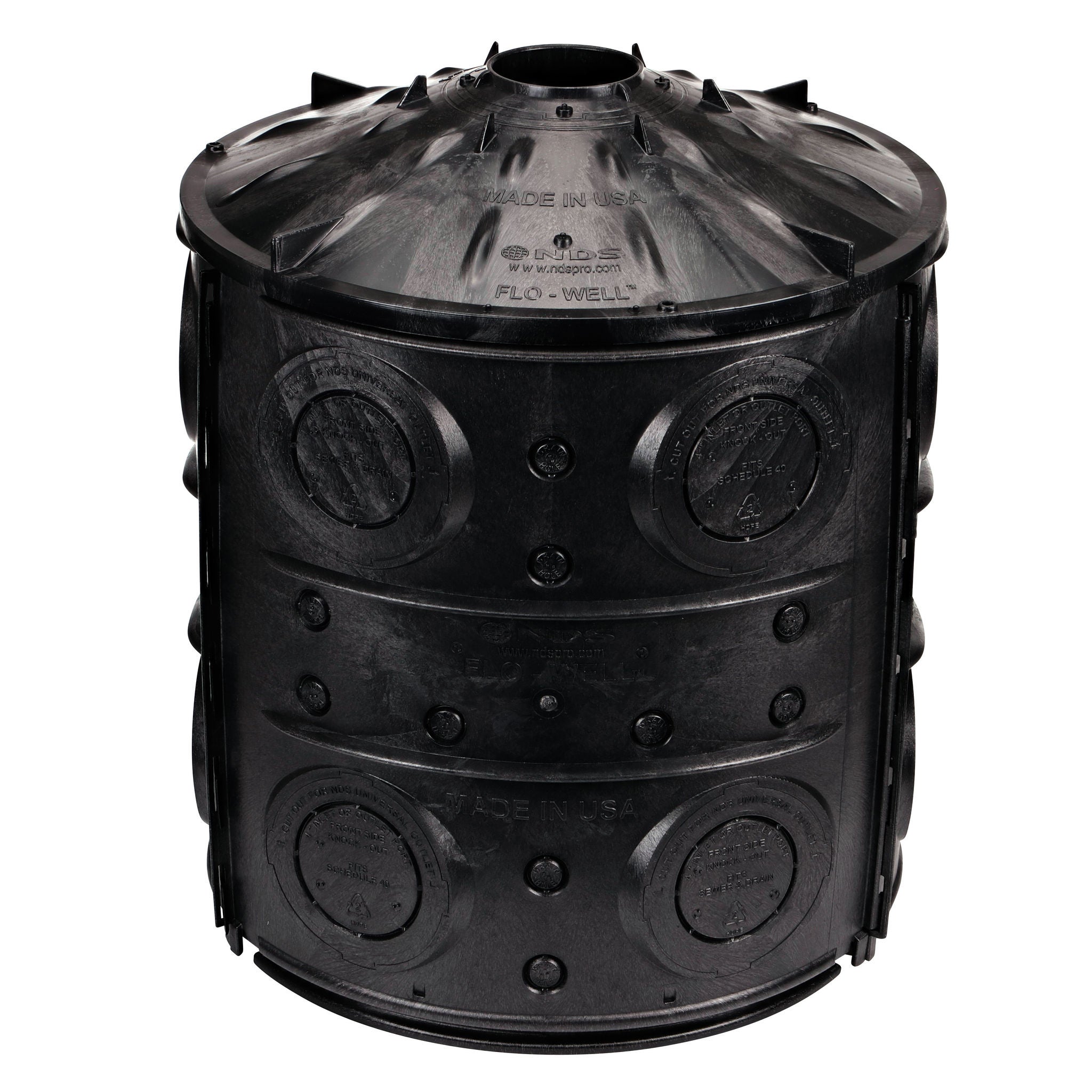

NDS Flo-Well Dry Well

The Flo-Well® dry well system helps drain areas in the yard prone to flooding. This alternative to heavy stone-filled dry wells features a gravel-free interior with 250% more detention volume than comparable sized gravel dry wells.

Alt Text Goes Here

Key Features

  • Special ribbed design on side panels adds structural strength for long-lasting durability; no need to pack gravel inside
  • Thirty 1 in. knockout weep holes provide additional infiltration capacity, simply punch out with a firm tap using a hammer and wrap Flo-Well dry well with filter fabric wrap  to prevent soil intrusion
  • Use a bottom panel to the Flo-Well dry well to prevent soil erosion or provide a base for a sump pump
  • Side panels, when assembled, form a 24 in. dia. X 24 in. tall cylinder; with addition of cover the overall height is 28-3/4 in. with 50 gallons storage capacity
  • Surface drain inlet with 6 in. grate fits on top of the Flo-Well cover to collect and drain surface water into the system

Applications

  • Ideal for both residential and commercial locations including yards, playgrounds, golf courses, and wash-down areas

  • Protects property from water damage by collecting, detaining, and infiltrating stormwater runoff

  • Works as a stand-alone product or in conjunction with other compatible NDS products such as catch basins, EZflow® French drains, and pop-up emitters

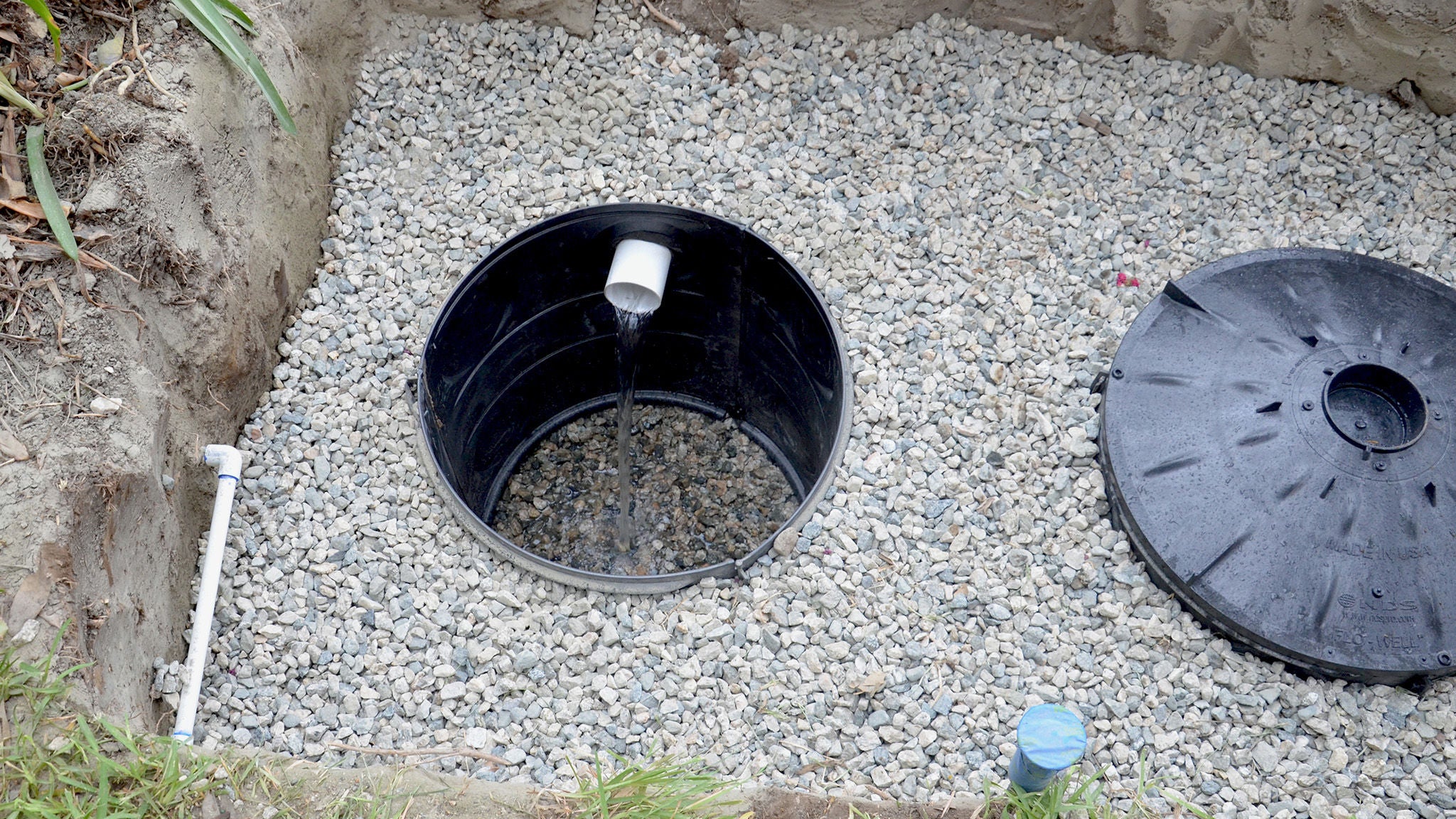

Installation & Maintenance

  • Can be installed as a single unit

  • Install additional Flo-Well dry wells side by side, 18 in. apart

  • Units can also be stacked up to 4 high when able to dig deep without hitting bedrock"

Materials & Sustainability

  • Flo-Well dry well and surface inlet are made of high-density polyethylene (HDPE) treated with UV inhibitors

  • Flo-Well dry wells are made in the USA

Product Models

Part Number
Description
FWAS24WH50 Gal. Flo-Well® Stormwater Dry Well System Kit with 3 Side Panels & 1 Cover
FWBP24Bottom Panel for Flo-Well® Stormwater Dry Well System
FWFF67Filter Fabric Wrap for Flo-Well® Stormwater Dry Well System, 2 ft. wide X 7 ft. long
FWSD696 in. Round Surface Drain Inlet with Black Plastic Grate for Flo-Well® Stormwater Dry Well System
FWAS24CWHTop Cover for Flo-Well® Stormwater Dry Well System
FWSPS3WHSide Panels for Flo-Well® Stormwater Dry Well System, Set of 3

Literature & Resources

Download

NDS Flo-Well Dry Well System Assembly and Installation Manual

NDS Flo-Well Dry Well System Assembly and Installation Manual
application/pdf | 6 MB
DOWNLOAD
Download

NDS Flo-Well® Dry Well System Storm Drainage Water Retention Structures Written Spec

NDS Flo-Well® Dry Well System Storm Drainage Water Retention Structures Written Spec
application/msword | 49 KB
DOWNLOAD
Download

Flo-Well

Frequently Asked Questions
application/pdf | 126 KB
DOWNLOAD
