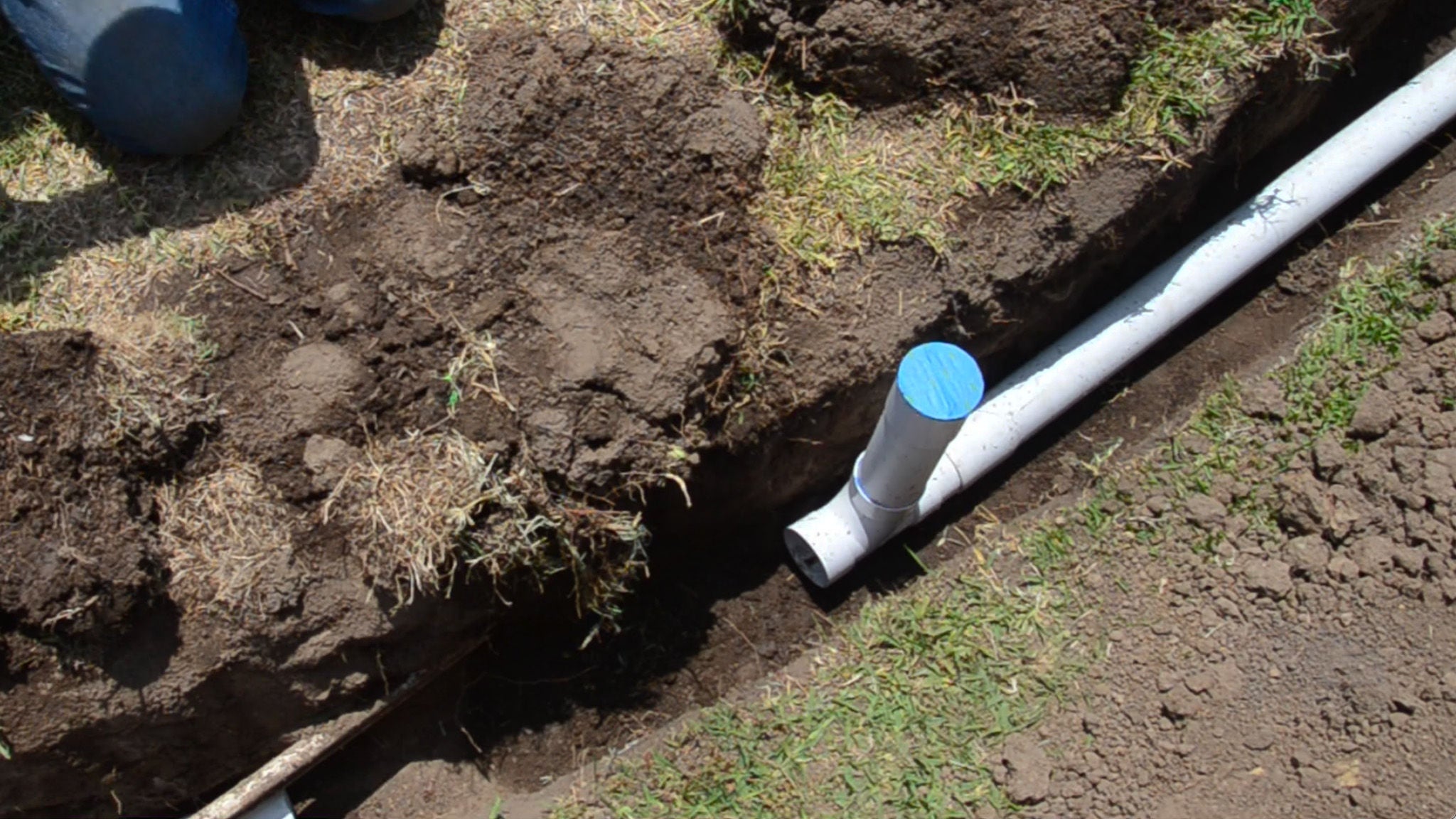

Sewer & Drain Tee

Sewer and Drain Fittings

Caps, couplings, elbows, tees, wyes, and cross are used to configure the drain pipe run. These fittings are used to direct water in the pipeline and are available in a variety of sizes to fit drain pipe sizes.

Key Features

  • The cap seals the end of pipe to stop the flow of water
  • The coupling connects two sections of pipe to extend the pipe run; increaser/reducer couplings make the transition between two different sizes of pipe
  • The elbow connects two sections of pipe and adds a 22.5°, 45°, or 90° turn to the pipe run; the street elbow provides a hub X spigot connection which different from a standard elbow
  • The long-turn elbow, also known as a sweep elbow, allows water to travel around the bend with less turbulence; and finally the long-turn street elbow provides a similar benefit but with a hub X spigot connection
  • The tee adds a 90° branch to the pipe run and connects three sections of pipe; the sanitary tee adds a 90° sweep for less turbulent flow and provides and easier cleanout of the pipeline
  • The wye connects three sections of pipe but unlike the tee, the third branch is at a 45° angle
  • When you have four lengths of pipe to connect, the cross comes into play

Applications

  • These drain fittings extend the pipe run and make connect sections of pipe together unless it's the cap, which stops the flow of water

  • Maximum working pressure of 5 PSI

  • As part of a complete drainage system, these fittings are used to direct the flow of water in drain pipe

Installation & Maintenance

  • Caps, couplings, elbows, tees, wyes and the cross connect to sewer & drain (S&D) pipe

Materials & Sustainability

  • Caps, couplings, elbows, tees, wyes, and cross are made of polyvinyl chloride (PVC)
  • Caps, couplings, elbows, tees, wyes, and cross are made in the USA

Product Models

Part Number
Description
3P06PVC S&D Cap, 3 in.
4P06PVC S&D Cap, 4 in.
4P06 BULKPVC S&D Cap, 4 in.
6P06PVC S&D Cap, 6 in.
8P06PVC S&D Cap, 8 in.

Part Number
Description
3P05PVC S&D Coupling, 3 in. Hub x Hub
4P05PVC S&D Coupling, 4 in. Hub x Hub
4P05 BULKPVC S&D Coupling, 4 in. Hub x Hub
6P05PVC S&D Coupling, 6 in. Hub X Hub
8P05PVC S&D Coupling, 8 in. Hub x Hub
3P05RPVC S&D Slip Repair Coupling, 3 in. Hub X Hub
4P05RPVC S&D Slip Repair Coupling, 4 in. Hub X Hub
3P07PVC S&D Increaser/Reducer Bushing, 3 in. Hub X 4 in. Spt
4P07PVC S&D Increaser/Reducer Coupling, 3 in. Hub X 4 in. Hub
6P07PVC S&D Increaser/Reducer Coupling, 4 in. Hub X 6 in. Hub
6P07SPVC S&D Increaser/Reducer Bushing, 4 in. Hub X 6 in. Spt
8P07PVC S&D Increaser/Reducer Coupling, 6 in. Hub X 8 in. Hub

Part Number
Description
3P02PVC S&D 90° Elbow, 3 in. Hub X Hub
4P02PVC S&D 90° Elbow, 4 in. Hub X Hub
4P02 BULKPVC S&D 90° Elbow, 4 in. Hub X Hub
6P02PVC S&D 90° Elbow, 6 in. Hub X Hub
8P02PVC S&D 90° Elbow, 8 in. Hub X Hub
3P03PVC S&D 45° Elbow, 3 in. Hub X Hub
4P03PVC S&D 45° Elbow, 4 in. Hub X Hub
6P03PVC S&D 45° Elbow, 6 in. Hub X Hub
8P03PVC S&D 45° Elbow, 8 in. Hub X Hub
3P04PVC S&D 22.5° Elbow, 3 in. Hub X Hub
4P04PVC S&D 22.5° Elbow, 4 in. Hub X Hub
6P04PVC S&D 22.5° Elbow, 6 in. Hub X Hub
31P0PVC S&D 90° Long-Turn Elbow, 3 in. Hub X Hub
41P0PVC S&D 90° Long-Turn Elbow, 4 in. Hub X Hub
41P0 BULKPVC S&D 90° Long-Turn Elbow, 4 in. Hub X Hub
61P0PVC S&D 90° Long-Turn Elbow, 6 in. Hub X Hub
31P0STPVC S&D 90° Long-Turn Street Elbow, 3 in. Hub X Spt
41P0STPVC S&D 90° Long-Turn Street Elbow, 4 in. Hub X Spt
3P03STPVC S&D 45° Street Elbow, 3 in. Hub x Spt
4P03STPVC S&D 45° Street Elbow, 4 in. Hub x Spt
6P03STPVC S&D 45° Street Elbow, 6 in. Hub X Spt

3P01PVC S&D Tee, 3 in. Hub X Hub X Hub
4P01PVC S&D Tee, 4 in. Hub X Hub X Hub
401XHIPS S&D Tee, 4 in. Hub X Hub X Hub
6P01PVC S&D Tee, 6 in. Hub X Hub X Hub
8P01PVC S&D Tee, 8 in. Hub X Hub X Hub
64P01PVC S&D Tee, 6 in. Hub X Hub X 4 in. Hub
84P01PVC S&D Tee, 8 in. Hub X Hub X 4 in. Hub
86P01PVC S&D Tee, 8 in. Hub X Hub X 6 in. Hub
3P09PVC S&D Sanitary Tee, 3 in. Hub X Hub X Hub
4P09PVC S&D Sanitary Tee, 4 in. Hub X Hub X Hub
6P09PVC S&D Sanitary Tee, 6 in. Hub X Hub X Hub
8P09PVC S&D Sanitary Tee, 8 in. Hub X Hub X Hub

3P08PVC S&D 45° Wye, 3 in. Hub X Hub X Hub
4P08PVC S&D 45° Wye, 4 in. Hub X Hub X Hub
6P08PVC S&D 45° Wye, 6 in. Hub X Hub X Hub
8P08PVC S&D 45° Wye, 8 in. Hub X Hub X Hub
64P08PVC S&D 45° Wye, 6 in. Hub X Hub X 4 in. Hub
84P08PVC S&D 45° Wye, 8 in. Hub X Hub X 4 in. Hub
86P08PVC S&D 45° Wye, 8 in. Hub X Hub X 6 in. Hub

4P1XPVC S&D Cross, 4 in. Hub X Hub X Hub X Hub

Part Number
Description
4PVAFPVC S&D Swivel-Fit™ 0-90° Variable-Angle Fitting, 4 in. Hub X Hub
9P123 in. Round Grate, Fits 3 in. Sewer & Drain Fittings, White PVC
9P114 in. Round Grate, Fits 4 in. Sewer & Drain Fittings, White PVC
650HDPE Pool Backflush Fitting with Recessed Grate, 4 in. Spt
WC100HIPS S&D Deck Drain, 3 in. Hub, White
