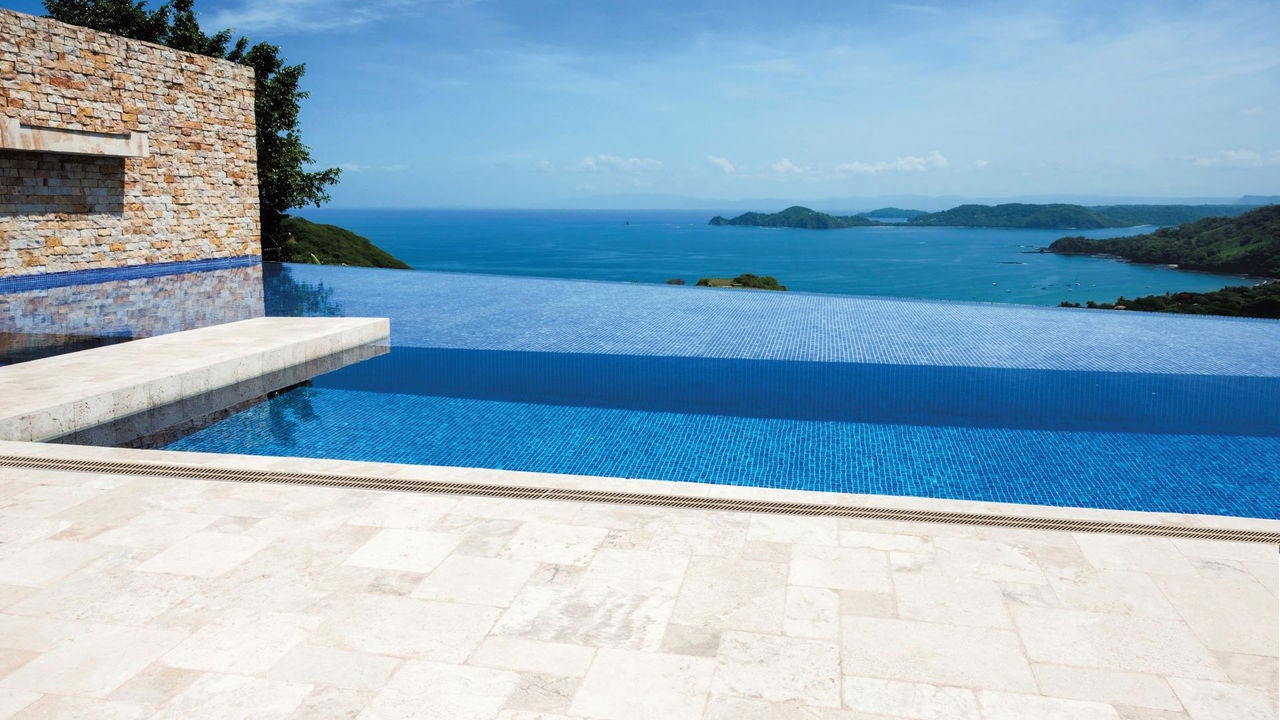

Slim Channel Drain installed near pool

Slim Channel Drains

This attractive drainage solution for outdoor spaces is compatible with a variety of grate designs to complement its surroundings. Available in 6 ft. kits and 9 ft. assembly to make installation easier.

NDS Slim Channel Drains

Key Features

  • Slim Channel drains are 2-1/4 in. wide, 3 in. high, and 6 ft. long; length can be cut to size with a saw
  • Available in preassembled kits and assemblies
  • Variety of grates and accessories to customize system design
  • Slim Channel Drain made of polyvinyl chloride (PVC)
  • Treated with UV inhibitors to prevent fading and cracking

Applications

  • Channel drains and trench drains prevent mildew growth, concrete staining, and costly damage by capturing and conveying excess water for proper release downstream

  • The Slim Channel Drain system collects light flows of water from pool & spa areas, concrete and paver patios, and walkways and directs to drain pipes for proper release downstream

  • Works with Slim Channel Drain components, part of the NDS Profile Channel series

Installation & Maintenance

  • Use solvent-weld PVC glue to create a water-tight channel-to-channel connection and between the outlet and pipe; use anchor clips (sold separately) to secure channel to base for easier installation.

  • Install with removable snap-in grates (sold separately), making it easy to clean debris from channel for maintenance

Materials & Sustainability

  • Made in USA
  • Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding

Product Models

Part Number
Description

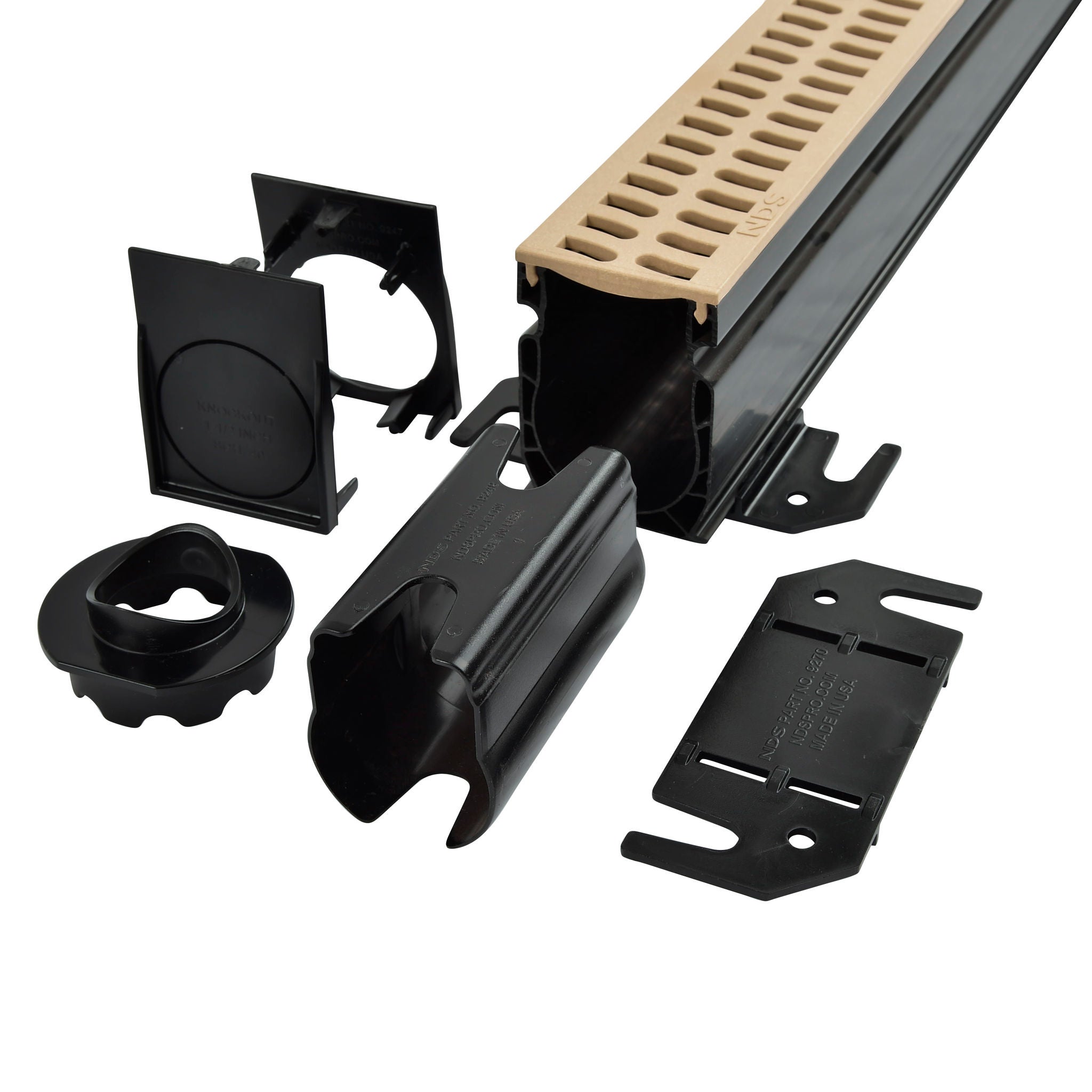

9206SKITSlim Channel™ Drain Kit, 2-1/4 in. X 6 ft. with Channel, Sand Grates, End Caps/Outlets, Coupling, Anchor Clips
9206GKITSlim Channel™ Drain Kit, 2-1/4 in. X 6 ft. with Channel, Gray Grates, End Caps/Outlets, Coupling, Anchor Clips
9209SANDSlim Channel™ Assembly, 2-1/4 in. wide X 9 ft. long, with Channel and Prefastened Sand Plastic Grates
9209WhiteSlim Channel™ Assembly, 2-1/4 in. wide X 9 ft. long, with Channel and Prefastened White Plastic Grates
9209GRAYSlim Channel™ Assembly, 2-1/4 in. wide X 9 ft. long, with Channel and Prefastened Gray Plastic Grates

Part Number
(click for more info)
Description
9206Slim Channel™ Drain, 2-1/4 in. wide X 6 ft. long

Part Number
(click for more info)
Description
9242Slim Channel™ Drain Grate, 2-1/4 in. wide X 3 ft. long, Sand Plastic
9241Slim Channel™ Drain Grate, 2-1/4 in. wide X 3 ft. long, White Plastic
9243Slim Channel™ Drain Grate, 2-1/4 in. wide X 3 ft. long, Gray Plastic
9251Slim Channel™ Drain Grate, 2-1/4 in. wide X 3 ft. long, Decorative Square Design, White Plastic
9253Slim Channel™ Drain Grate, 2-1/4 in. wide X 3 ft. long, Decorative Square Design, Gray Plastic
9252Slim Channel™ Drain Grate, 2-1/4 in. wide X 3 ft. long, Decorative Square Design, Sand Plastic
9261Slim Channel™ Drain Grate, 2-1/4 in. wide X 3 ft. long, Decorative Chain Design, White Plastic
9262Slim Channel™ Drain Grate, 2-1/4 in. wide X 3 ft. long, Decorative Chain Design, Sand Plastic
9263Slim Channel™ Drain Grate, 2-1/4 in. wide X 3 ft. long, Decorative Chain Design, Gray Plastic

Part Number
(click for more info)
Description
9303Slim Channel™ Drain 45° Elbow and Grate, Gray Plastic
9301Slim Channel™ Drain 45° Elbow and Grate, White Plastic
9302Slim Channel™ Drain 45° Elbow and Grate, Sand Plastic
9373Slim Channel™ Drain Tee and Grate, Gray Plastic
9371Slim Channel™ Drain Tee and Grate, White Plastic
9372Slim Channel™ Drain Tee and Grate, Sand Plastic
9383Slim Channel™ Drain 90° Elbow and Grate, Gray Plastic
9381Slim Channel™ Drain 90° Elbow and Grate, White Plastic
9382Slim Channel™ Drain 90° Elbow and Grate, Sand Plastic
9248Slim Channel™ Drain Coupling
9247Slim Channel™ Drain End Cap/Outlet, Connects to 1-1/2 in. Drain Pipe, Black Plastic
9250Slim Channel™ Drain Bottom Outlet
9270Slim Channel™ Drain Anchor Clip
