Pro Series Channel Drains

Pro Series Channel™ Drains

NDS Pro Series is a lightweight channel drain system with interlocking joints and a modular design, so systems are flexible and connections are made quickly and easily. Load rated up to NDS Class C with appropriate grate. For Residential and Commercial applications.

Bottom view of NDS 5 in. Pro Series Channel Drain featuring side ribs, stabilizing ribs, and built-in saw guide (NDS 864G*, NDS M864G, NDS 864GMTLRTL, NDS 864, NDS 800)

Moderate water flows

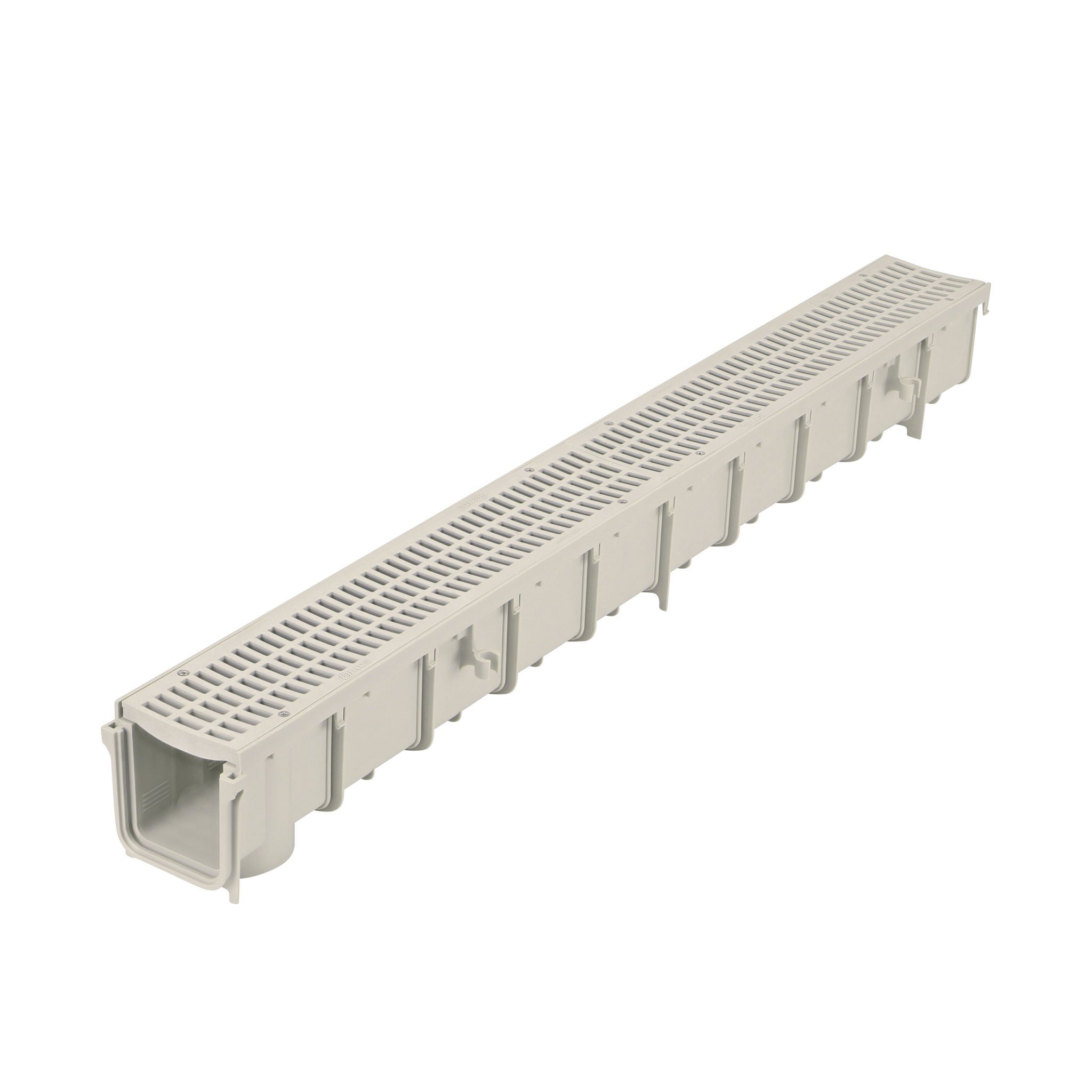

3 in. Pro Series Channel™ Drains

Eliminate standing water on hardscapes with the 3 in. Pro Series Channel Drain. Ideal for draining moderate water flows from surfaces such as driveways, concrete and paver patios, courtyards, and walkways.

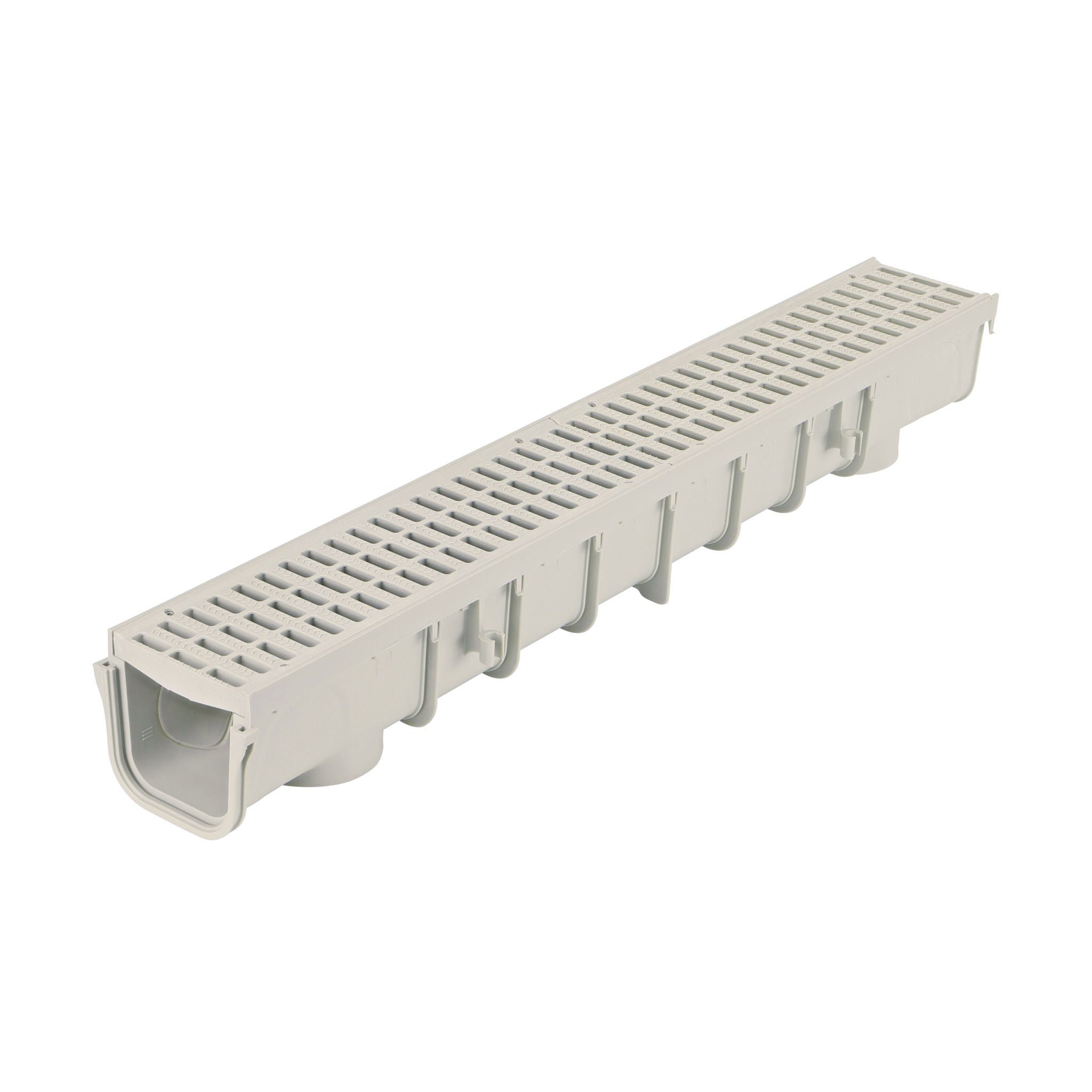

Product^item 864GRTL^864WHS^864G 3PKRTL^864G 6PKRTL^800WHS^814 O1a

Moderate water flows

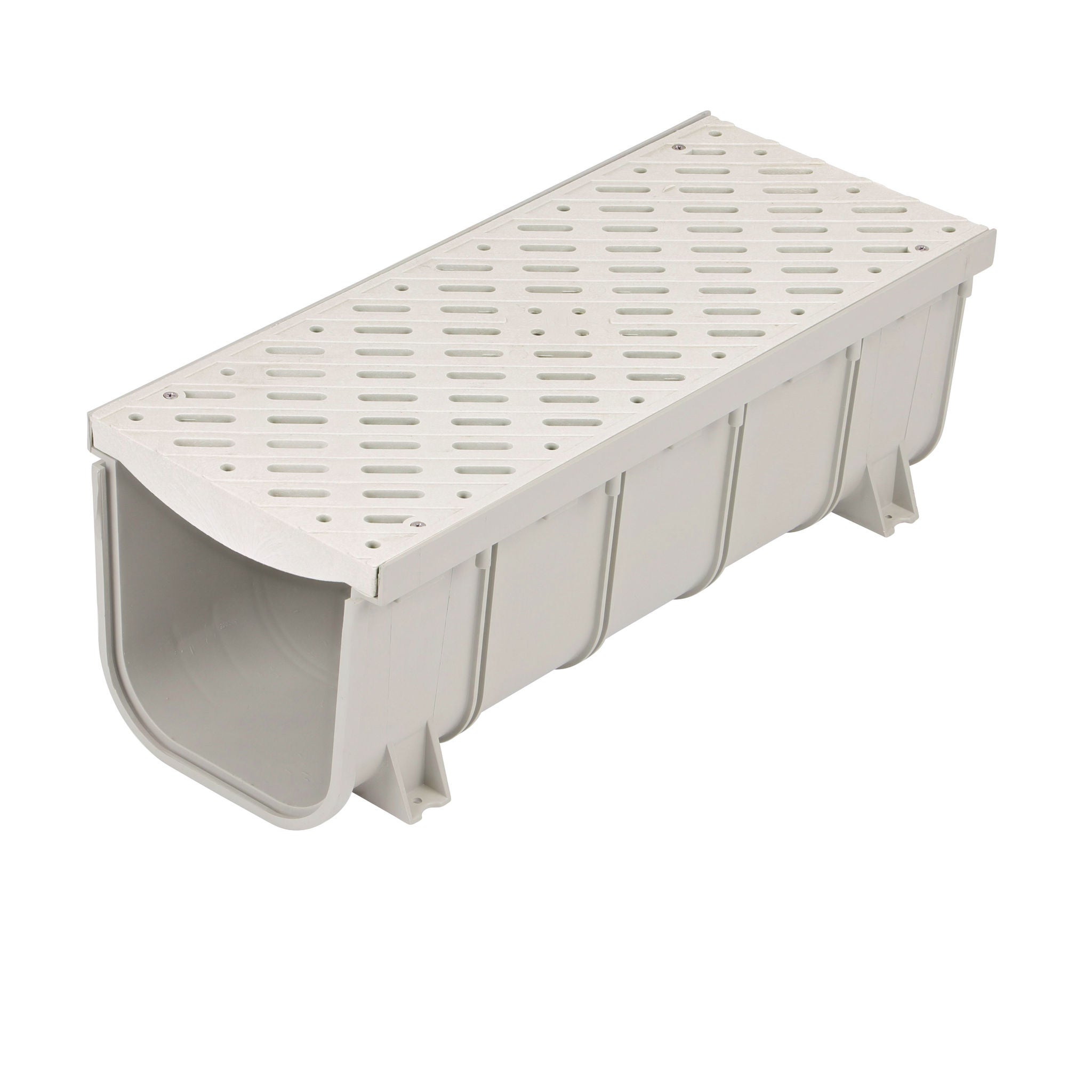

5 in. Pro Series Channel™ Drains

Drain moderate water flows from hardscapes with the 5 in. Pro Series Channel Drain. The channel features an integrated bottom outlet and connect with interlocking joints. Ideal for driveways, concrete and paver patios, courtyards, and walkways.

product 836WHS O1b

Heavy water flows

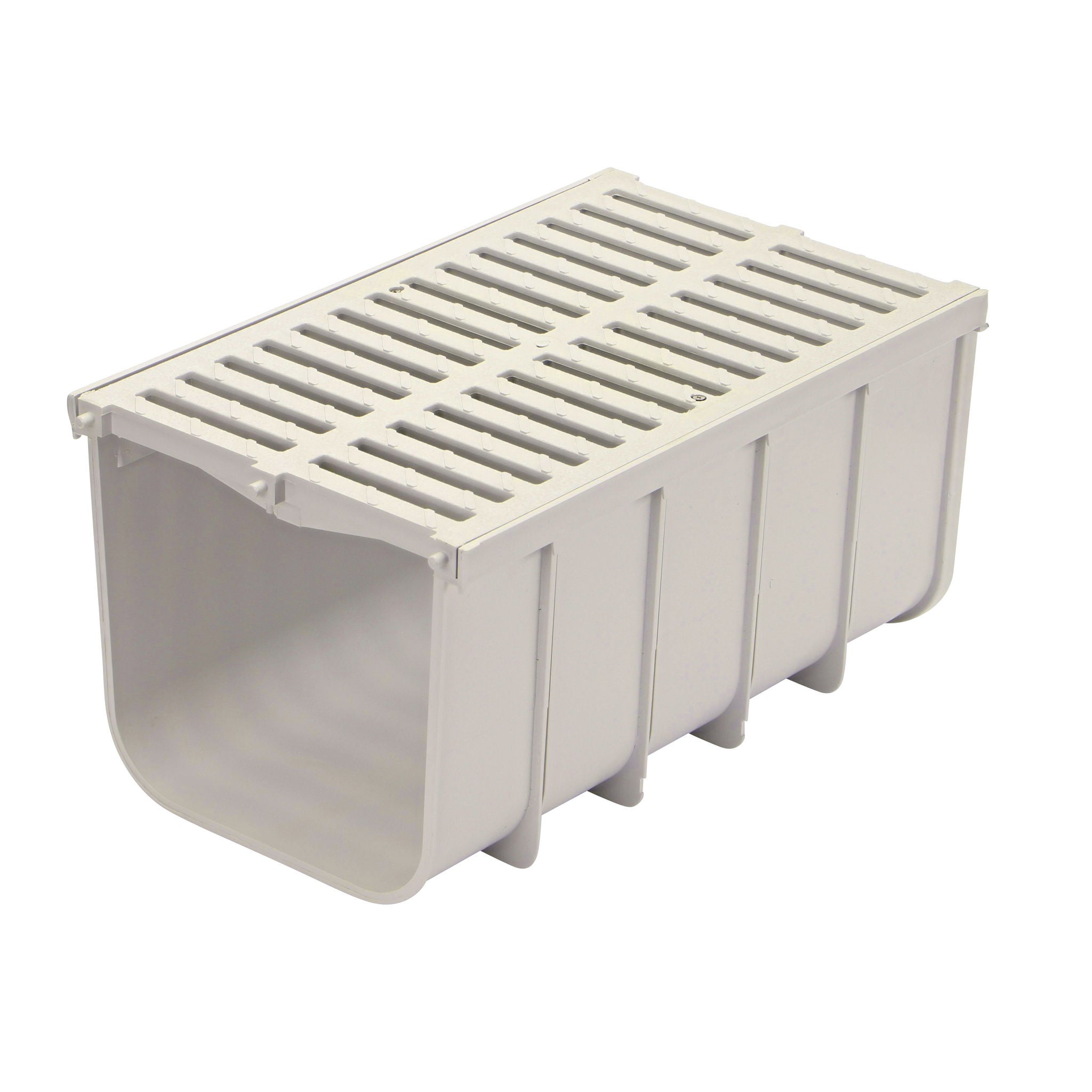

8 in. Pro Series Channel™ Drains

Ideal for collecting heavy water flows flooding patios, plazas, parking lots, and sports fields. Modular design features interlocking joints, integrated bottom and side outlets. Channels available with shallow or deep profile.

Product 847WHS^843WHS O1b^O1a

Heavy water flows

12 in. Pro Series Channel™ Drains

Proven solution for capturing heavy flows of surface water from driveways, concrete and paver patios, courtyards, walkways, and sports facilities. Modular design features integrated joints. Channels available with shallow or deep profile.

Case Studies and Projects

Longwood Gardens

NDS BG-Filcoten Trench Drains

Longwood Gardens - Kennett Square, PA

Longwood Gardens in Kennett Square, PA, is renowned for its collection of some of the most beautiful plants and landscape designs the world over. In February of 2023, the organization made the decision to incorporate a 17-acre expansion on the property inclusive of new indoor gardens, outdoor gardens, lily courts, as well as walkways, stairways, and buildings that would enhance the property and public experience moving into the future. NDS was contacted by the specifying engineer to develop a drainage solution that would capture the sheet flow from the new walkway and staircases in an effort to stave off any water pooling.

Warehouse

Essington Avenue, Philadelphia, PA

A site previously used as an auto salvage yard in a busy area of Philadelphia was scheduled for an upgrade. The owners decided to convert the space into a warehouse and storage facility, and therefore needed to incorporate stormwater and drainage improvements as part of their planning.
