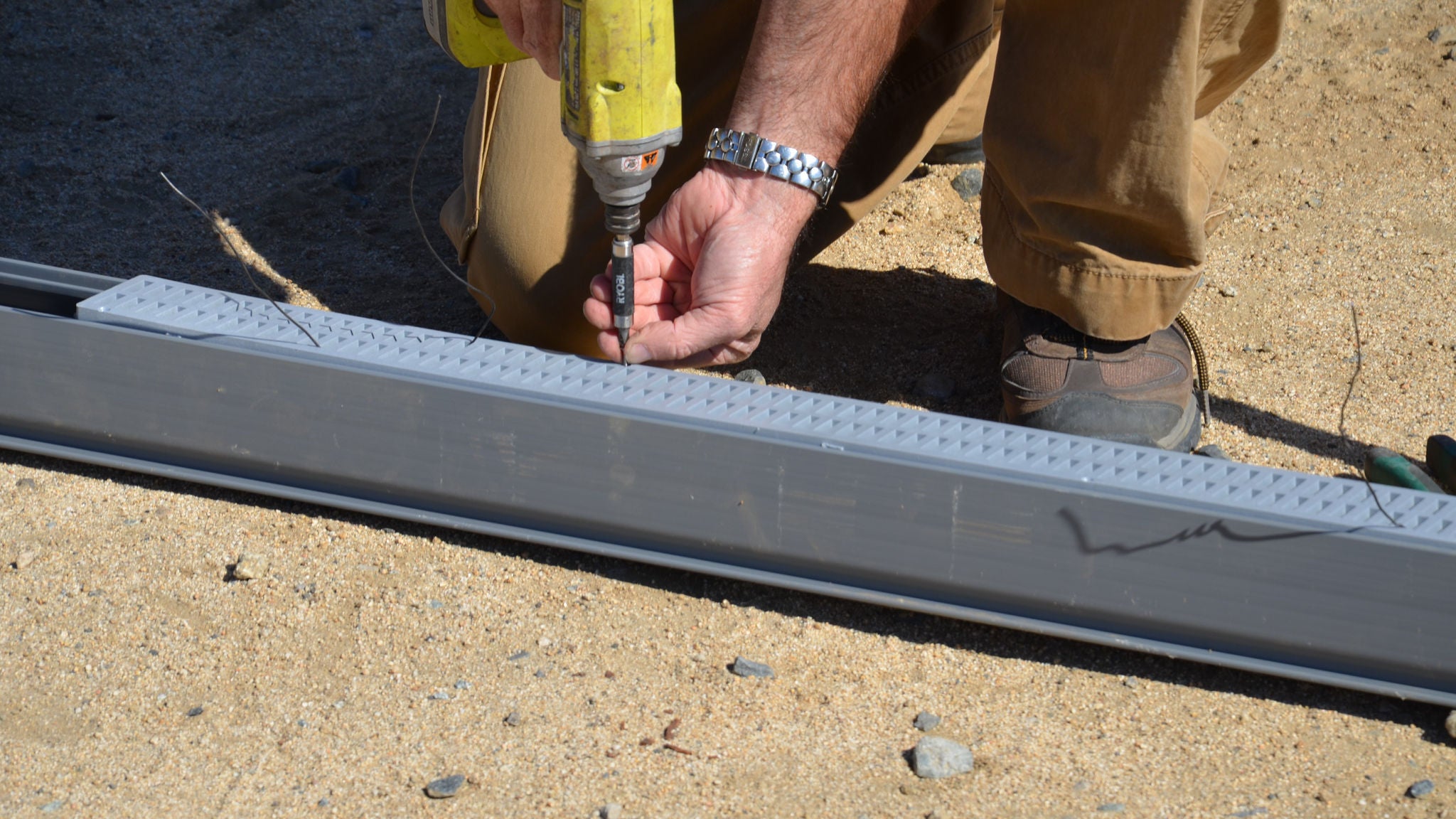

Installing Mini Channel Drain

Mini Channel Drains

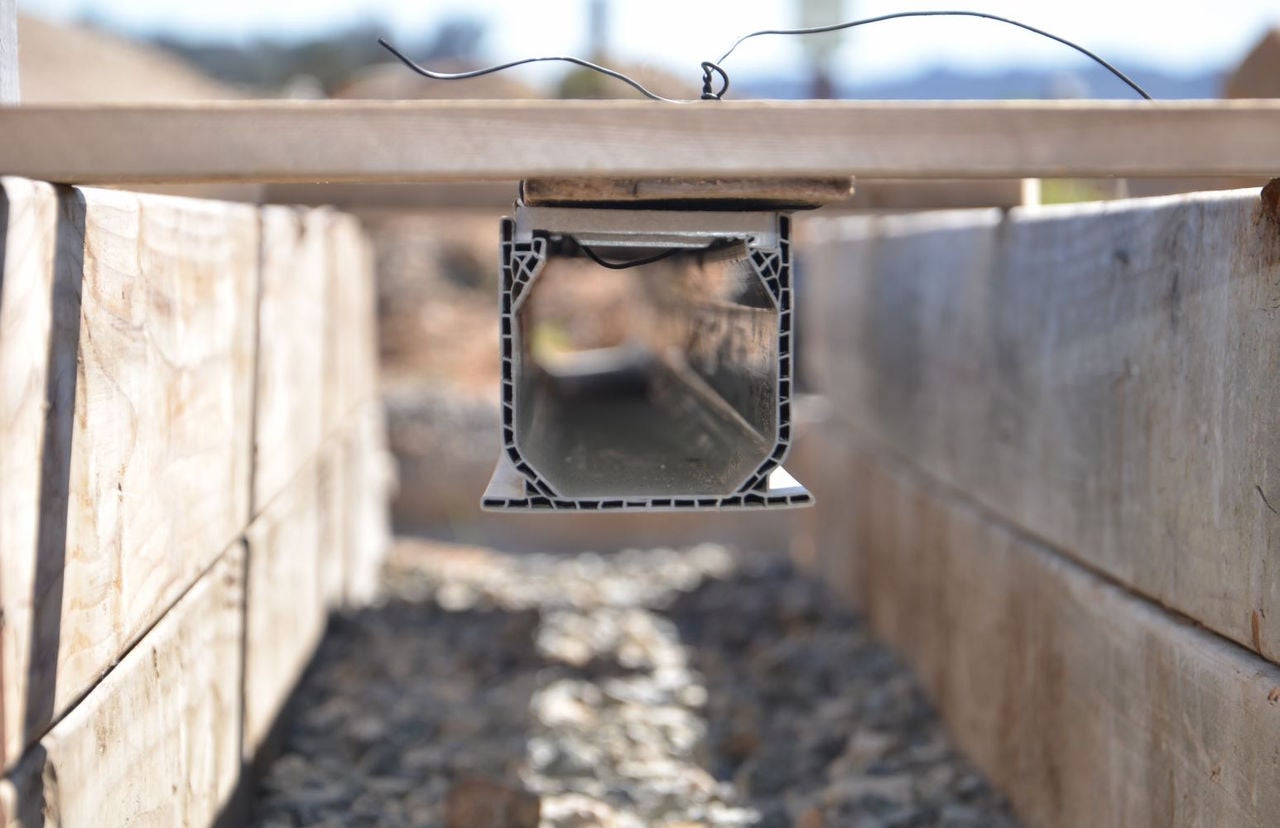

Mini but mighty, this solution features patented honeycomb reinforced walls for durability and flying buttress design for load-bearing support. Bottom flanges have an anchoring lip for straight installation without floating.

Mini Channel Drain

Key Features

  • Mini Channel Drains are 3-1/16 in. wide, 3-1/8 in. high, and 6 ft. long; length can be cut to size with a saw
  • Patented flying buttress design provides load-bearing support from both sides as well as underneath the channel
  • Unique flanges on the bottom of the channel provide an anchoring lip for straight installation and prevents floating
  • Customize system design with a variety of accessories
  • Grates available in an assortment of colors, materials, and styles

Applications

  • Handles light sheet flows from around pools and spas, concrete and paver patios, tennis courts, walkways and driveways

  • Channel drains and trench drains are ideal for hardscapes to prevent mildew growth, concrete staining, and costly damage by capturing and conveying excess water for proper release downstream

  • The Mini Channel Drain and grate, as part of a complete drainage system, captures excess surface water and directs water away to connected drain pipes for proper release downstream or to an infiltration device

Installation & Maintenance

  • Create a water-tight connection between the outlet and pipe using solvent-weld PVC glue

  • Removable drain grates make it easier to clean debris from the channel for maintenance

Materials & Sustainability

  • Channels are made in the USA

  • Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding

Product Models

Part Number
Description
500Mini Channel™ Drain, 3-1/16 in. wide X 6 ft. long

Part Number
Description
541Mini Channel™ Drain Grate, 2-3/4 in. wide X 3 ft. long, Gray Plastic
542Mini Channel™ Drain Grate, 2-3/4 in. wide X 3 ft. long, Green Plastic
543Mini Channel™ Drain Grate, 2-3/4 in. wide X 3 ft. long, Black Plastic
544Mini Channel™ Drain Grate, 2-3/4 in. wide X 3 ft. long, Sand Plastic
540Mini Channel™ Drain Grate, 2-3/4 in. wide X 3 ft. long, White Plastic
551Mini Channel™ Drain Grate, 2-3/4 in. wide X 3 ft. long, Brick Red Plastic
541-1*Mini Channel™ Drain Grate, 2-3/4 in. wide X 3 ft. long, Gray Plastic
552BMini Channel™ Drain Grate, 2-13/16 in. wide X 1 ft. long, Satin Brass
553PBMini Channel™ Drain Grate, 2-13/16 in. wide X 1 ft. long, Polished Brass
554SMini Channel™ Drain Grate, 3-1/12 in. wide X 3 ft. long, Decorative Botanical Design, Sand Plastic
554GYMini Channel™ Drain Grate, 3-1/12 in. wide X 3 ft. long, Decorative Botanical Design, Gray Plastic
554Mini Channel™ Drain Grate, 3-1/12 in. wide X 3 ft. long, Decorative Botanical Design, Black Plastic
554GRMini Channel™ Drain Grate, 3-1/12 in. wide X 3 ft. long, Decorative Botanical Design, Green Plastic
554CIMini Channel™ Drain Grate, 2-3/4 in. wide X 1 ft. long, Decorative Botanical Design, Cast Iron
555SMini Channel™ Drain Grate, 3-1/12 in. wide X 3 ft. long, Decorative Wave Design, Sand Plastic
555GYMini Channel™ Drain Grate, 3-1/12 in. wide X 3 ft. long, Decorative Wave Design, Gray Plastic
555Mini Channel™ Drain Grate, 3-1/12 in. wide X 3 ft. long, Decorative Wave Design, Black Plastic
555GRMini Channel™ Drain Grate, 3-1/12 in. wide X 3 ft. long, Decorative Wave Design, Green Plastic
555CIMini Channel™ Drain Grate, 2-3/4 in. wide X 1 ft. long, Decorative Wave Design, Cast Iron

Part Number
Description
546Mini Channel™ Drain End Outlet, Connects to 2 in. Drain Fittings, Gray Plastic
550Mini Channel™ Drain Bottom Outlet, 4-1/2 in. X 3 ft., Connects to 2 in. Drain Fittings
5300Mini Channel™ Drain 45° Elbow and Grate, Gray Plastic
5303Mini Channel™ Drain 45° Elbow and Grate, Sand Plastic
5370Mini Channel™ Drain Tee and Grate, Gray Plastic
5372Mini Channel™ Drain Tee and Grate, Black Plastic
5374Mini Channel™ Drain Tee and Grate, Brick Red Plastic
5380Mini Channel™ Drain 90° Elbow and Grate, Gray Plastic
5383Mini Channel™ Drain 90° Elbow and Grate, Sand Plastic
547Mini Channel™ Drain End Cap, Gray Plastic
548Mini Channel™ Drain Coupling, Gray Plastic
