Channel Drain Fasteners

Fasteners

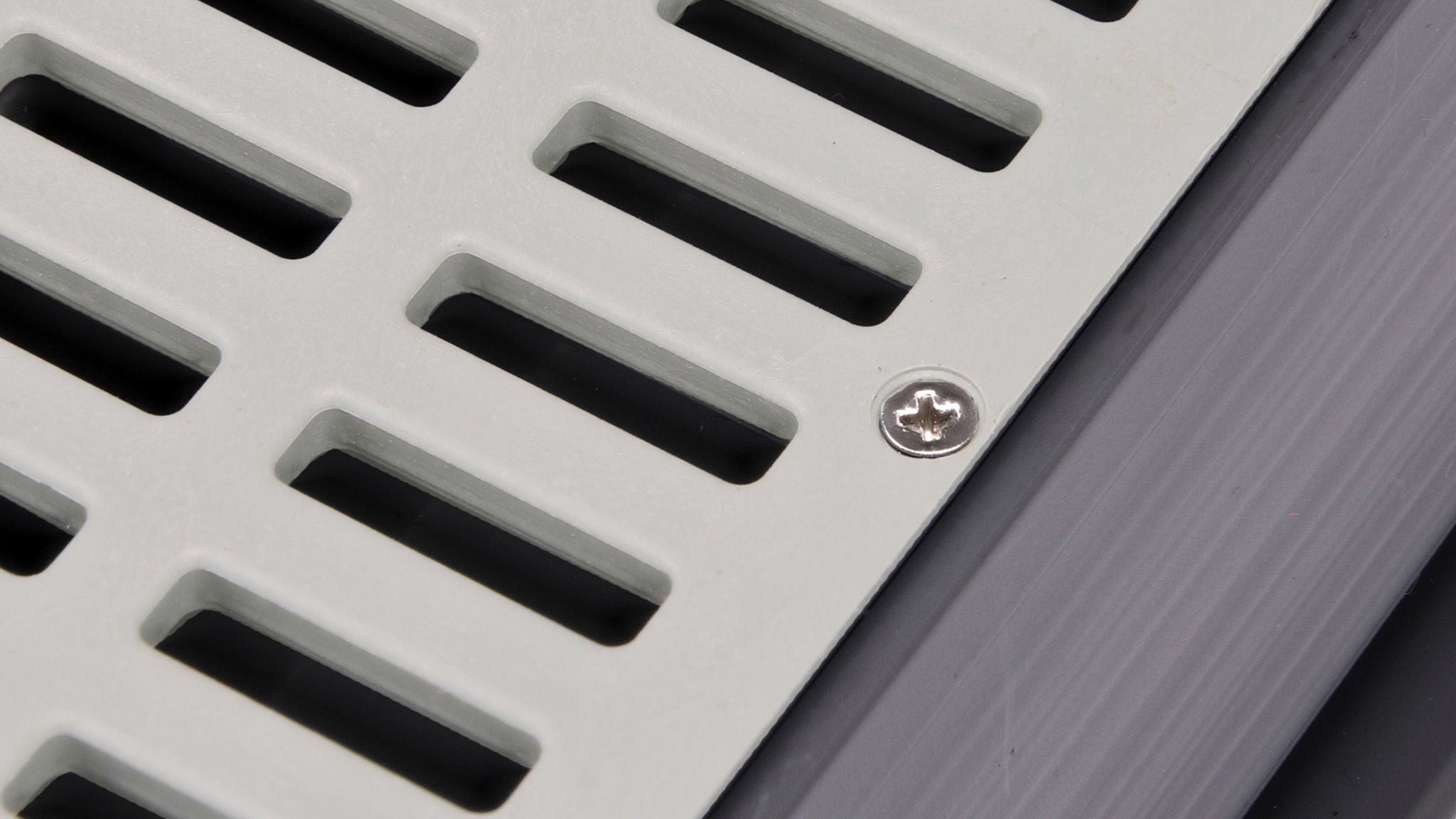

Secure components such as grates and grate locks to the channel drain with the appropriate fasteners. To find the right fastener for your project, consult the instruction manual or call tech support at (888) 825-4716.
Fasteners

Key Features

  • Screws are made of stainless steel
  • Flat head screws  will sit flush with the surface when properly installed
  • Pan head screws have rounded heads that rise above the surface
  • Spanner head screws are a tamper-resistant fastener made to discourage vandalism or theft
  • Screws can be fastened directly, no washers needed

Applications

  • Secure grates to prevent displacement from heavy runoff flows, pedestrian and vehicular traffic, and to deter potential theft and vandalism

  • Fasteners can be unscrewed to remove the grate for inspection and maintenance

  • As part of a complete drainage system, the screws secure grates to drainage products, keeping grates in place

Installation & Maintenance

  • Use fasteners in the intended openings on the grate to secure to the channel

  • Replace stripped screws as necessary

Materials

  • Screws are made of stainless steel

Product Models

Part Number
Description
839#6 X 1-3/4 in. Phillips Flat Head Screw, Stainless Steel, Bag of 40
846#4 X 1 in. Phillips Flat Head Screw, Stainless Steel, Bag of 40
829#6 X 1-1/4 in. Phillips Flat Head Screw, Stainless Steel, Bag of 40
6291/4 in. X 1-1/2 in. Phillips Flat Head Screw, Stainless Steel, Bag of 40
529#4 X 5/8 in. Phillips Flat Head Screw, Stainless Steel, Bag of 64
229#8 X 1 in. Phillips Flat Head Screw, Stainless Steel, Bag of 48
229B#8 X 1 in. Phillips Flat Head Screw, Stainless Steel, Bag of 12
DS-123#6 X 3/4 in. Phillips Pan Head Screw, Stainless Steel, Bag of 12
DS-6501/4 in. X 1-1/2 in. Spanner Head Screw, Stainless Steel, Bag of 12
DS-2251/4 in. X 2-1/2 in. Phillips Flat Head Screw, Stainless Steel, Bag of 12
