Channel & Trench Drains

Channel & Trench Drains

Standing water on hardscapes can lead to slip hazards, pest breeding grounds, and erosion. These long and narrow drains intercept, collect, and convey runoff to drain pipes, ultimately reducing runoff on the property.

Alt Text Goes Here

Micro Channel Drains

Micro Channel Drains

Ideal for light flows, this effective solution comes as one integrated part, and channel sections snap together for a fast and easy install. Recessed grate openings facilitate runoff capture.

Slim Channel Drains

Slim Channel Drains

Slim Channel Drains

This attractive drainage solution for outdoor spaces is compatible with a variety of grate designs to complement its surroundings. Available in 6 ft. kits and 9 ft. assembly to make installation easier.

Alt Text Goes Here

Mini Channel Drains

Mini Channel Drains

Mini but mighty, this solution features patented honeycomb reinforced walls for durability and flying buttress design for load-bearing support. Bottom flanges have an anchoring lip for straight installation without floating.

Alt Text Goes Here

Spee-D® Channel Drains

Spee-D® Channel Drains

The bestselling channel drain in the USA! This lightweight alternative to traditional concrete channel drains features the patented flying buttress design for load-bearing support. Works in linear and contour applications.

Alt Text Goes Here

Pro Series Channel Drains

Pro Series Channel Drains

Alt Text Goes Here

Dura Slope® Channel Drains

Dura Slope® Channel Drains

Engineered for superior performance, versatility, and ease of installation. Available with built-in slope or neutral channel sections, and designed for easier handling and installation, engineered to maintain optimal flow rates.

Alt Text Goes Here

BG-FILCOTEN® Trench Drains

BG-FILCOTEN® Trench Drains

Built with world-class craftsmanship, the BG-FILCOTEN drain combines the reliablility of stable concrete with the strength and durability of high-performance concrete. Sections come pre-sloped or neutral and available in 3 sizes: 4 in., 8 in., and 12 in. wide.

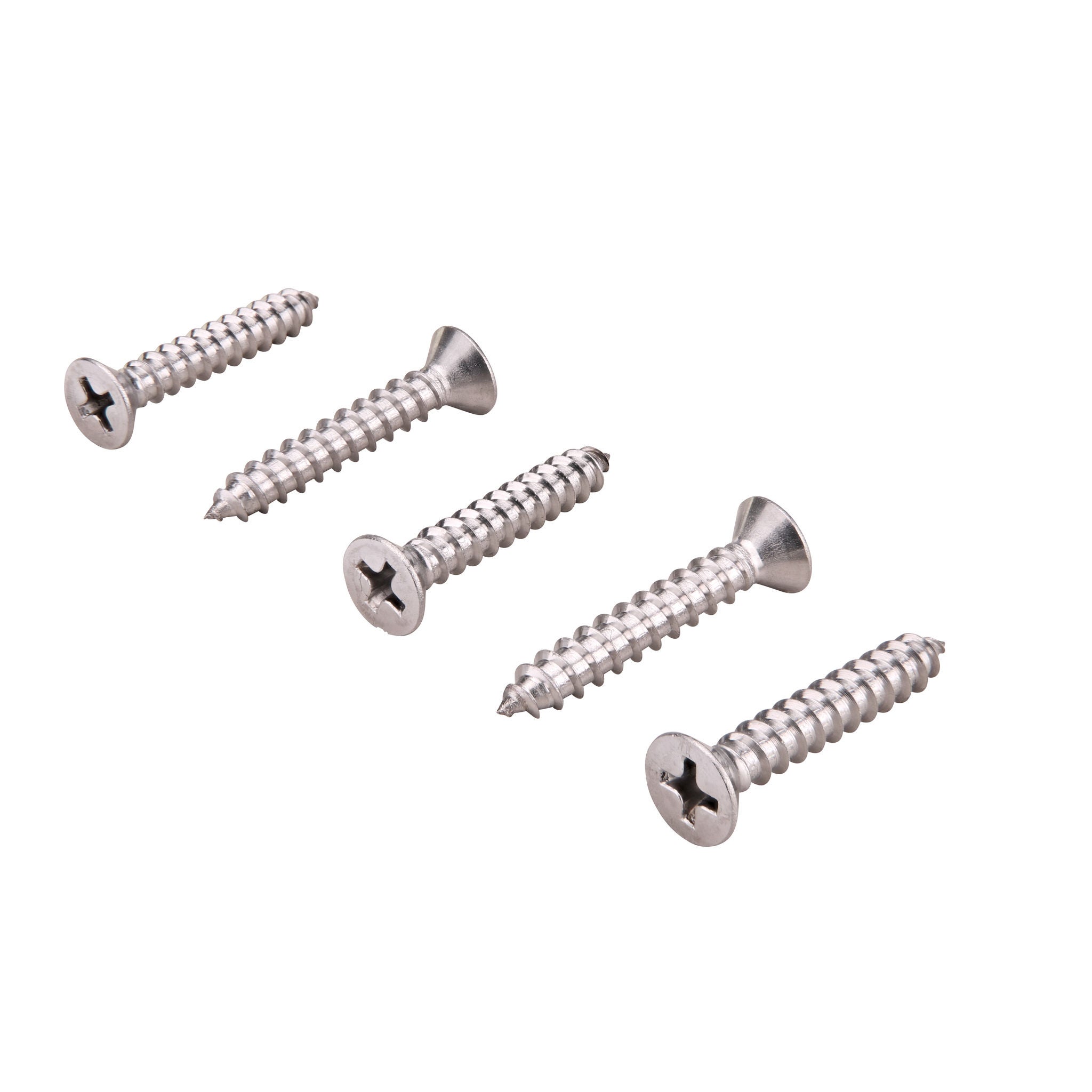

Fasteners

Fasteners

Fasteners

Secure components such as grates and grate locks to the channel drain with the appropriate fasteners. To find the right fastener for your project, consult the instruction manual or call tech support at (888) 825-4716.

Case Studies and Projects

Longwood Gardens

NDS BG-Filcoten Trench Drains

Longwood Gardens - Kennett Square, PA

Longwood Gardens in Kennett Square, PA, is renowned for its collection of some of the most beautiful plants and landscape designs the world over. In February of 2023, the organization made the decision to incorporate a 17-acre expansion on the property inclusive of new indoor gardens, outdoor gardens, lily courts, as well as walkways, stairways, and buildings that would enhance the property and public experience moving into the future. NDS was contacted by the specifying engineer to develop a drainage solution that would capture the sheet flow from the new walkway and staircases in an effort to stave off any water pooling.

Warehouse

Essington Avenue, Philadelphia, PA

A site previously used as an auto salvage yard in a busy area of Philadelphia was scheduled for an upgrade. The owners decided to convert the space into a warehouse and storage facility, and therefore needed to incorporate stormwater and drainage improvements as part of their planning.
