Drainage Catch Basins

9 in., 12 in., 18 in., 24 in. Square Catch Basins

The square catch basin works with a drain grate to capture stormwater runoff and standing water from lawns, landscaped areas, under downspouts, patios, and walkways and direct it to drain pipe to prevent property damage.

Alt Text Goes Here

Key Features

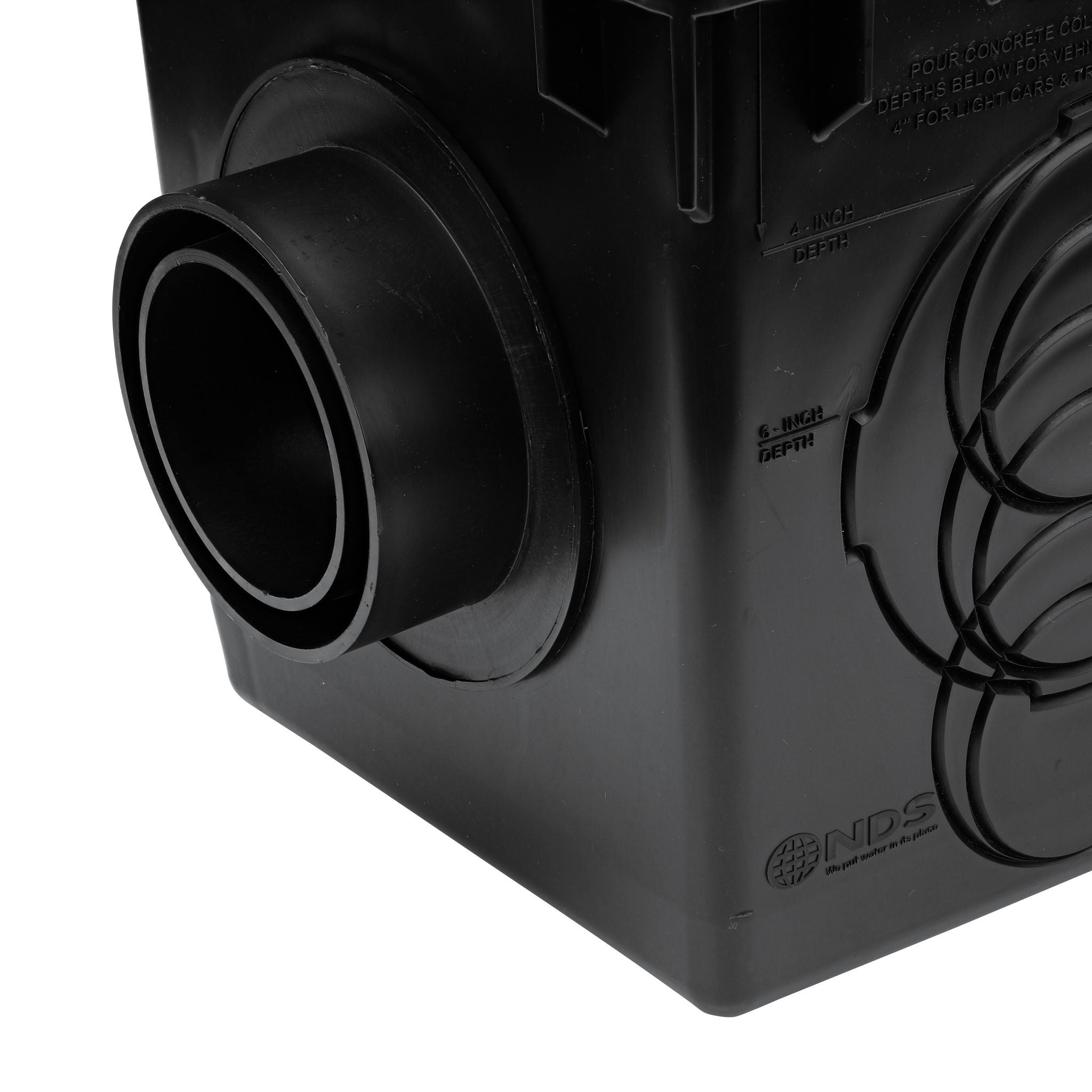

  • Keyed side opening locks outlet adapter in place for a soil-tight fit
  • Robust supporting ribs built underneath the grate seat for durability
  • Built-in sump area collects particles before they can enter the pipeline; makes it easier to clean
  • Available in 9, 12, 18, and 24 in. sizes
  • Grate options are available in a variety of colors, materials, and styles
  • The square catch basin is available in a kit which includes a basin, grate, outlet adapters, and plug

Applications

  • Collect stormwater runoff and standing water on your property and direct to drain pipes before it causes costly property damage

  • Ideal for draining surface water from lawns, landscaped areas, under downspouts, patios, and walkways

  • As part of a complete drainage system, the catch basin with grate captures surface water and directs it to connected drain pipes for proper release downstream

Installation & Maintenance

  • Lightweight and easy to install

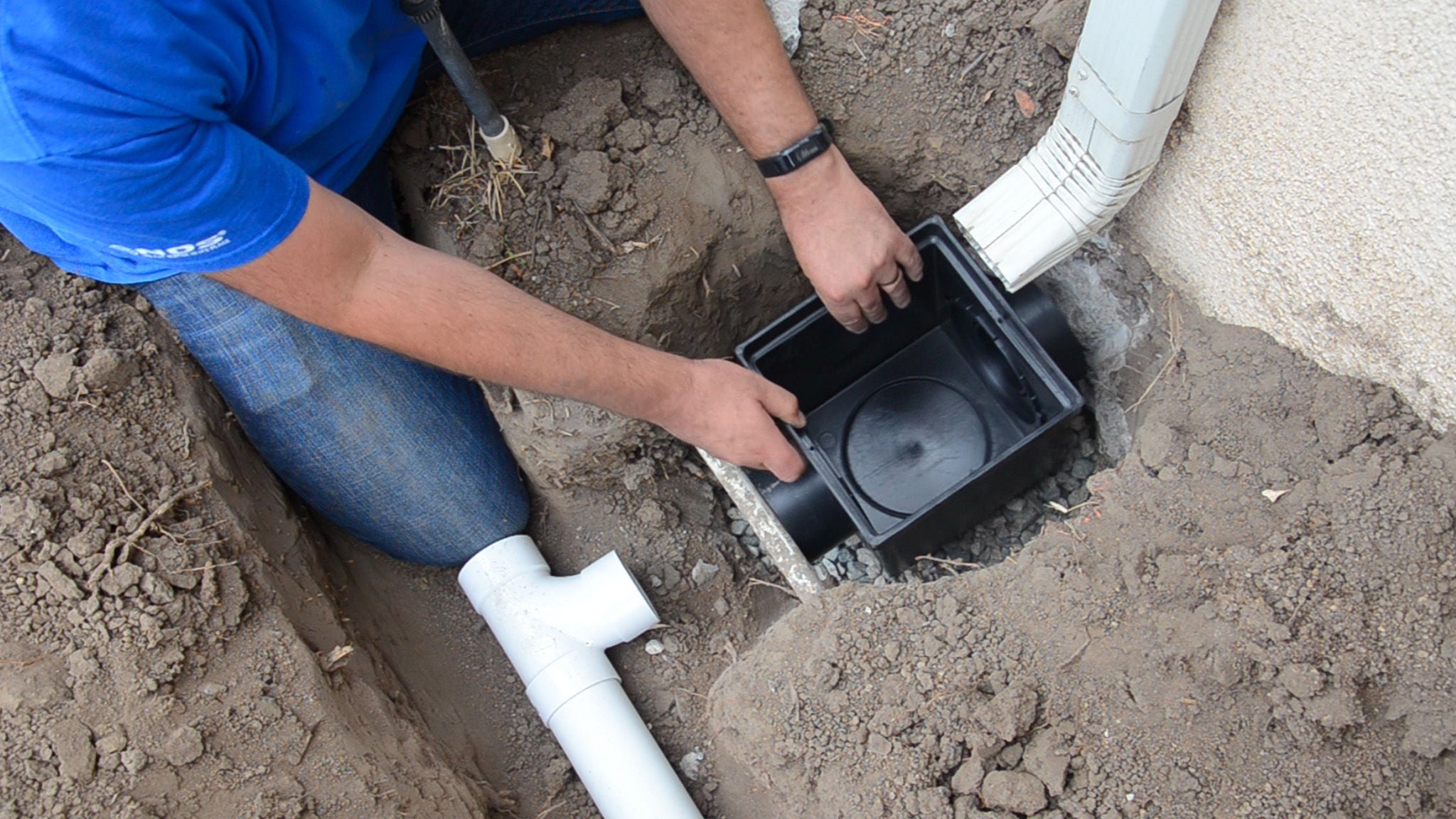

  • Catch basin works underground to capture excess stormwater from the surface and convey to drain pipe
  • Remove grate and clean sump area for easy maintenance

Materials & Sustainability

  • 9 and 12 in. catch basins are made of polypropylene (PP) treated with UV inhibitors
  • 18 and 24 in. catch basins are made of high-density polyethylene (HDPE) treated with UV inhibitors
  • Catch basins are made in the USA

Product Models

Part Number
Description
900BLKIT9 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin, Black Plastic Grate, 2 Outlet Adapters, 1 Outlet Plug
900GRKIT9 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin, Green Plastic Grate, 2 Outlet Adapters, 1 Outlet Plug
900MTLKIT9 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin, Galv. Steel Grate, 2 Outlet Adapters, 1 Outlet Plug
900DSGKIT9 in. Square Downspout Defender™ Kit with Black Plastic Catch Basin Drain Grate, Low-Profile Adapter, Outlet Adapter
9009 in. Square Catch Basin Drain with 2 Openings
900-49 in. Square Catch Basin Drain with 4 Openings
930GRKIT9 in. Square Low-Profile Adapter Drain Kit with Low-Profile Adapter, Green Plastic Square Grate, Outlet Adapter
9309 in. Square Low-Profile Adapter Drain, Connects to 3 in. to 8 in. Drain Pipes with Outlet Adapter (sold separately)
9329 in. Square Low-Profile Adapter Drain, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipe, and Fittings

Part Number
Description
900DSG9 in. Square Downspout Defender™ Catch Basin Drain Grate, Black Plastic
9819 in. Square Atrium Catch Basin Drain Grate, Black Plastic
9919 in. Square Atrium Catch Basin Drain Grate, Green Plastic
9809 in. Square Catch Basin Drain Grate, Black Plastic
9909 in. Square Catch Basin Drain Grate, Green Plastic
9999 in. Square Catch Basin Drain Grate, Gray Plastic
999S9 in. Square Catch Basin Drain Grate, Sand Plastic
930B9 in. Square Catch Basin Drain Grate, Brass
9139 in. Square Catch Basin Drain Grate, Ductile Iron
9159 in. Square Catch Basin Drain Grate, Galvanized Steel
900FF9 in. Square Catch Basin Drain Filter
9166 in. Riser for 9 in. Square Catch Basin Drain and Low-Profile Adapter Drain
9319 in. Square Deep-Housing Adapter, Connects to 4 in. Corrugated Drain Pipe

Part Number
Description
1200NGBKIT12 in. Square Adjustable Outlet Catch Basin Drain Kit with Catch Basin with 2 Open Sides, 2 Open Outlet Slides
1200BLKIT12 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin, Black Plastic Grate, 2 Outlet Adapters, 1 Outlet Plug
1200GRKIT12 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin, Green Plastic Grate, 2 Outlet Adapters, 1 Outlet Plug
1200DGGKITWH12 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin, Green Decorative Botanical Grate, 2 Outlet Adapters, 1 Plug
1200DGBLKITWH12 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin, Black Decorative Wave Grate, 2 Outlet Adapters, 1 Plug
1200MTLKIT12 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin, Galv. Steel Grate, 2 Outlet Adapters, 1 Outlet Plug
120012 in. Square Catch Basin Drain with 2 Openings
120312 in. Square Catch Basin Drain with 3 Openings
120412 in. Square Catch Basin Drain with 4 Openings
1200NGB12 in. Square Adjustable Outlet Catch Basin Drain with 2 Open Sides
1230ATBLKIT12 in. Low-Profile Adapter Drain Kit with Low-Profile Adapter, Black Plastic Atrium Grate, Outlet Adapter
1230GRKIT12 in. Low-Profile Adapter Drain Kit with Low-Profile Adapter, Green Plastic Grate, Outlet Adapter
122112 in. Square Low-Profile Adapter Drain, Connects to 8 in. Sewer and Drain Pipe
122212 in. Square Low-Profile Adapter Drain, Connects to 8 in. Drain Pipes
123012 in. Square Low-Profile Adapter Drain, Connects to 3 in. to 8 in. Drain Pipes with Outlet Adapter (sold separately)

Part Number
Description
1200DSG12 in. Square Downspout Defender™ Catch Basin Drain Grate, Black Plastic
128012 in. Square Atrium Catch Basin Drain Grate, Green Plastic
129012 in. Square Atrium Catch Basin Drain Grate, Black Plastic
121012 in. Square Catch Basin Drain Grate, Gray Plastic
121112 in. Square Catch Basin Drain Grate, Black Plastic
121212 in. Square Catch Basin Drain Grate, Green Plastic
1212S12 in. Square Catch Basin Drain Grate, Sand Plastic
1230B12 in. Square Catch Basin Drain Grate, Brass
121312 in. Square Catch Basin Drain Grate, Ductile Iron
121512 in. Square Catch Basin Drain Grate, Galvanized Steel
121812 in. Square Catch Basin Drain Grate, Decorative Botanical Design, Black Plastic
1218S12 in. Square Catch Basin Drain Grate, Decorative Botanical Design, Sand Plastic
1218GR12 in. Square Catch Basin Drain Grate, Decorative Botanical Design, Green Plastic
1218GY12 in. Square Catch Basin Drain Grate, Decorative Botanical Design, Gray Plastic
1218CI12 in. Square Catch Basin Drain Grate, Decorative Botanical Design, Cast Iron
122412 in. Square Catch Basin Drain Grate, Decorative Wave Design, Black Plastic
1224S12 in. Square Catch Basin Drain Grate, Decorative Wave Design, Sand Plastic
1224GR12 in. Square Catch Basin Drain Grate, Decorative Wave Design, Green Plastic
1224GY12 in. Square Catch Basin Drain Grate, Decorative Wave Design, Gray Plastic
1224CI12 in. Square Catch Basin Drain Grate, Decorative Wave Design, Cast Iron
1200FF12 in. Square Catch Basin Drain Filter
12166 in. Riser for 12 in. Square Catch Basin Drain and 12 in. Low-Profile Adapter Drain
121712 in. Riser with 2 Openings for 12 in. Catch Basin Drain and 12 in. Low-Profile Adapter Drain
122512 in. Square Sump Box
122012 in. Square Sump Box Cover

Part Number
Description
1882BLKIT18 in. Square Catch Basin Drain Kit with 2-Opening Basin, Black Plastic Grate, 2 Outlet Adapters, 2 Reducer Rings, Plug
1882GRKIT18 in. Square Catch Basin Drain Kit with 2-Opening Basin, Green Plastic Grate, 2 Outlet Adapters, 2 Reducer Rings, Plug
188218 in. Square Catch Basin Drain with 2 Openings
188418 in. Square Catch Basin Drain with 4 Openings
180018 in. Expandable Catch Basin Drain with 2 Openings
180418 in. Expandable Catch Basin Drain with 4 Openings
183018 in. Square Low-Profile Adapter Drain, Connects to 3 in. to 8 in. Drain Pipes with Outlet Adapter (sold separately)

Part Number
Description
188118 in. Square Atrium Catch Basin Drain Grate, Black Plastic
189118 in. Square Atrium Catch Basin Drain Grate, Green Plastic
181018 in. Square Catch Basin Drain Grate, Gray Plastic
181118 in. Square Catch Basin Drain Grate, Black Plastic
181218 in. Square Catch Basin Drain Grate, Green Plastic
181318 in. Square Catch Basin Drain Grate, Cast Iron
181518 in. Square Catch Basin Drain Grate, Galvanized Steel
18168 in. Riser for 18 in. Square Catch Basin Drain & Low-Profile Adapter Drain

Part Number
Description
2400BLKIT24 in. Square Catch Basin Drain Kit with 2-Opening Basin, Black Plastic Grate, 3 Outlet Adapters, 2 Reducer Rings, & Plug
2400GRKIT24 in. Square Catch Basin Drain Kit with 2-Opening Basin, Green Plastic Grate, 3 Outlet Adapters, 2 Reducer Rings, & Plug
240024 in. Square Catch Basin Drain with 2 Openings
240424 in. Square Catch Basin Drain with 4 Openings

Part Number
Description
241124 in. Square Catch Basin Drain Grate, Black Plastic
241224 in. Square Catch Basin Drain Grate, Green Plastic
241324 in. Square Catch Basin Drain Grate, Cast Iron
241524 in. Square Catch Basin Drain Grate, Galvanized Steel
24188 in. Riser for 24 in. Square Catch Basin Drain
