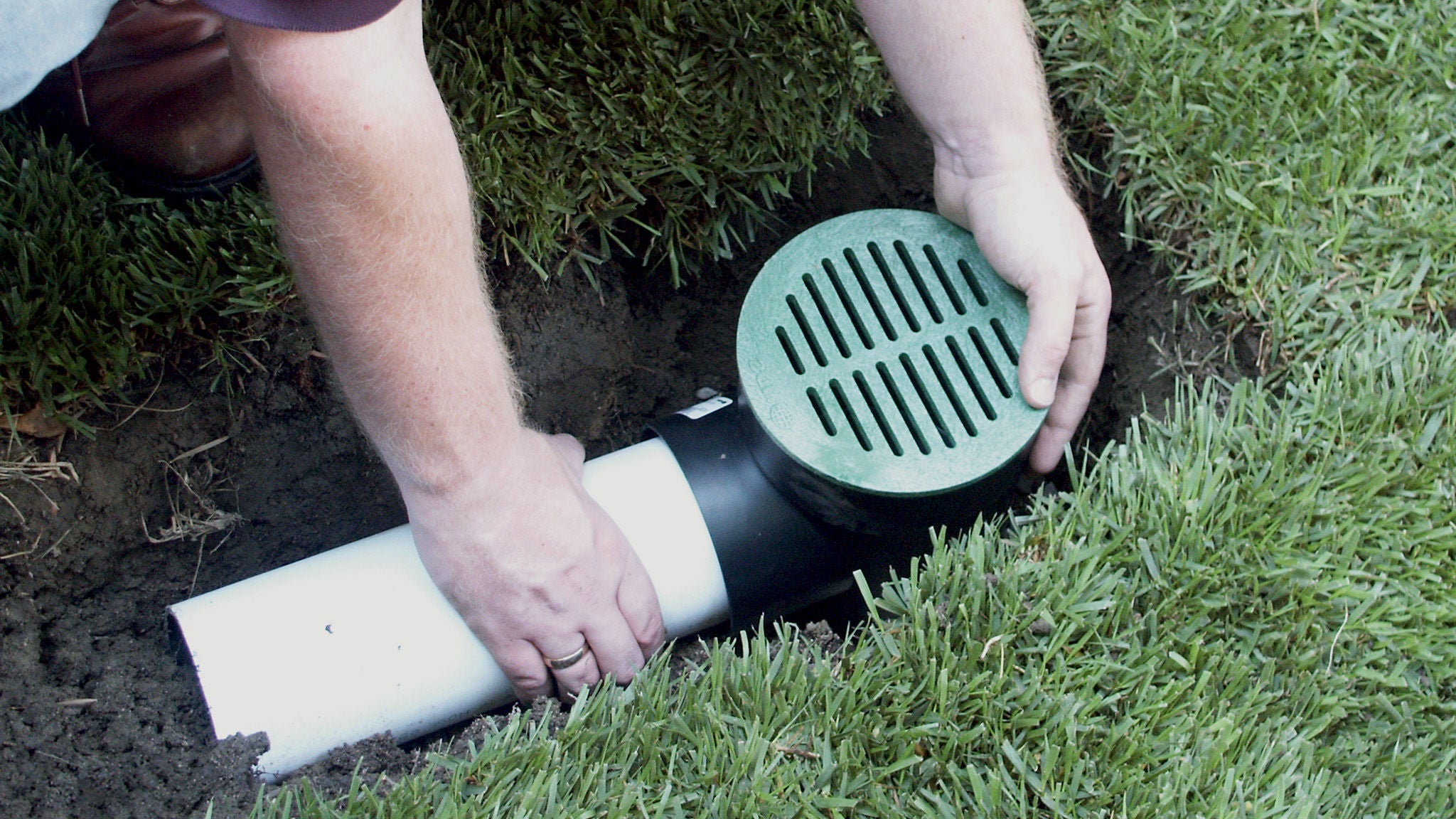

Round Spee-D Catch Basin being installed

NDS Round Spee-D Catch Basins

The round Spee-D® catch basin works with a drain grate to collect water from flood-prone areas such as lawns, landscaped areas, patios, and walkways, and direct the water to drain pipe. Also works with the 6 in. pop-up emitter to create a high-capacity emitter.

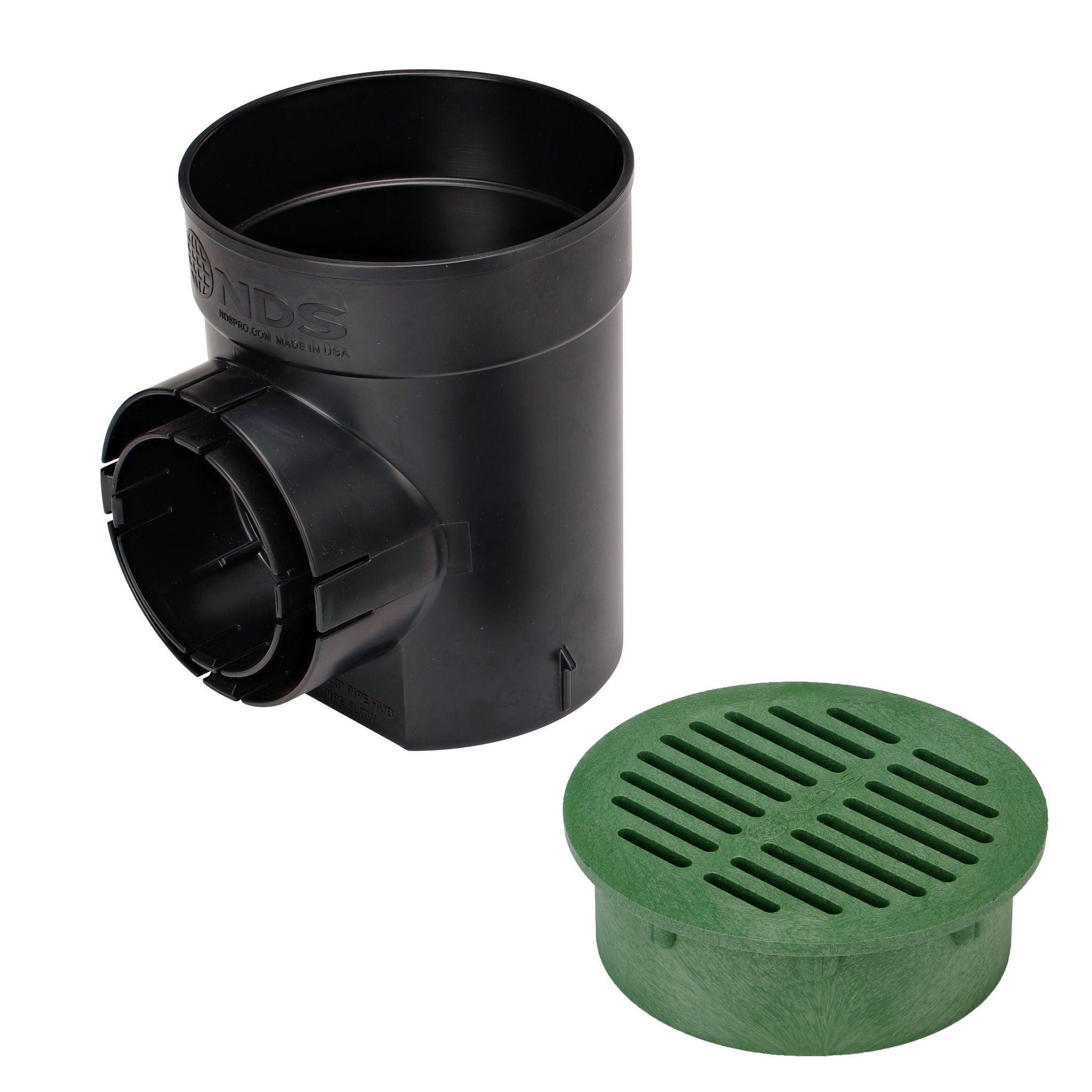

6 in. Spee-D basin and grate

Key Features

  • Outlet features locking flex tabs for a secure connection to pipe--no tape or glue required
  • Built-in sump area collects particles before they can enter the pipeline; makes it easier to clean
  • Use the catch basin alone or to start a series of connected basins positioned downstream
  • The 6 in. round Spee-D catch basin is available with 1, 2, 3, or 4 outlets
  • Grate options available in a variety of colors and materials
  • The 6 in. round Spee-D catch basin is available in a kit which includes a one-outlet basin and grate

Applications

  • Collect stormwater runoff and standing water on your property and direct to drain pipes before it causes costly property damage

  • Ideal for capturing excess water from lawns, downspouts, and landscaping

  • As part of a complete drainage system, the catch basin with grate captures surface water and directs it to connected drain pipes for proper release downstream

Installation & Maintenance

  • Lightweight and easy to install

  • Catch basin works underground to capture excess stormwater from the surface and convey to drain pipe

  • Remove grate and clean sump area

Materials & Sustainability

  • Catch basin is made of high-impact polystyrene (HIPS) treated with UV inhibitors

  • Catch basins are made in the USA

Product Models

Part Number
Description
101ATBLKIT6 in. Round Spee-D® Catch Basin Drain Kit with 1-Outlet Catch Basin & Black Plastic Atrium Grate
101GRKIT6 in. Round Spee-D® Catch Basin Drain Kit with 1-Outlet Catch Basin & Green Plastic Round Grate
101SQGRKIT6 in. Round Spee-D® Catch Basin Drain Kit with 1-Outlet Catch Basin, Green Plastic Square Grate
1016 in. Round Spee-D® Catch Basin Drain, 1 Outlet
2016 in. Round Spee-D® Catch Basin Drain, 2 Outlets
2506 in. Round Spee-D® Catch Basin Drain, 2 Outlets Offset at 90°
3006 in. Round Spee-D® Catch Basin Drain, 3 Outlets
3506 in. Round Spee-D® Catch Basin Drain, 4 Outlets

Part Number
Description
906 in. Atrium Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Black Plastic
90B6 in. Atrium Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Brass
816 in. Atrium Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Gray Plastic
806 in. Atrium Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Green Plastic
90S6 in. Atrium Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Sand Plastic
D66 in. Round Duracast™ Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes, Ductile Iron
919PB6 in. Round Grate with Collar, Connects to 6 in. Spee-D® Basin, 6 in. Drain Fittings, Polished Brass and Plastic
918B6 in. Round Grate with Collar, Connects to 6 in. Spee-D® Basin, 6 in. Drain Fittings, Satin Brass and Plastic
406 in. Round Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Black Plastic
606 in. Round Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Gray Plastic
506 in. Round Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Green Plastic
60S6 in. Round Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Sand Plastic
922PB6 in. Square Grate with Low-Profile Adapter Drain, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipe and Fittings, Pol. Brass and Plastic
921B6 in. Square Grate with Low-Profile Adapter Drain, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipe and Fittings, Satin Brass and Plastic
7717 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Black Plastic
7737 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Gray Plastic
7727 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Green Plastic
773S7 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Sand Plastic
108 in. Round Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Black Plastic
308 in. Round Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Gray Plastic
208 in. Round Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Green Plastic
30S8 in. Round Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Sand Plastic
8818 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Black Plastic
8828 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Green Plastic
883S8 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Sand Plastic
9709 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Black Plastic
9609 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Gray Plastic
9509 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Green Plastic
970S9 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Sand Plastic
101R6 in. Riser for 6 in. Round Spee-D® Catch Basin Drain
