Clamp-All Couplings

Clamp-All® Couplings and Torque Wrenches

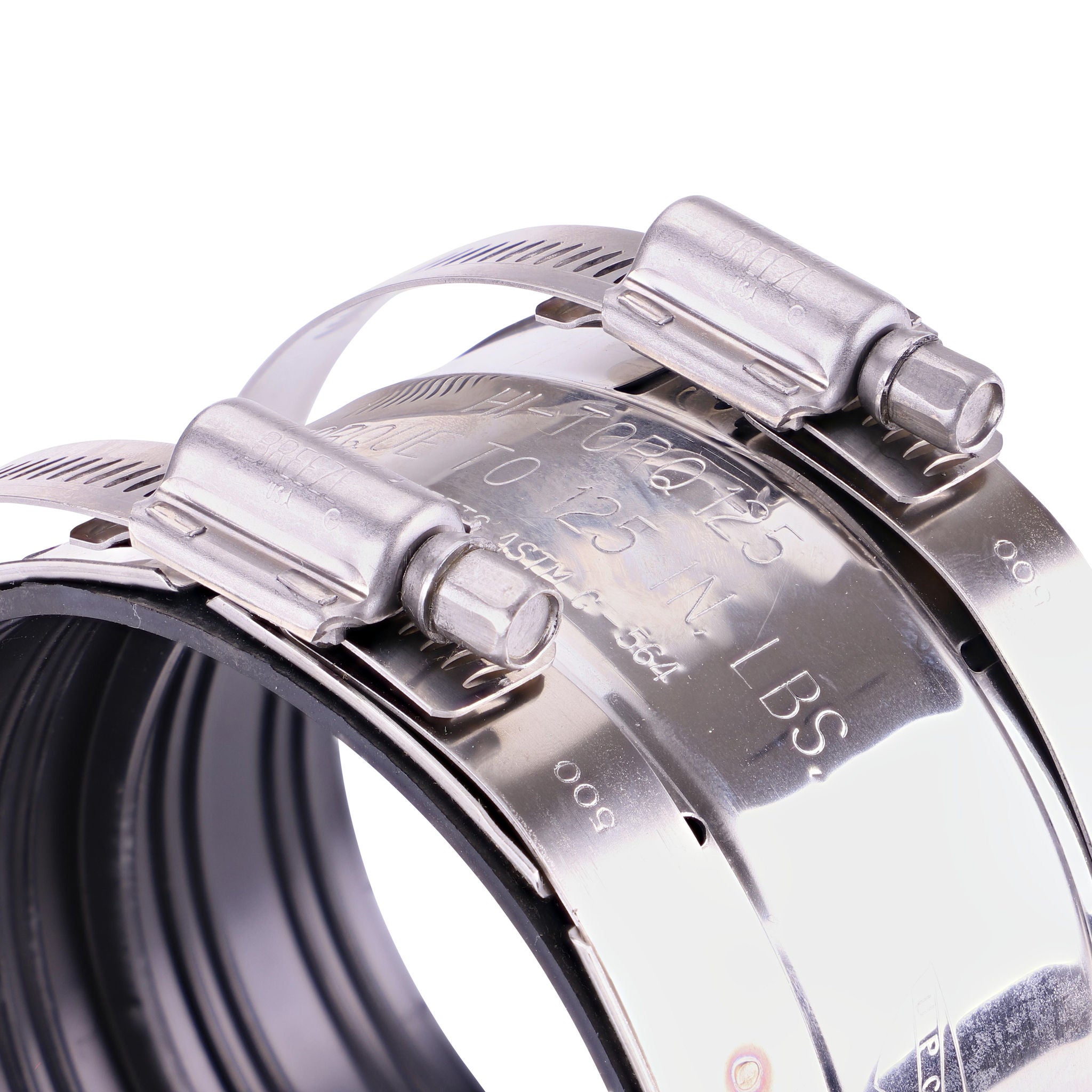

Clamp-All® Hi-Torq hubless coupling connects pipes in a high-risk DWV pipe system, and withstands high thrusts or blockage pressure on mismatched pipe/fitting diameters. Torque wrenches tighten the worm drive screws on coupling.
Clamp-All Couplings

Key Features

  • Coupling has a slotted shield design to compensate for mismatched pipe/fitting diameters; maintains alignment
  • Coupling has a unique flexible rigidity™ to withstand high thrusts or blockage pressure on mismatched pipes and fittings
  • Slotted shield of coupling is made of 28 gauge 304 18-8 chromium nickel stainless steel; corrosion resistant
  • Neoprene gasket features two sets of sealing beads on each sealing sleeve for easy installation and stability
  • Hubless coupling has worm drive clamps made of 304 stainless steel with screws made of 305 stainless steel

Applications

  • Ideal for storm and sanitary DWV systems in high-risk environments – schools, hospitals, museums or wherever a 15 PSI rating is required

  • Suitable for waste and vent piping applications

  • As part of a complete flow management system, the hubless coupling connects two cast iron pipe and fittings up to 15 PSI, together to allow water to flow through while preventing leaks

Installation

  1. Coupling slides onto connection point between two DWV pipes;
  2. Tighten screws using a torque wrench (sold separately) to a full 125 lbs. or 80 lbs. of torque to secure in place;
  3. Interlocking design centers sleeve within housing for easy installation and stability


Maintenance

  • Hubless coupling performance issues can indicate damage; replace as needed

Materials & Sustainability

  • Hubless coupling is made of 24 gauge 304 18-8 chromium nickel stainless steel

  • Gasket is made of neoprene; worm drive screws are made of 305 stainless steel

  • Made in USA of domestic materials

  • Onsite flow management protects pipe systems from leaks which can lead to corrosion of pipes, property damage, and issues with the flow system

Product Models

Part Number
Description
81015Clamp-All® Hi-Torq 80 Hubless Coupling, 1-1/2 in., Pack of 80
81020Clamp-All® Hi-Torq 80 Hubless Coupling, 2 in., Pack of 64
81030Clamp-All® Hi-Torq 80 Hubless Coupling, 3 in., Pack of 36
81040Clamp-All® Hi-Torq 80 Hubless Coupling, 4 in., Pack of 36
81050Clamp-All® Hi-Torq 80 Hubless Coupling, 5 in., Pack of 12
81060Clamp-All® Hi-Torq 80 Hubless Coupling, 6 in., Pack of 12
81080Clamp-All® Hi-Torq 80 Hubless Coupling, 8 in., Pack of 8
81100Clamp-All® Hi-Torq 80 Hubless Coupling, 10 in., Pack of 8

10015Clamp-All® Hi-Torq 125 Hubless Coupling, 1-1/2 in., Pack of 80
10020Clamp-All® Hi-Torq 125 Hubless Coupling, 2 in., Pack of 64
10030Clamp-All® Hi-Torq 125 Hubless Coupling, 3 in., Pack of 36
10050Clamp-All® Hi-Torq 125 Hubless Coupling, 4 in., Pack of 12
10040Clamp-All® Hi-Torq 125 Hubless Coupling, 4 in., Pack of 36
10060Clamp-All® Hi-Torq 125 Hubless Coupling, 6 in., Pack of 12
10080Clamp-All® Hi-Torq 125 Hubless Coupling, 8 in., Pack of 8
10100Clamp-All® Hi-Torq 125 Hubless Coupling, 10 in., Pack of 8
10120Clamp-All® Hi-Torq 125 Hubless Coupling, 12 in., Pack of 8
10150Clamp-All® Hi-Torq 125 Hubless Coupling, 15 in., Pack of 4

99080Clamp-All® Hi-Torq 80 Wrench
99125Clamp-All® Hi-Torq 125 Wrench
