Hydro-Flo™ Micro Spray Jet, 360-Degree Fan Spray, 0.04 in. Nozzle, 10-32 Threaded Inlet, 100-Pack

SKU:

TF 436
NDS Hydro-Flo™ Micro Spray Jet with a 360-Degree Fan Spray and .04 in. Nozzle (NDS TF 436)
Alternate view showing the close up of the nozzle of the NDS Hydro-Flo™ Micro Spray Jet with a 360-Degree Fan Spray and .04 in. Nozzle (NDS TF 436)
NDS Hydro-Flo™ Micro Spray Jet with a 360-Degree Fan Spray and .04 in. Nozzle (NDS TF 436)
Alternate view showing the close up of the nozzle of the NDS Hydro-Flo™ Micro Spray Jet with a 360-Degree Fan Spray and .04 in. Nozzle (NDS TF 436)

Get low-volume, overhead irrigation with the Hydro-Flo™ Micro Spray Jet. The fan spray jet emits water in a 360°, full-circle pattern, and features a 0.04 in. nozzle that discharges water at up to 14.0 GPH and radius of up to 3.0 ft. (at 30 PSI). The jet has a 10-32 threaded inlet which attaches onto a rigid riser. Connect riser to 1/4 in. distribution tubing (A220 and A250) and elevate with a stake. Riser, tubing, and stake sold separately. The Hydro-Flo Jet is made of polyethylene treated with UV inhibitors to prevent fading and cracking.

Where to Buy Find a Contractor
Applications
  • Releases water with a fan spray in a full-circle pattern (360°) for low-volume, overhead irrigation
  • Ideal for watering groundcover, flower beds, planting beds, vegetable gardens, and plants which prefer some humidity
  • As part of a complete drip irrigation system, the jet-spray delivers water gradually; with a non-pressure compensating emitter, expect varying water flow based on length of tubing or elevation, with higher flow closer to the water source
Features
  • Fan spray jet releases water in a full-circle pattern (360°)
  • Nozzle size of 0.04 discharges water up to 14.0 GPH with radius of up to 3.0 ft. (at 30 PSI)
  • Designed to work with standard drip irrigation water pressures up to 35 PSI

Literature & Resources

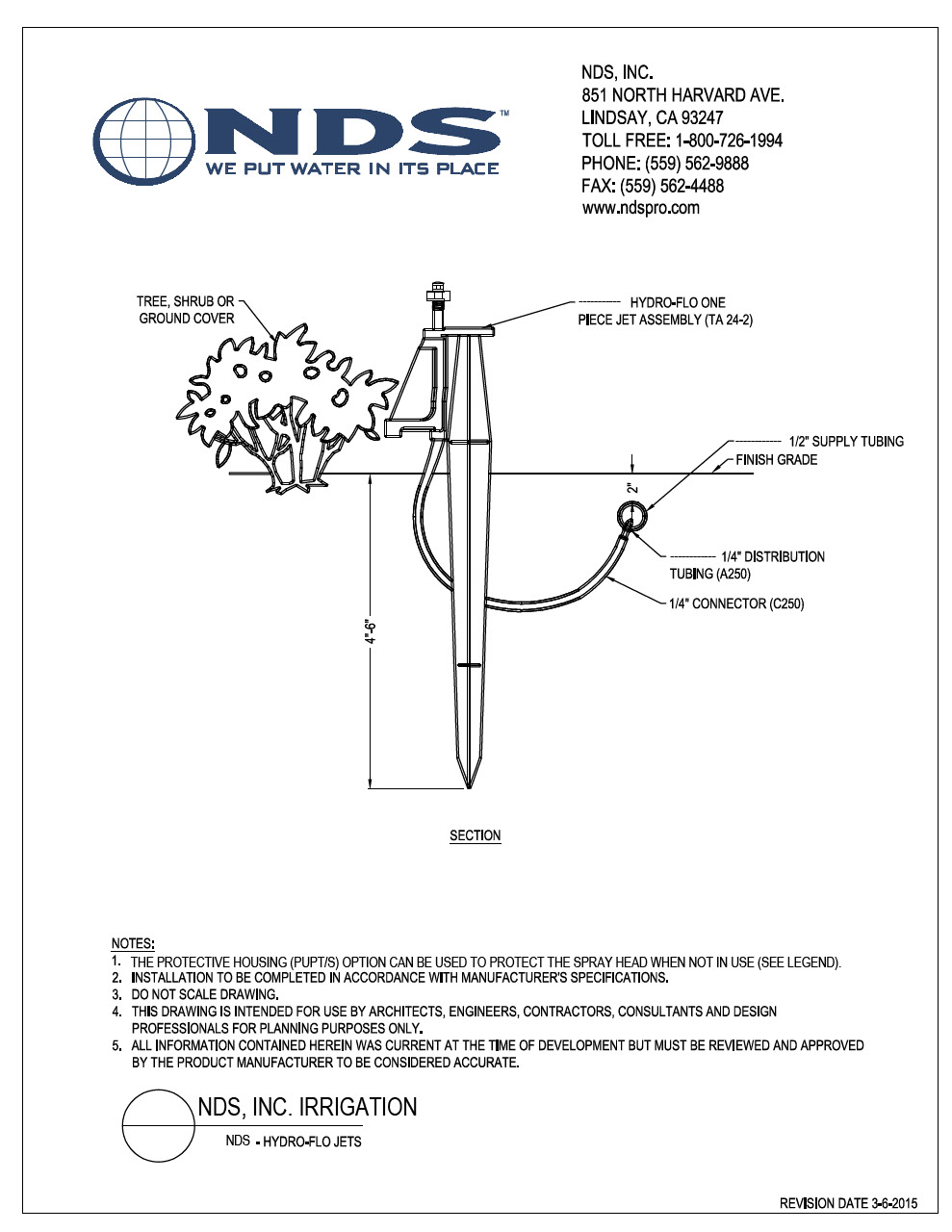

NDS Hydro-Flo Micro Spray Jets Installation Detail
Installation Detail

NDS Hydro-Flo Micro Spray Jets Installation Detail

.pdf
