1/4 in. Dura Flo™ JR Dripline, 0.5 GPH Non-Pressure Compensating Emitters, 6 in. Spacing, Black Polyethylene, 100 ft.

SKU:

SFJR-BL-06-01
The NDS 100 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-01) comes packaged with a branded tag and tape straps for easy storage and handling
Without the packaging tag on the NDS 100 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-01)
Closeup of the end of the NDS 100 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-01) with packaging tag on
Closeup of the end of the NDS 100 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-01) without packaging tag on
Closeup of a 6 in. dripline strip of the NDS 100 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-01)
The NDS 100 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-01) comes packaged with a branded tag and tape straps for easy storage and handling
Without the packaging tag on the NDS 100 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-01)
Closeup of the end of the NDS 100 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-01) with packaging tag on
Closeup of the end of the NDS 100 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-01) without packaging tag on
Closeup of a 6 in. dripline strip of the NDS 100 ft. 1/4 in. Dura Flo™ JR Dripline with 6 in. spaced 0.5 GPH Non-Pressure Compensating Emitters (NDS SFJR-BL-06-01)

Release water along the entire line with the 1/4 in. Dura Flo™ JR Dripline (0.170 in. ID X 0.250 in. OD). The durable tubing encases 0.5 GPH non-pressure compensating (Non-PC) emitters spaced 6 in. apart. The emitters feature a labyrinth design to flush out sediments that can lead to clogging. This dripline, also known as a dripperline, is made of polyethylene and the emitters are made of polyethylene and silicone, all treated with UV inhibitors. Connect, set, and you’re ready to water.

Where to Buy Find a Contractor
Applications
  • Delivers water along the entire line to keep the soil moist and hydrate the plants' root zones
  • Ideal for watering closely spaced plants, hedges, vegetable gardens, planter boxes, and new plantings of ground cover; its flexibility also works as a watering ring for large pots and containers, and makes loops around large trees
  • As part of a complete drip irrigation system, the dripline delivers water along the entire line; with non-pressure compensating emitters, expect varying water flow based on length of tubing or elevation, with higher flow closer to the water source
Features
  • 0.5 GPH non-pressure compensating emitters are spaced 6 in. apart along the length of dripline
  • N/A
  • N/A

Literature & Resources

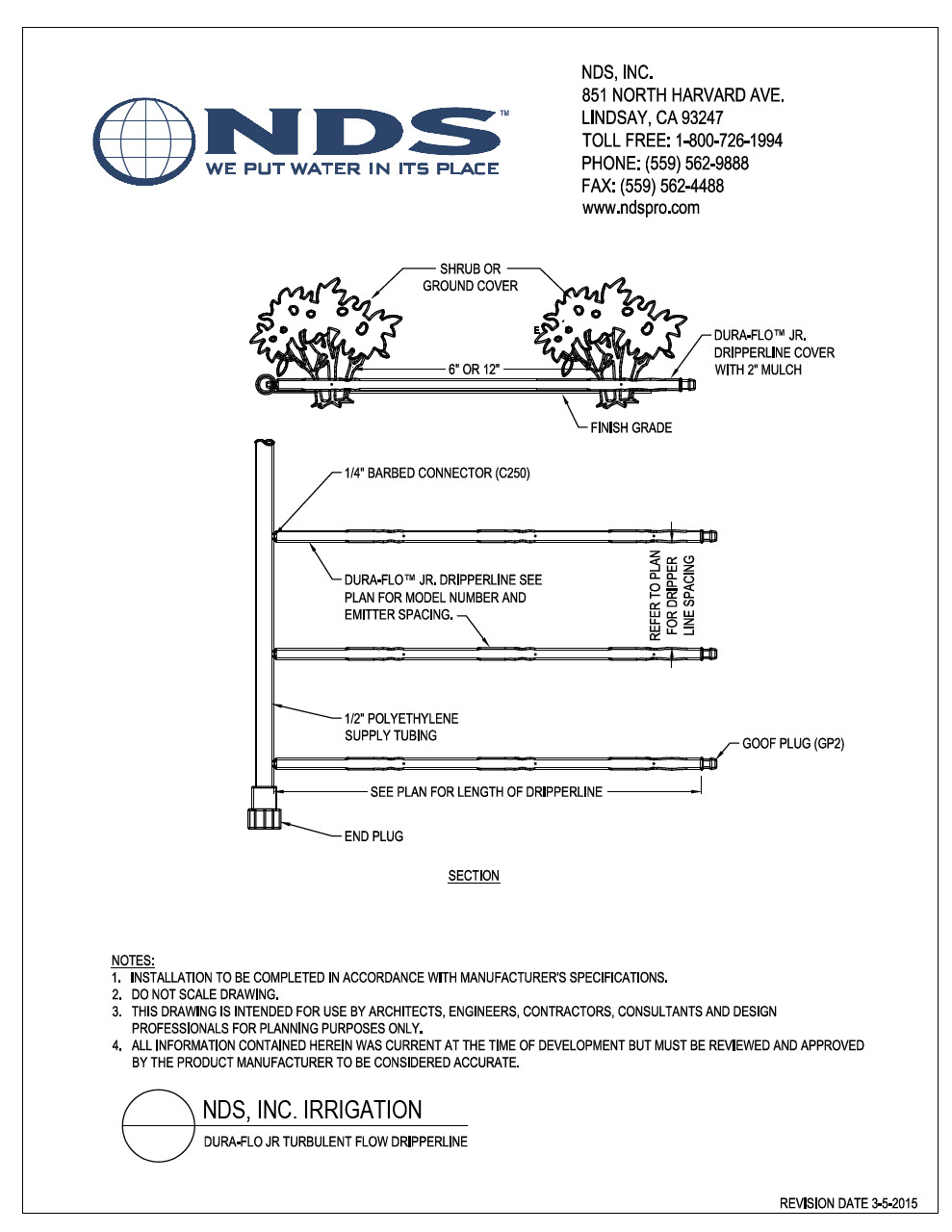

NDS 1/4 in. Dura Flo JR Dripline Installation Detail
Installation Detail

NDS 1/4 in. Dura Flo JR Dripline Installation Detail

.pdf
