By NORMA Group

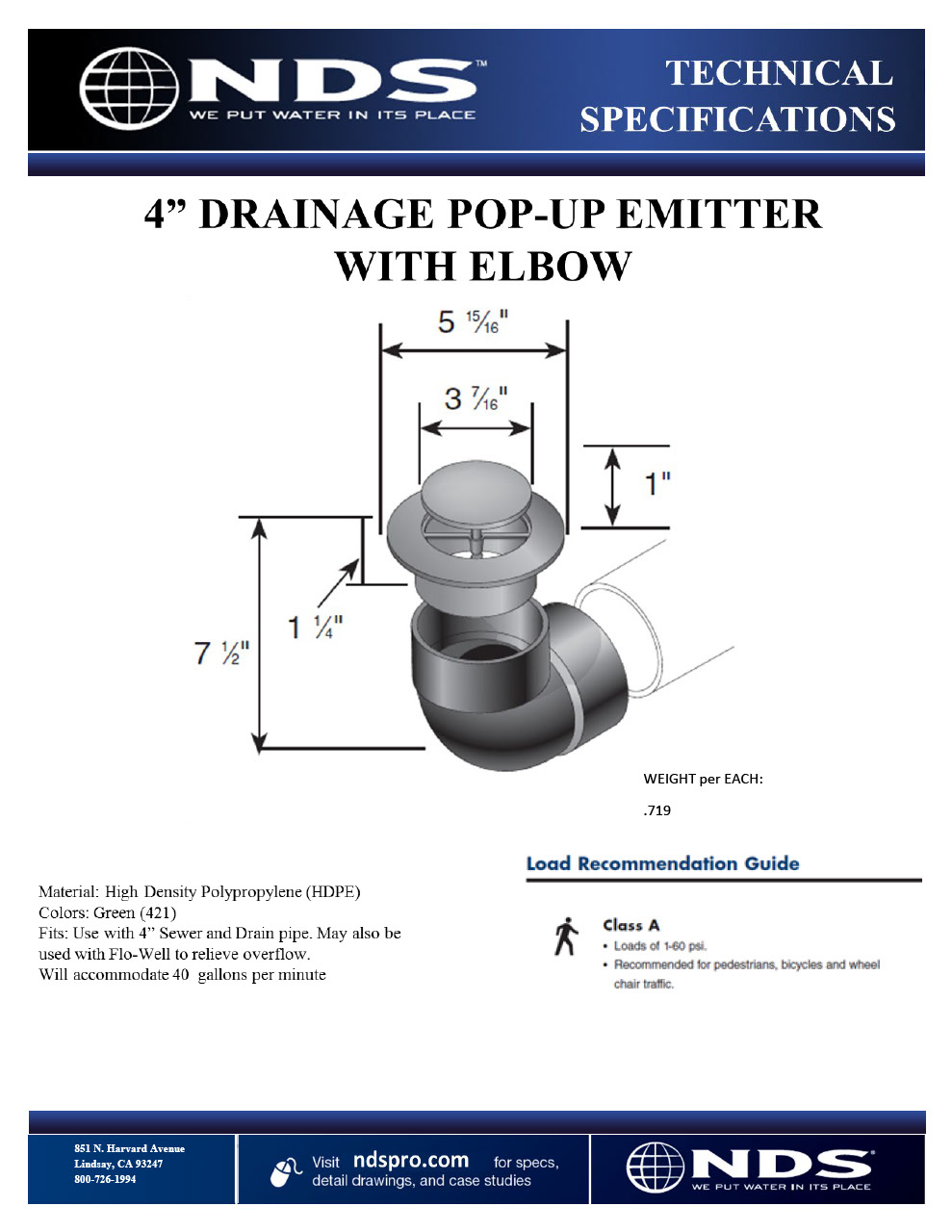

Pop-Up Drainage Emitter with Elbow for 4 in. Drain Pipes, Spring Loaded, Green Plastic

SKU:

421

Hero shot of the Pop-Up Drainage Emitter with Elbow for 4 in. Drain Pipes, Spring Loaded, Green Plastic (NDS 421)

Bottom View of the 3 in. & 4 in. Pop-Up Drainage Emitter (NDS 420, NDS 430, NDS 421, NDS 321)

The 4 in. Pop-Up Drainage Emitter with Elbow (NDS 421) spring-loaded cap pops up as high as 1 in.

The 4 in. Pop-Up Drainage Emitter with Elbow (NDS 421) lays flat when closed

Top raises up as excess water releases with the 3 in. Pop-Up Drainage Emitter with Elbow (NDS 421)

Connect the 4 in. Pop-Up Drainage Emitter Elbow (NDS 421) to 4 inch triple wall pipe

Weep hole in elbow fitting allows leftover water to exit in the Pop-Up Drainage Emitter with Elbow (NDS 322*, NDS 422*, NDS 321, NDS 421); PVC 90° elbow, connects 4 in. Sewer and Drain pipes, Hub X Hub connection

The 4 in. Pop-Up Drainage Emitter connects to the 4 in. Elbow (NDS 421) for a secure fit

Closeup View of the spring-loaded design partially open on the Pop-Up Drainage Emitter (NDS 420, NDS 430, NDS 421, NDS 321)

Closeup View of the spring-loaded design fully opened on the Pop-Up Drainage Emitter (NDS 420, NDS 430, NDS 421, NDS 321)

Every drainage system needs a point of release for collected water. With the Pop-Up Drainage Emitter, water is discharged safely when installed away from structures, erosion-prone landscapes, and poor drainage areas. The spring-loaded cap pops up to 1 in. high when water pressure builds to allow water to be dispersed at up to 56 GPM, then automatically retracts once the flow diminishes. Cap stays closed when not in use to prevent debris and rodents from entering and potentially clogging the drainage system. Weep hole at bottom of elbow drains out water left in pipes to prevent stagnation or freezing in cold weather. The Pop-Up Emitter with Elbow connects to 4 in. sewer and drain pipe and 4 in. triple-wall pipe for a soil-tight. fit. Cap and cover made of high-density polyethylene (HDPE); elbow is made of polyvinyl chloride (PVC)

Where to Buy Find a Contractor

Applications

Provides a downstream point of release for water collected upstream
Install the Pop-Up Drainage Emitter at the lowest point in the drainage system; place in areas away from buildings, landscapes, and poor drainage areas
Works with a complete drainage system to release collected stormwater runoff and standing water to a discharge point before it causes costly property damage

Features

Spring-loaded cap on cover pops up as high as 1 in. once water pressure builds and closes as flow diminishes; when not in use, cap stays closed to keep debris and rodents out of drain
Flange design prevents grass from growing over the cover
Small weep hole in elbow drains out any water in the pipe to prevent stagnation or freezing in cold weather
