Pop-Up Drainage Emitter for 3 in. & 4 in. Drain Fittings, Spring Loaded, Green Plastic

SKU:

420

Release excess water with the Pop-Up Drainage Emitter for 3 in. & 4 in. Drain Fittings, Spring Loaded, Green Plastic (NDS 420)

Bottom View of the 3 in. & 4 in. Pop-Up Drainage Emitter (NDS 420, NDS 430, NDS 421, NDS 321)

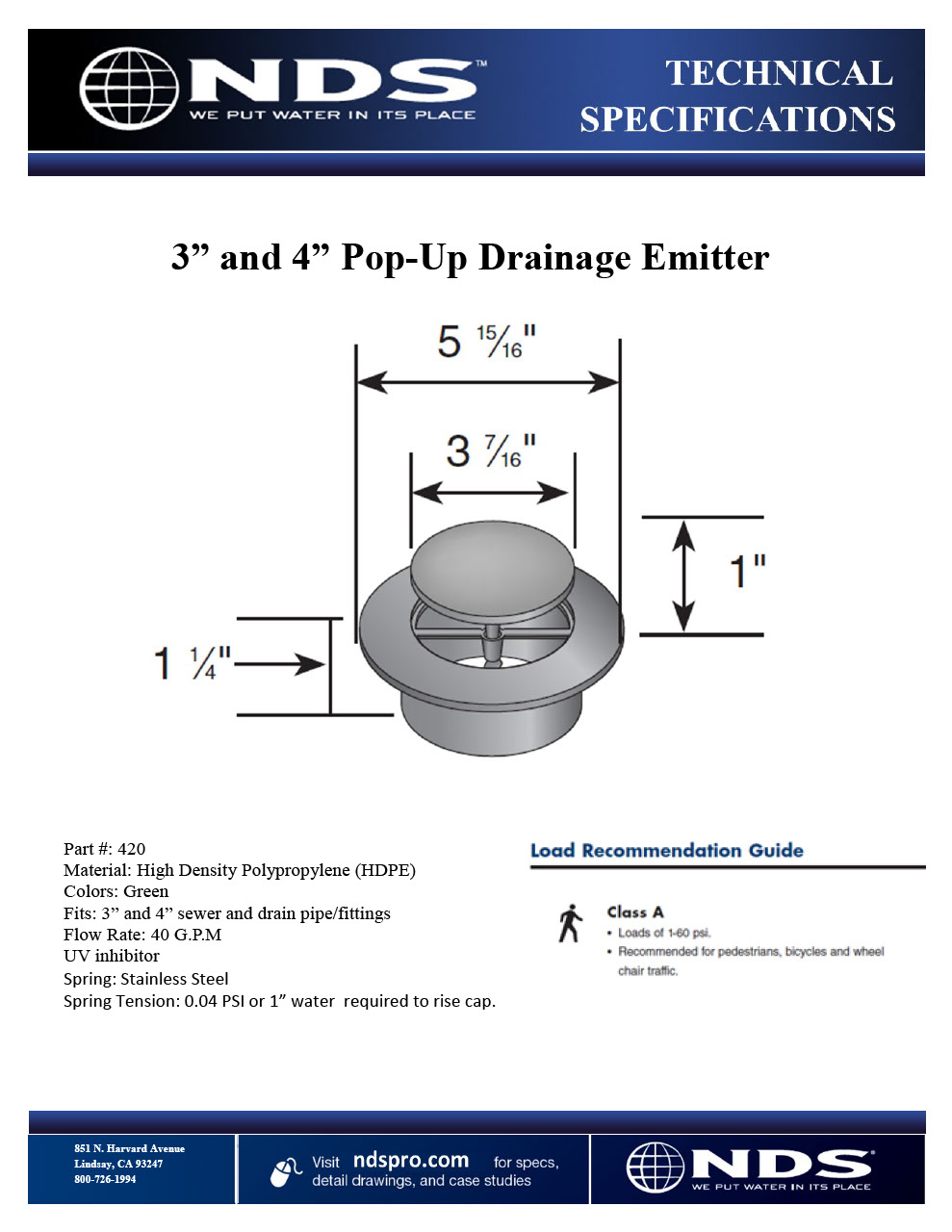

The 3 in. & 4 in. Pop-Up Drainage Emitter (NDS 420) spring-loaded cap pops up as high as 1 in.

Layflat design for the Pop-Up Drainage Emitter for 3 in. & 4 in. Drain Fittings, Green Plastic (NDS 420)

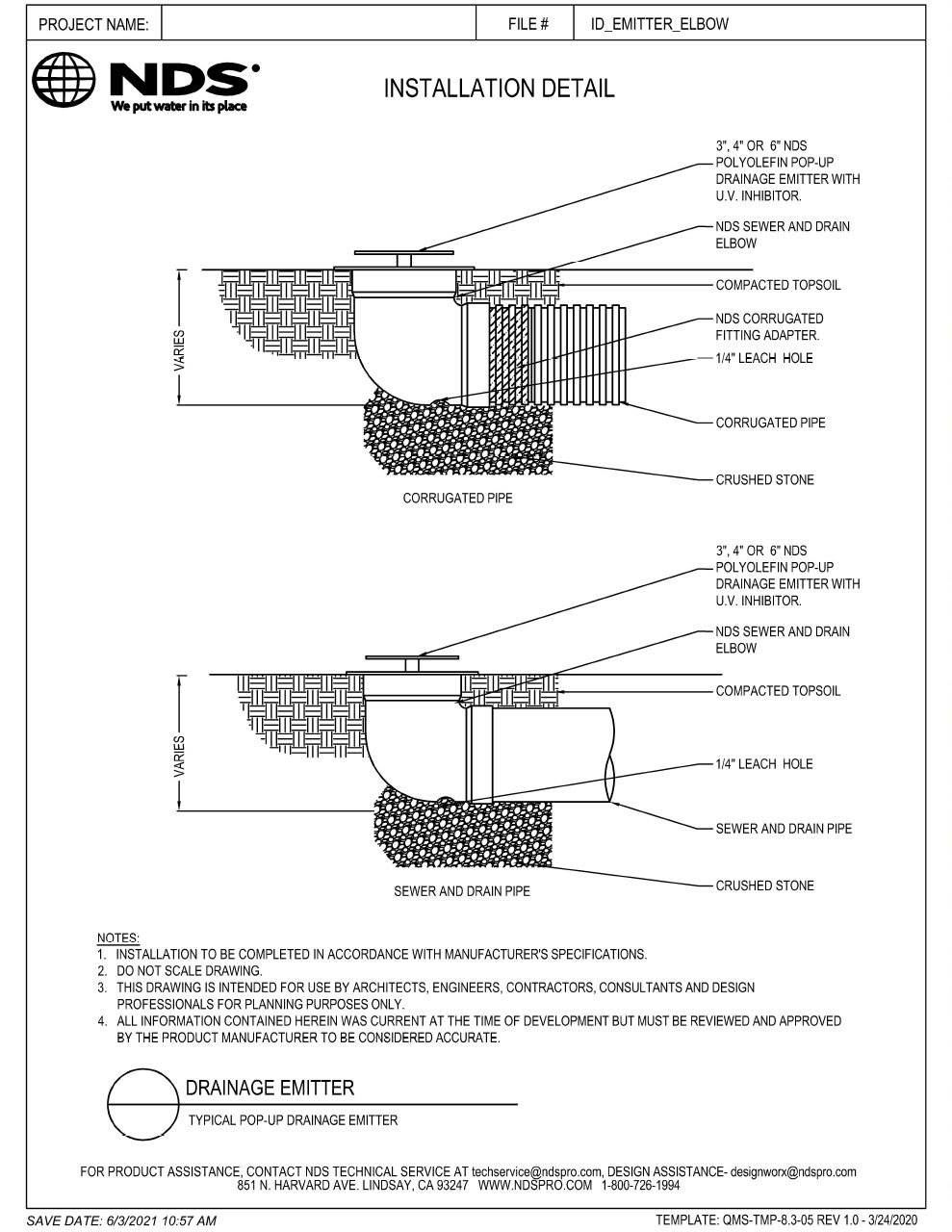

Install the green Pop-Up Drainage Emitter for 3 in. & 4 in. Drain Fittings (NDS 420C*, NDS 420) directly to a 3 in. sewer and drain fitting; fits outside the connection point

Install the green Pop-Up Drainage Emitter for 3 in. & 4 in. Drain Fittings directly to a 4 in. sewer and drain fitting; fits inside the fitting connection point

The NDS 6 in. Round Spee-D® Catch Basin Drain (NDS 101) works with the NDS Pop-Up Drainage Emitter (NDS 420)

Closeup View of the Pop-Up Drainage Emitter for 3 in. & 4 in. Drain Fittings, Green Plastic (NDS 420) in the raised position

Closeup View of the spring-loaded design partially open on the Pop-Up Drainage Emitter (NDS 420, NDS 430, NDS 421, NDS 321)

Closeup View of the spring-loaded design fully opened on the Pop-Up Drainage Emitter (NDS 420, NDS 430, NDS 421, NDS 321)

The Pop-Up Drainage Emitter discharges stormwater captured upstream by catch basins, channel drains, and other drainage solutions and carried downstream with connected drain pipe. The spring-loaded emitter cap pops up to 1 in. high to release water when pressure builds, disperses water at up to 56 GPM, then automatically retracts once flow diminishes. Cap stays closed when not in use to prevent debris and rodents from getting into the drainage system. The Pop-Up Emitter connects to 3 in. & 4 in. sewer and drain fittings which connect to sewer and drain pipe and triple-wall pipe. Cap and cover made of high-density polyethylene (HDPE)

Where to Buy Find a Contractor

Applications

Provides a downstream point of release for water collected upstream
Install the Pop-Up Drainage Emitter at the lowest point in the drainage system; place in areas away from buildings, landscapes, and poor drainage areas
Works with a complete drainage system to release collected stormwater runoff and standing water to a discharge point before it causes costly property damage

Features

Spring-loaded cap on cover pops up as high as 1 in. once water pressure builds and closes as flow diminishes; when not in use, cap stays closed to keep debris and rodents out of drain
Flange design prevents grass from growing over the cover
Flat profile design reduces trip hazard posed by open drain; closed position keeps emitter flush to the ground and safe from lawn mower blades
