Applications
- Channel drains and trench drains prevent mildew growth, concrete staining, and costly damage by capturing and conveying excess water for proper release downstream
- Mini Channel Drain collects light flows of water from pool & spa areas, concrete & paver patios, tennis courts, walkways, and driveways, and directs it to drain pipes for proper release downstream
- Works with Mini Channel Drain components; part of the NDS Profile Channel series
Features

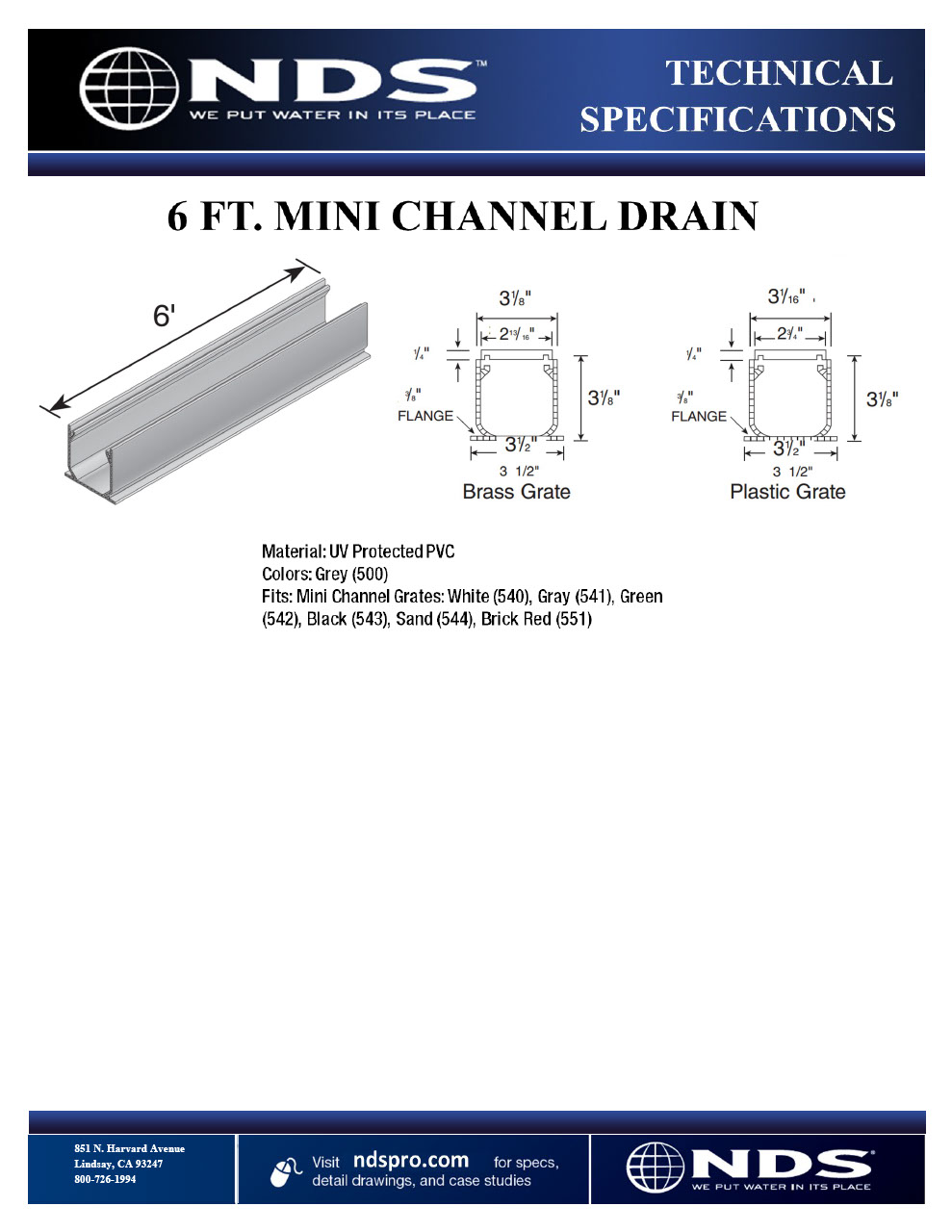

- Mini Channel Drains are 3-1/16 in. wide, 3-1/8 in. high, and 6 ft. long; length can be cut to size with a saw
- Patented flying buttress design provides load-bearing support from both sides as well as underneath the channel
- Unique flanges on the bottom of the channel provide an anchoring lip for straight installation and prevents floating
Literature & Resources
Videos
Submit Your Design
NDS DesignWorx® Team is there to help with preparation of submittal drawings and specs. Call us at 888-825-4716 or click below.
Request a Quote
Need to submit a bid package? Let NDS Project Specialists eliminate the guesswork and accurately quote your drainage project for you.
