Possible Solution
Water in Planter Area
We recommend using a catch basin system to safely and efficiently drain water away from your landscape planter areas.
Low
Medium
High
Products in this Solution:

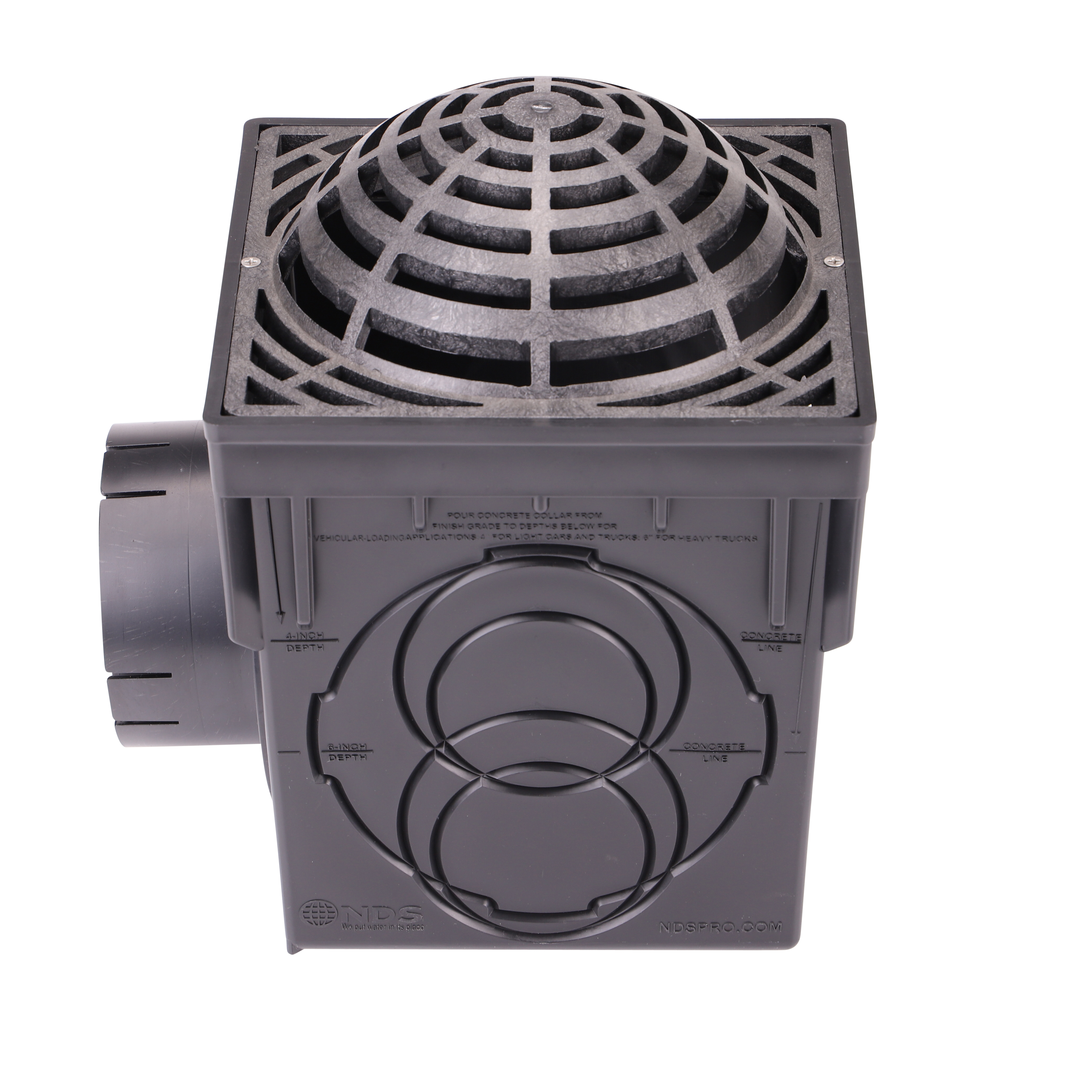

Catch Basin with Atrium Grate
Square basin that collects surface water from rain gutter downspouts or other landcape areas.

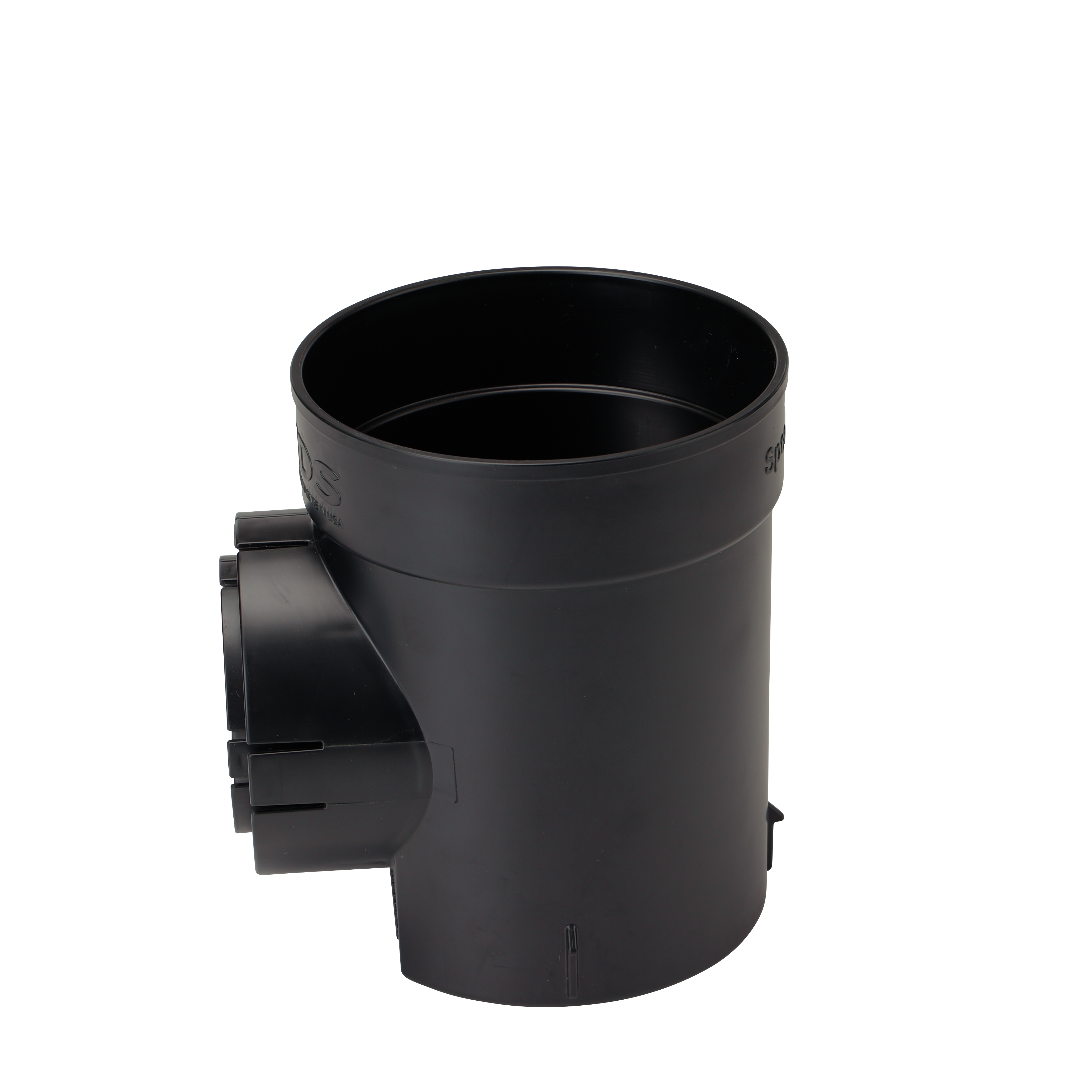

Spee-D Basin with Atrium Grate
Round basin that collects surface water with molded-in connection for drain pipe.
Atrium Grate
Allows drainage in landscape areas that would otherwise be clogged by bark or mulch.
Generic Pipe
Connects the components of the drainage system and carries the water to a safe release point.
Flo-Well with Surface Inlet
Underground dry well that temporarily holds water until the water can soak into the underlying soil.
EZ-Drain French Drain
Gravel-free alternative to a traditional French drain used for collection, retention, and dispersion of water.
Pop-Up Emitter
Overflow release point to all excess water to drain from a drainage system.

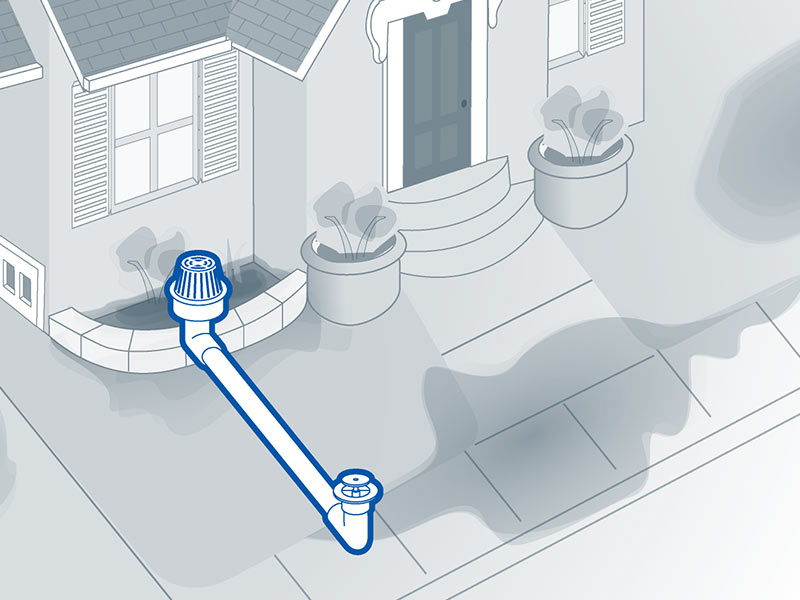

Water in Planter Area - Low Capacity Option
Low Capacity
9 Tools Needed
5-7 Hours
Total man hours
$75 - $95
Estimated Material Costs
We took a shot at estimating the amount of time and labor involved in this project for the average 40-year-old male hand-digging all trenches and holes. You can shorten your installation time significantly by using a trencher or hiring help to do the digging.
Refer to drainage calculators on NDSPro.com for pipe & system sizing here
- Landscape planters are often located next to the home's exterior walls.
- Overwatering, water from rain gutter downspouts or improper grading can lead to water puddling in the planter area.
- Installing a catch basin in the planter will prevent this water from draining to your homes foundation.
- Catch basins easily connect to drain pipes where the water can drain to a safe location.

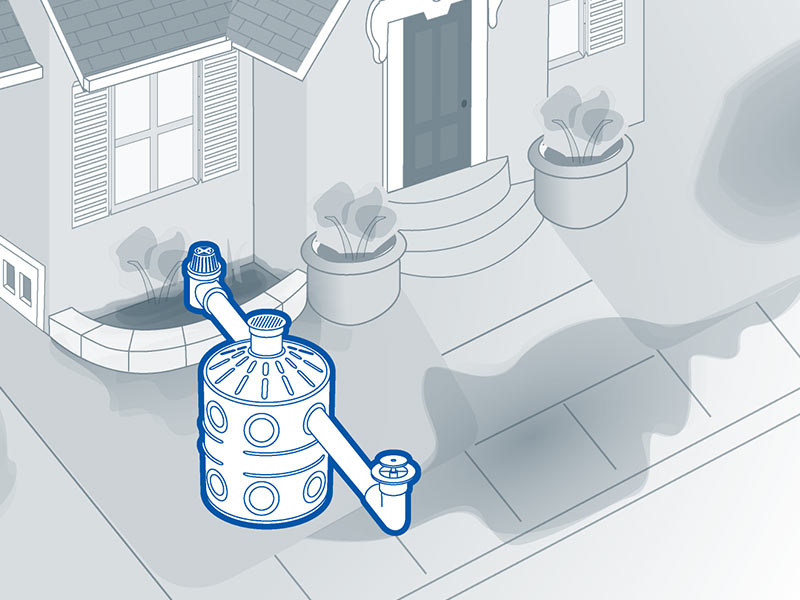

Water in Planter Area - Medium Capacity Option
Medium Capacity
9 Tools Needed
8-10 Hours
Total man hours
$75- $95
Estimated Material Costs
We took a shot at estimating the amount of time and labor involved in this project for the average 40-year-old male hand-digging all trenches and holes. You can shorten your installation time significantly by using a trencher or hiring help to do the digging.
Refer to drainage calculators on NDSPro.com for pipe & system sizing here
- Landscape planters are often located next to the home's exterior walls.
- Overwatering, water from rain gutter downspouts or improper grading can lead to water puddling in the planter area.
- Installing a catch basin in the planter will prevent this water from draining to your homes foundation.
- Catch basins easily connect to drain pipes where the water can drain to a safe location.

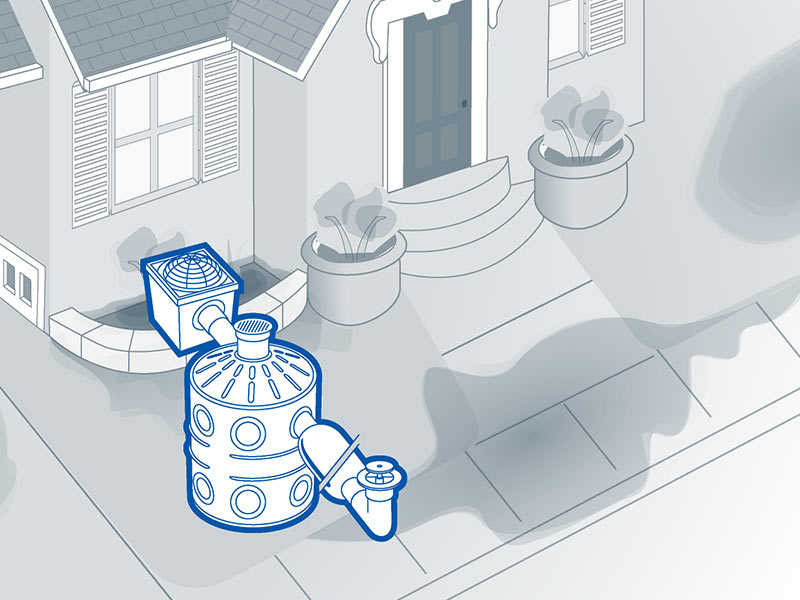

Water in Planter Area - High Capacity Option
High Capacity
9 Tools Needed
11-13 Hours
Total man hours
$370-$450
Estimated Material Costs
We took a shot at estimating the amount of time and labor involved in this project for the average 40-year-old male hand-digging all trenches and holes. You can shorten your installation time significantly by using a trencher or hiring help to do the digging.
Refer to drainage calculators on NDSPro.com for pipe & system sizing here
- Landscape planters are often located next to the home's exterior walls.
- Overwatering, water from rain gutter downspouts or improper grading can lead to water puddling in the planter area.
- Installing a catch basin in the planter will prevent this water from draining to your homes foundation.
- Catch basins easily connect to drain pipes where the water can drain to a safe location.
