Downspout Runoff (Low): Installation Instructions
- Dig holes and trench for pipe and catch basin.
- Dry fit (no glue) the entire drainage system from the catch basin to the pop-up emitter.
- Measure and cut all pipe to necessary lengths.
- After completing each step, glue parts together if a water tight connection is required.
TIP: If installing the drain in an existing concrete area, a wet concrete saw will be required to cut the concrete prior to installation.

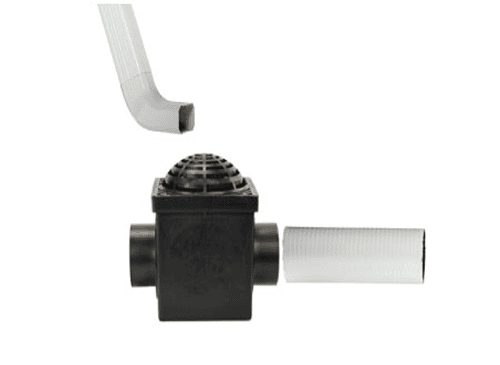

- Before beginning your installation, check if your downspout has a downspout elbow connected. If not, connect a downspout elbow to your downspout. The Spee-D Basin should be installed in the ground directly beneath the downspout elbow to catch all water draining from the downspout.

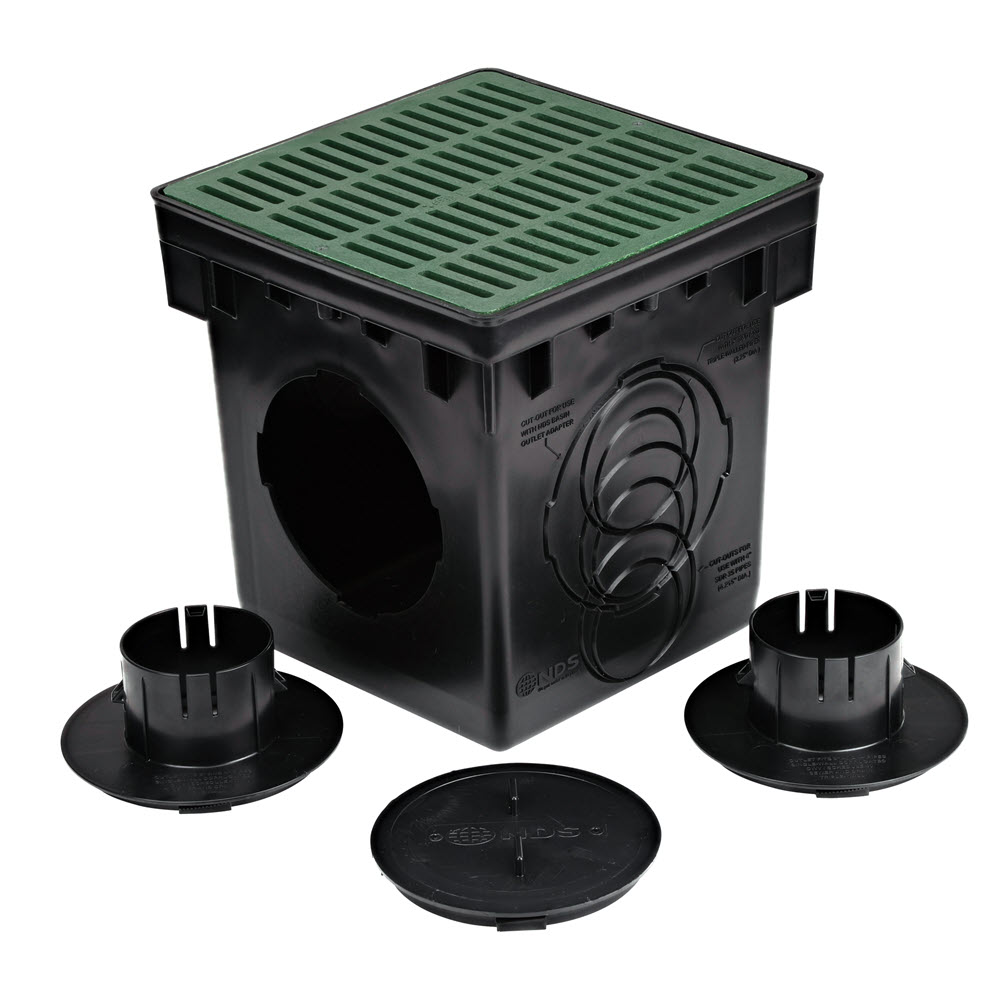

- Connect the drain pipe to the Spee-D Basin. The Spee-D Basin can be used to clean out any debris that may enter the system and also serves as an inlet for surface water.
- Once installation is complete, place the grate on the Spee-D Basin. A 6” SDR-35 drain pipe can be inserted into the Spee-D basin to raise the elevation of the atrium grate. The Atrium grate will also fit into the“bell” or “hub” end of the pipe or on a 6” sewer and drain coupler.
TIP: Dig the hole for the basin an additional 6” deeper than needed. Place 6” of gravel in the bottom of the hole. Drill small holes in the bottom of the basin to prevent standing water in the bottom of the basin, eliminating a potential mosquito breeding area.

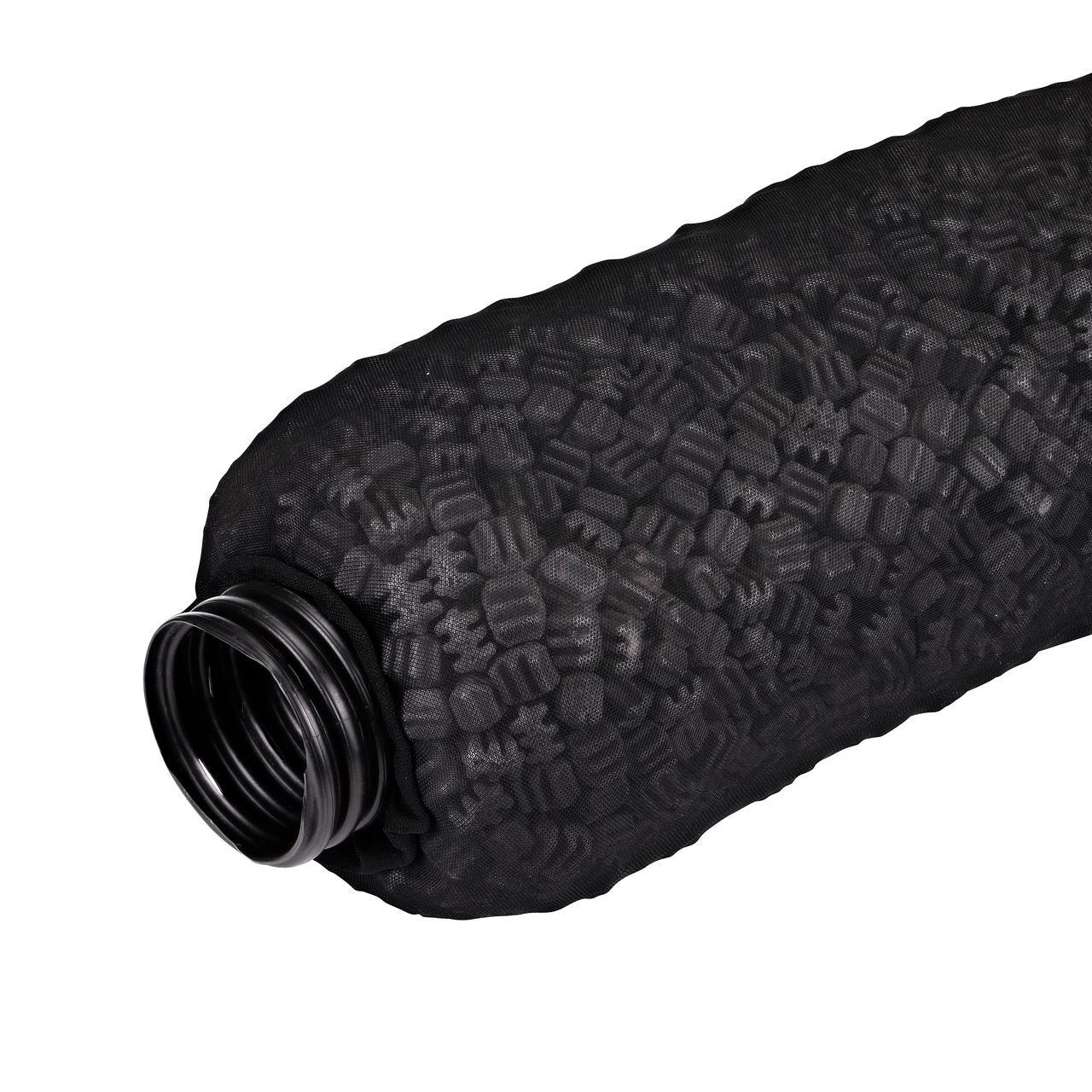

- Using a Corrugated Pipe Adapter, connect the EZ-Drain to an elbow with a weep hole. The elbow should be installed with the weep hole on the horizontal side of the elbow.
- Slide the Pop-up Emitter onto the elbow. An additional length of pipe can be used to bring Pop-up emitter to the surface.
TIP: To avoid damaging your Pop-Up Emitter with your lawnmower, raise the cutting level of the blades or avoid passing the mower over the Pop-Up Emitter.
- Backfill and replace any grass or plants that were removed.
TIP: DO NOT BACKFILL WITH SOIL WITH HIGH CLAY CONTENT.
Water must be able to easily pass through the backfilled soil.
